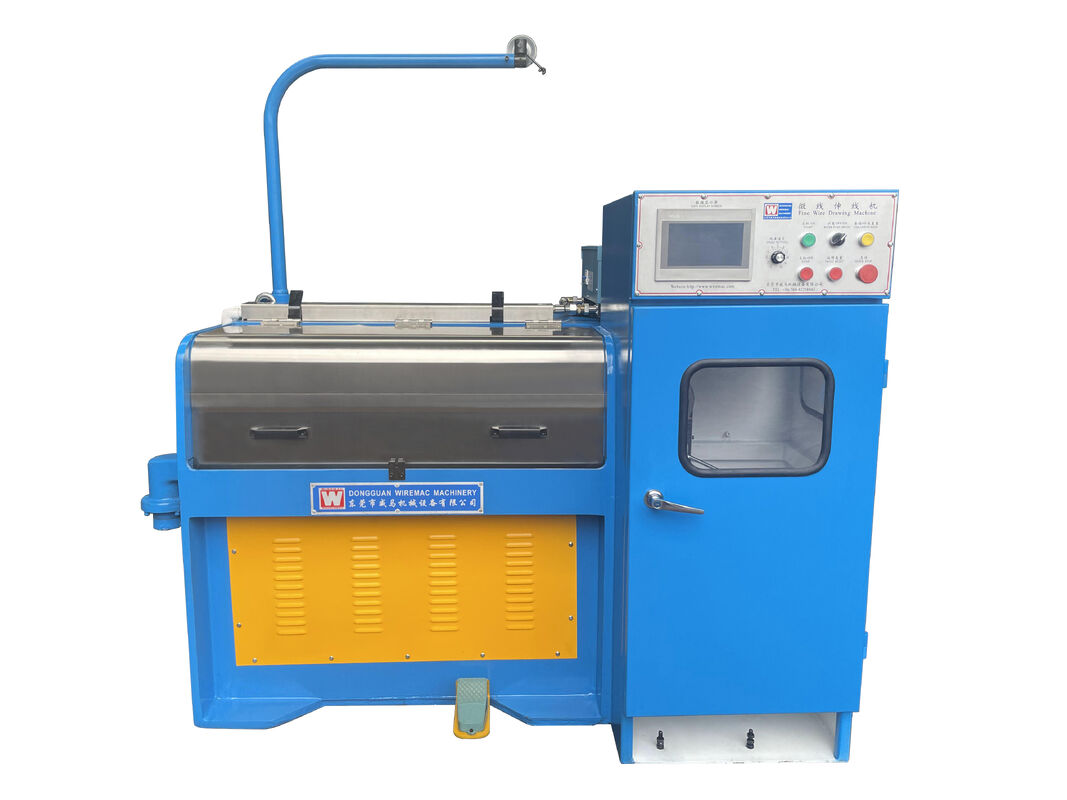

Micro Wire Drawing Machine

1. Input wire: Φ0.15 – 0.4 mm
2. Output wire: Φ0.05 - 0.12 mm
3. Production speed: Max 2000m/min
4. Capstan Diameter: Φ 120mm
5. Number of dies: 24
6. Wire drawing lubrication: Spray type
7. Outer diameter of dies: Φ25mm *8- 13mm (thickness)
8. Mechanical elongation: By the dies from the 1st to 19th, 10%, By the 20th die, 6.5%.
9. Main motor power: 5.5 kW-4P AC motor
10. Take-up motor power: 4kw-4P AC motor
11. Take-up control: Double frequency conversion automatic tension control
12. Take-up Capacity: 50kg, Max
13. Take-up reel: Φ200-300mm, Max
14. Brake: Electromagnetic brake
15. Supply voltage: 380V AC, 50Hz, 3-phase
16. Power consumption: 3 - 9 kW
17. Machine dimensions: L2000 x W1350 x H1650 mm
18. Machine weight: 2000 kg

1. Pay-off stand
2. Drawing machine
3. Take-up
4. Electrical control part

1. Electric control components: Imported electric control components with high reliability to ensure steady operation of the machine.
2. Supply voltage: 380V AC, 50Hz, 3-phase
3. Tension control: A special-purpose tension control inverter is used to ensure steady tension so as to improve the surface quality of the wire.
4. Power control: Dual-inverter-drive is used to reduce mechanical energy loss so that energy saving and reduced power consumption are achieved.
5. Automatic stop: This function includes automatic stop with full reel, automatic braking at wire breakage, braking at traverse overshoot and automatic braking at abnormal operation of the speed regulator, motor, etc.
6. Wire drawing: Slip type continuous wire drawing with four horizontal shafts.
7. Power control: The drawing motor has a capacity of 5.5kW AC and the take-up motor 4kW AC. A frequency conversion speed regulator with stepless speed regulation is used to control the power. The present line speed can be displayed automatically on the line meter.
8. Drive: Brushed part of the flat belt drive.

Coating:Paint-spraying according to the color required by the Buyer after anti-rust treatment or sky blue.
