Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: 24DHA19
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Plywood Case
Delivery Time: 20-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Month
Inlet Diameter: |
0.80 To 1.20 MM |
Outlet Diameter: |
0.08 To 0.32 MM |
Dies: |
24 |
Max. Speed: |
2200 M/min |
Final Capstan: |
206 MM |
Take Up Capacity: |
60 KG Max |
Machined Imension: |
L3100 X W1200 X H2000 MM |
Machine Weight: |
3000 KGS |
Inlet Diameter: |
0.80 To 1.20 MM |
Outlet Diameter: |
0.08 To 0.32 MM |
Dies: |
24 |
Max. Speed: |
2200 M/min |
Final Capstan: |
206 MM |
Take Up Capacity: |
60 KG Max |
Machined Imension: |
L3100 X W1200 X H2000 MM |
Machine Weight: |
3000 KGS |
Cone Type Fine Wire Drawing Machine From China Manufacturer
Introduction
For the working problem of the die, we can know from the section diagram provided by the sample of the die supplier that the internal structure of the die is mainly divided into six areas: inlet area, lubrication area, compression area, sizing area, safety angle and outlet area. The most important thing is the yield extrusion stress in the compression area and the friction force in the sizing area. The drawing stress when passing through the die is determined by the yield stress, compression ratio, working area angle, material friction coefficient and post tensile stress of copper-clad steel itself. The yield stress of copper clad steel itself is also based on the addition principle, which is obtained by accumulating the yield stress of copper and steel according to the contribution ratio.
Finally, the wire drawing is completed through the tower wheel on the equipment. As mentioned earlier, sliding wire drawing basically depends on sliding friction, that is, the movement speed of copper-clad steel on the tower wheel is less than the linear rotation speed of the tower wheel, so it is always in a relaxed state at the incoming end (the back tension is 0). On the contrary, if the incoming end is not tight, it will increase the back tension, thus increasing the front tension, which is easy to lead to wire breakage. The final result is that the elongation coefficient of the wire passing through the wire drawing die should be greater than the gradient of the adjacent tower pulley, expressed as μ/ε> 1. In this way, during the drawing process, the wire is tightly wound on the tower wheel and moves forward synchronously, and sometimes loosened and slipped. Of course, this will wear the surface of the tower wheel and increase the power loss.
The ratio of the linear speed of tower wheel rotation to the speed of wire rod during drawing is called sliding coefficient; The difference between the linear speed of tower wheel rotation and the speed of wire rod during drawing is the absolute sliding amount; The ratio of absolute sliding amount to the linear speed of tower wheel rotation is called sliding rate; The cumulative sliding coefficient is the multiple of the sliding coefficients of each pass, and the cumulative sliding rate is 1-1 / cumulative sliding coefficient.
Technical Parameters
| Machine Specs | 24DHA19 | ||||||
| Inlet wire | 0.80 to 1.20 mm | ||||||
| Outlet wire | 0.08 to 0.32 mm | ||||||
| Speed | Max. 2200 m/min | ||||||
| No. of dies | 24 | ||||||
| Main motor power | 15 KW - 4P | ||||||
| Brake | Pneumatic brake | ||||||
| Mechanical elongation | 15%(1st - 23rd) + 8.7%(24th) | ||||||
| Take-up reel | 300 mm / 400 mm | ||||||
| Annealing voltage | 70V DC | ||||||
| Power consumption | 12 - 30 KW | ||||||
| Power supply | 380V to 480V, 50Hz / 60Hz, 3 Phase | ||||||
Machine Photo
Download Center
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.

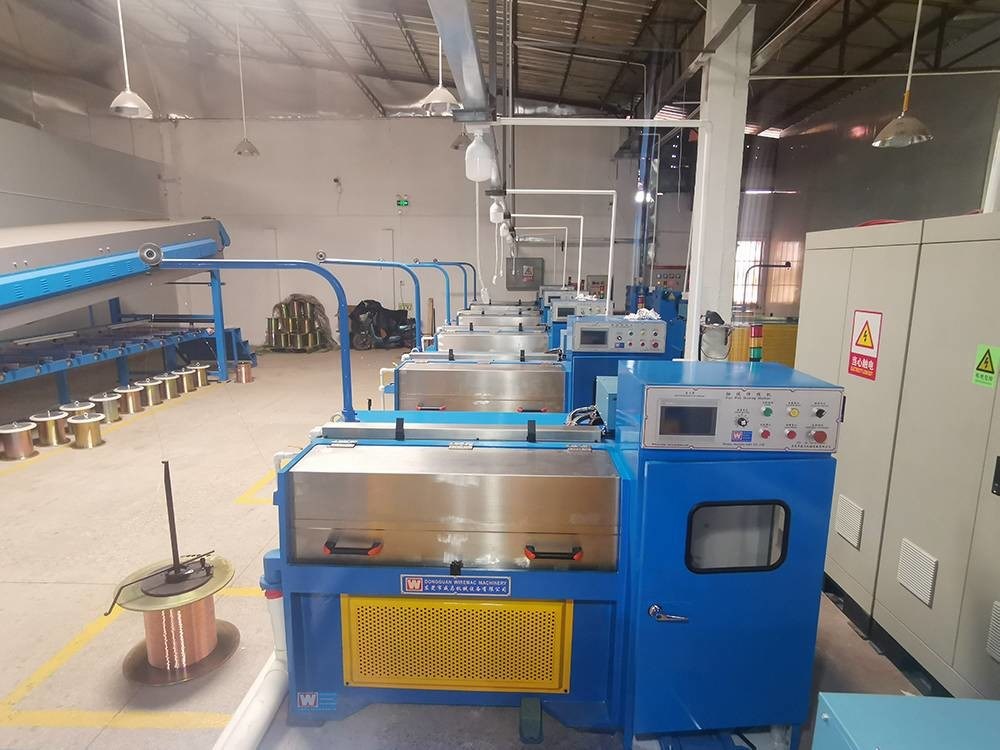

Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
