Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: 24DHA24
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Plywood Case
Delivery Time: 20-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Month
Inlet Diameter: |
0.80 To 1.20 MM |
Outlet Diameter: |
0.08 To 0.32 MM |
Dies: |
24 |
Max. Speed: |
2200 M/min |
Final Capstan: |
206 MM |
Take Up Capacity: |
60 KG Max |
Machined Imension: |
L3100 X W1200 X H2000 MM |
Machine Weight: |
3000 KGS |
Inlet Diameter: |
0.80 To 1.20 MM |
Outlet Diameter: |
0.08 To 0.32 MM |
Dies: |
24 |
Max. Speed: |
2200 M/min |
Final Capstan: |
206 MM |
Take Up Capacity: |
60 KG Max |
Machined Imension: |
L3100 X W1200 X H2000 MM |
Machine Weight: |
3000 KGS |
Turn Key Fine Wire Drawing Machine From Trustworthy Manufacturer
Introduction
Factors affecting wire drawing stretching
(1) Copper and aluminum rod (wire) materials. When other conditions are the same, the tensile force of pulling copper wire is greater than that of pulling aluminum wire, and the aluminum wire is easy to break, so a larger safety factor should be taken when pulling aluminum wire.
(2) Tensile strength of the material. There are many factors affecting the tensile strength of materials, such as the chemical composition of materials, calendering process, etc. if the tensile strength is high, the tensile force is large.
(3) Deformation degree. The greater the degree of deformation, the longer the length of the deformation section in the die hole, which increases the positive pressure of the die hole on the line, the friction force and the tensile force.
(4) Friction coefficient between wire rod and die hole. The greater the friction coefficient, the greater the tensile force. The friction coefficient is determined by the finish of wire and die materials, the composition and quantity of lubricating fluid.
(5) Size and shape of working area and sizing area of wire die hole. The larger the sizing area, the greater the tensile force.
(6) Position of wire mould. The drawing force will also be increased if the wire die is not placed correctly or the die seat is skewed. It is also that the wire diameter and surface quality are not up to standard.
(7) External factors. If the wire is not straight, the jitter of the center line in the drawing process and the setting out resistance will increase the tensile force.
Technical Parameters
Machine Specs | 24DHA24 | ||||||
Inlet wire | 0.80 to 1.20 mm | ||||||
Outlet wire | 0.08 to 0.32 mm | ||||||
Speed | Max. 2200 m/min | ||||||
No. of dies | 24 | ||||||
Main motor power | 15 KW - 4P | ||||||
Brake | Pneumatic brake | ||||||
Mechanical elongation | 15%(1st - 23rd) + 8.7%(24th) | ||||||
Take-up reel | 300 mm / 400 mm | ||||||
Power consumption | 12 - 30 KW | ||||||
Power supply | 380V to 480V, 50Hz / 60Hz, 3 Phase |

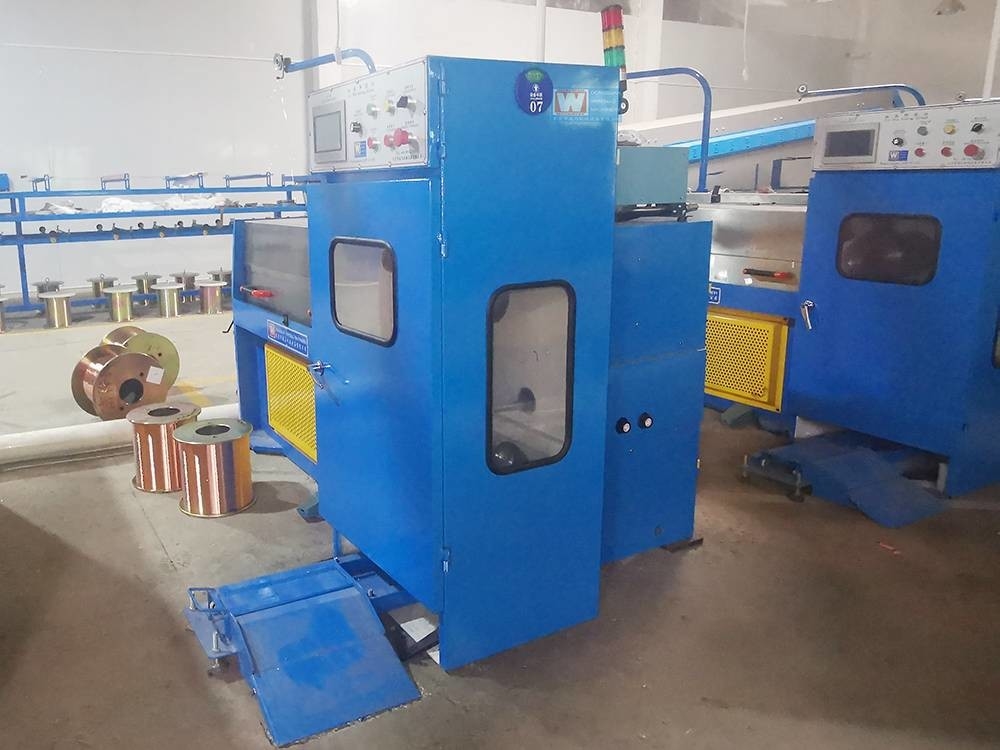

Machine Photo
Download Center
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
