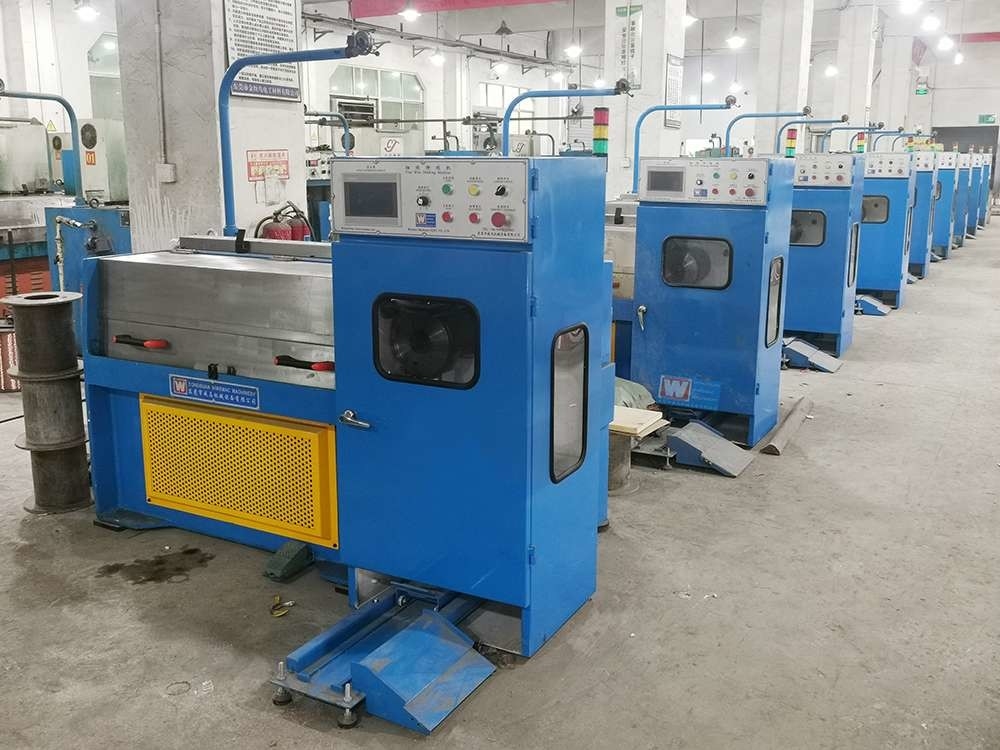

24D Aluminum Wire Drawing Machine With 5.5kw Dual Inverter Drive

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: 24DHA54

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Plywood Case

Delivery Time: 20-35 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Set/Month

Get Best Price
Product Details
High Light:

24D Intermediate Wire Drawing Machine

,

5.5kw Intermediate Wire Drawing Machine

,

Dual Inverter Aluminum Wire Drawing Machine

Incoming Wire:
Φ0.80 - Φ1.20 MM
Outcoming Wire:
Φ0.08 - Φ0.32 MM
Drawing Dies No.:
24D
Production Speed:
2500 M/min Max
Power Control:
Dual Inverter Drive
Machine Power:
8 KW - 18 KW
Machine Size:
L2800 X W1500 X H1650 MM
Weight:
2200 KGS
Incoming Wire:
Φ0.80 - Φ1.20 MM
Outcoming Wire:
Φ0.08 - Φ0.32 MM
Drawing Dies No.:
24D
Production Speed:
2500 M/min Max
Power Control:
Dual Inverter Drive
Machine Power:
8 KW - 18 KW
Machine Size:
L2800 X W1500 X H1650 MM
Weight:
2200 KGS
Product Description

24D Aluminum Wire Drawing Machine With 5.5kw Dual Inverter Drive



Introduction



The utility model relates to a self-lubricating copper wire drawing machine, which comprises a fixed shell, one side of the upper end of the fixed shell is fixedly connected with a pull frame, the pull frame is in an L-shaped structure, one end of the pull frame away from the fixed shell is movably connected with a first pulley, the four corners of the lower end of the fixed shell are fixedly connected with supporting feet, the lower ends of the supporting feet are provided with anti-skid pads, and the middle of one side of the fixed shell is fixedly connected with a supporting plate.



The beneficial effect of the utility model is that the utility model is an automatic lubricating copper wire drawing machine. The first pulley and the second pulley of the utility model are provided with a lubricating mechanism. During operation, the micro vacuum pump of the lubricating mechanism inflates the air bag through the vacuum pipe, puts pressure on the interior of the liquid storage tank, and then squeezes the lubricant into the interior of the brush through the capillary tube, The wet brush can automatically lubricate the raw materials of the copper wire during operation, so as to avoid scratching the surface of the copper wire during operation, and there is no need for frequent manual operation, which is more convenient.



Technical Parameters



Item Specs
Die specifications Φ25mm x 8 - 13mm thickness
Wire drawing Slip type continuous wire drawing
Drawing lubrication Spray type
Brake mode

Electromagnetic brake

Power control 15kW - 4P, AC motor
Take up reel dimension Φ 300mm
Elongation rate 1st - 23rd dies: 15% + 24th die: 8.7%
Take-up power AC motor, 4kw - 4P or 5.5kw
Power supply 380V - 480V, 50Hz / 60Hz, 3 Phase



Download Center



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



24D Aluminum Wire Drawing Machine With 5.5kw Dual Inverter Drive 0



Our Workshop



24D Aluminum Wire Drawing Machine With 5.5kw Dual Inverter Drive 124D Aluminum Wire Drawing Machine With 5.5kw Dual Inverter Drive 224D Aluminum Wire Drawing Machine With 5.5kw Dual Inverter Drive 3
