50/60Hz Medium Fine Wire Drawing Machine Automatic 1600m/Min

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: 20DHAT02

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 25-40 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 150 Set/Month

Get Best Price
Product Details
Highlight:

60Hz Fine Wire Drawing Machine

,

Medium Fine Wire Drawing Machine

,

1600m/Min Medium Wire Drawing Machine

Input Wire:
0.8 MM - 1.6 MM
Output Wire:
0.17 MM - 0.7 MM
Line Speed:
1600 M/MIN
Die No.:
20 PCS
Main Power:
15KW-4P
Power Consumption:
8 - 18 KW
Capstan Size:
200 MM
Take Up Spool:
300 MM - 400 MM
Input Wire:
0.8 MM - 1.6 MM
Output Wire:
0.17 MM - 0.7 MM
Line Speed:
1600 M/MIN
Die No.:
20 PCS
Main Power:
15KW-4P
Power Consumption:
8 - 18 KW
Capstan Size:
200 MM
Take Up Spool:
300 MM - 400 MM
Product Description

Automatic Medium Fine Wire Drawing Machine 1600 m/min In Beautiful Design

Main features

► It is painted by best brand oil paints, color is vivid and beautiful, and does not fall easily.

► The best components are used, such as Simens motor, Schneider electrical components, SKF bearing, Yaskawa inverter etc.

► The machine is well-designed, much more intelligent. It can display real-time information on the PLC screen, easy to operate.

► It is high speed and low power consumption model, which improves production efficiency and saves the cost.

Technical Parameters


Machine Specs 20DHAT02
Max inlet wire 0.8 to 1.6 mm
Outlet wire diameter 0.17 to 0.7 mm
Running speed 1600 m/min
Die quantity 20
Take up motor power 4kw-4P /5.5kw AC motor
Take-up control Automatic Modification and control of take-up tension
Take-up Capacity 80kg, max
Size of dies Φ25mm x 8mm (thickness)
Mechanical elongation By the dies from the 1st to 19th,17%. By the 20th die, 10%.
Spool dimension 300 mm - 400 mm
Power supply 380V - 480V, 50/60Hz
Machine size 2800L x 1500W x 1650H (mm)
Machine weight 2500 kg



Download Center


20 Dies Middle-Fine Wire Drawing Machine.pdf


Note: Please click above link to download our detailed machine technical specifications.



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf

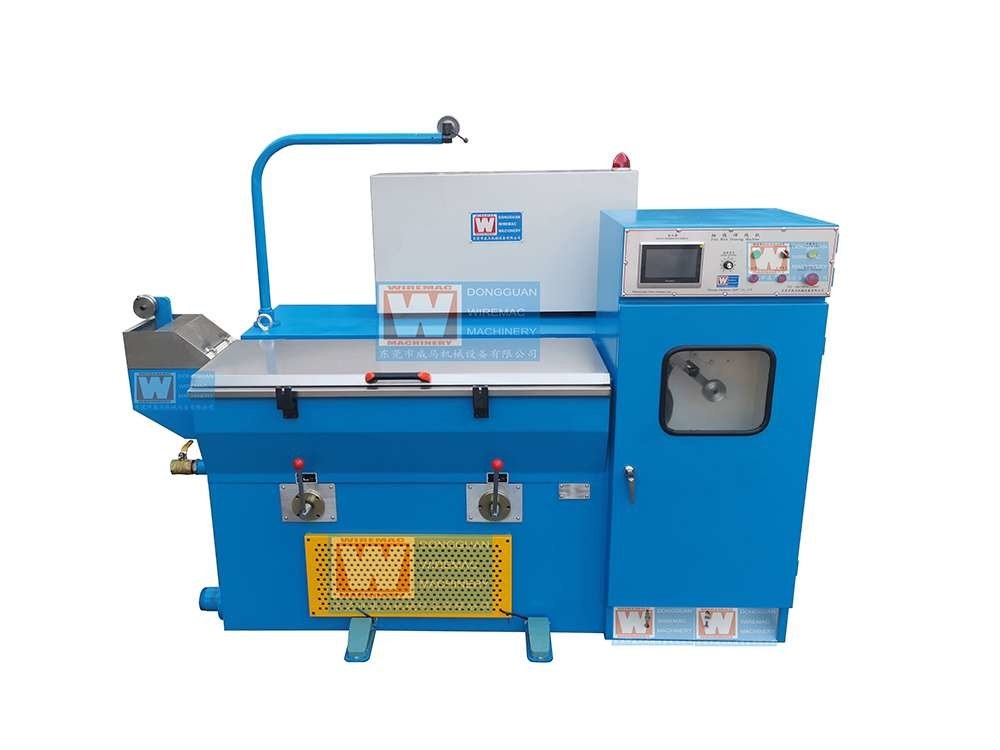

Machine Photos

50/60Hz Medium Fine Wire Drawing Machine Automatic 1600m/Min 0



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



50/60Hz Medium Fine Wire Drawing Machine Automatic 1600m/Min 1



Our Workshop



50/60Hz Medium Fine Wire Drawing Machine Automatic 1600m/Min 250/60Hz Medium Fine Wire Drawing Machine Automatic 1600m/Min 350/60Hz Medium Fine Wire Drawing Machine Automatic 1600m/Min 4



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
