Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: ZL250A13
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 25 to 40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Set/Month
Input Wire: |
2.6 - 3.0 MM |
Output Wire Diameters: |
0.4 - 1.2 MM |
Max. Line Speed: |
30 M/S |
Die Number: |
21 |
Main Power: |
55KW-4P (AC) |
Take-up Load: |
Max 200 KG |
Reel Size: |
500 / 600 MM |
Power Supply: |
380V-480V AC, 50/60Hz, 3-phase |
Input Wire: |
2.6 - 3.0 MM |
Output Wire Diameters: |
0.4 - 1.2 MM |
Max. Line Speed: |
30 M/S |
Die Number: |
21 |
Main Power: |
55KW-4P (AC) |
Take-up Load: |
Max 200 KG |
Reel Size: |
500 / 600 MM |
Power Supply: |
380V-480V AC, 50/60Hz, 3-phase |
High Quality Copper Wire Drawing Machine For Cable Extrusion
Introduction
1. Types of wire drawing machines: There are two main types of wire drawing machines - single block machines and multi-block machines. Single block machines are suitable for small-scale production and are less expensive, while multi-block machines are suitable for large-scale production and are more expensive.
2. Wire drawing process: The wire drawing process involves pulling a metal wire through a series of dies to reduce its diameter. The process typically involves several stages, with each stage using a smaller die than the previous stage. Lubricants are often used to reduce friction and prevent the wire from breaking during the drawing process.
3. Materials used: Copper wire drawing machines are used to draw copper wire, but they can also be used to draw other metals such as aluminum, steel, and brass.
4. Applications: Copper wire drawing machines are used in a wide range of industries including electrical, electronics, telecommunications, construction, and automotive. They are used to manufacture a variety of copper products such as wires, cables, tubes, and rods.
5. Maintenance: Proper maintenance is important to ensure the longevity and optimal performance of a copper wire drawing machine. This includes regular cleaning, lubrication, and inspection of the machine's components.
6. Safety precautions: Working with copper wire drawing machines can be dangerous if proper safety precautions are not taken. Operators should wear appropriate personal protective equipment, and the machine should be equipped with safety guards to prevent accidents.
Technical Parameters
| Machine Specs | ZL250A12 | ||||||
| Inlet wire diameter | 2.6 mm to 3.0 mm | ||||||
| Outlet wire diameter | 0.4 mm to 1.2 mm | ||||||
| Die quantity | 21 | ||||||
| Max line speed | 1800 m/min | ||||||
| Lubrication type | full immersion | ||||||
| Capstan size | 250 mm | ||||||
| Mechanical elongation rate | the 1st-20th: 18.4%, the 21st: 15% | ||||||
| Take up motor power | 11kw-4P AC motor | ||||||
| Total power | 30 - 65kw | ||||||
| Machine size | L13000 x W5000 x H4000 mm | ||||||
| Machine weight | 8000 kgs | ||||||

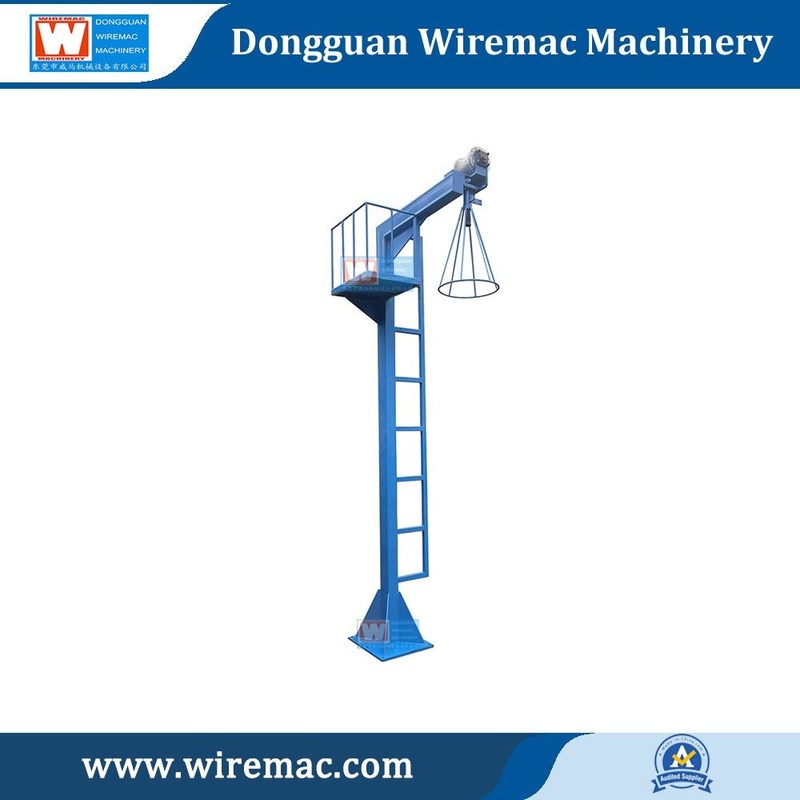

Detailed Picture
Download Center
Intermediate Wire Drawing Machine with Annealer.pd...
Note: Please click above link to download our detailed machine technical specifications.
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
