Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: ZL250D
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Set/Month
Max Inlet Diameter: |
2.6 - 3.0 MM |
Outlet Diameter Range: |
0.4 - 1.2 MM |
Max Die Number: |
21 |
Line Speed: |
Max 1800 M/min |
Die Dimension: |
25 X 8 - 12 MM (thickness) |
Capstan: |
250 MM |
Main Motor: |
55 KW - 4P |
Required Voltage: |
380V AC 50/60Hz |
Take Up Capacity: |
Max 280 KG |
Weight: |
5000 Kg |
Warranty: |
1 Year |
Quality: |
Europe, US Standard |
Color: |
Blue |
Elongation Rate: |
18.4% + 15% |
Max Inlet Diameter: |
2.6 - 3.0 MM |
Outlet Diameter Range: |
0.4 - 1.2 MM |
Max Die Number: |
21 |
Line Speed: |
Max 1800 M/min |
Die Dimension: |
25 X 8 - 12 MM (thickness) |
Capstan: |
250 MM |
Main Motor: |
55 KW - 4P |
Required Voltage: |
380V AC 50/60Hz |
Take Up Capacity: |
Max 280 KG |
Weight: |
5000 Kg |
Warranty: |
1 Year |
Quality: |
Europe, US Standard |
Color: |
Blue |
Elongation Rate: |
18.4% + 15% |

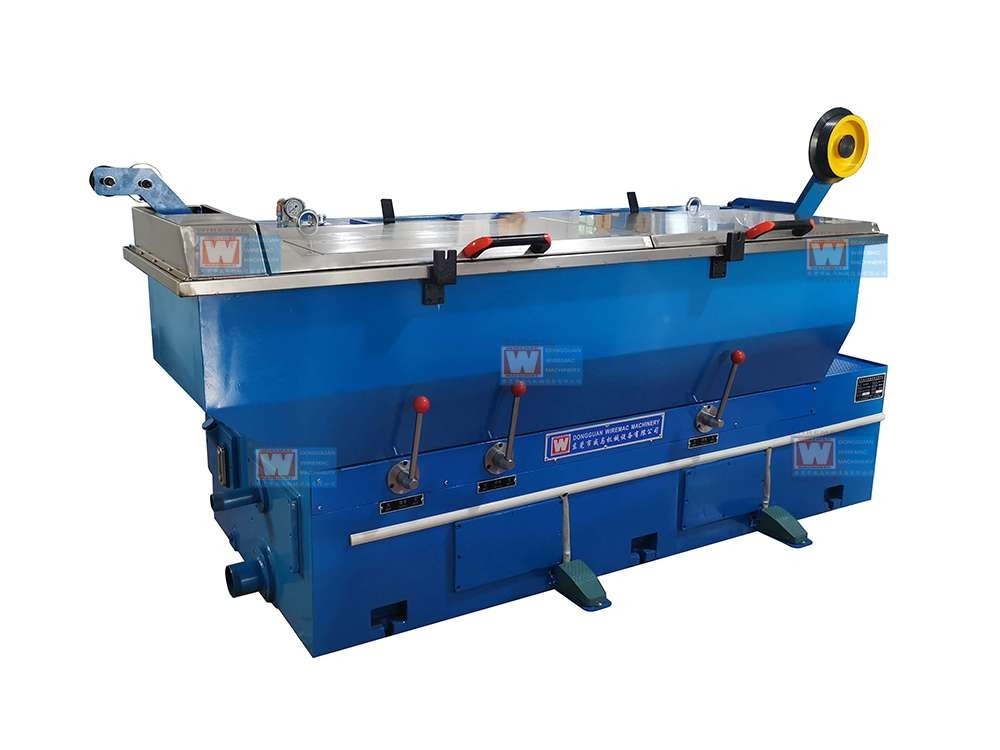

Water Tank Wet Wire Drawing Machine Copper Wire Pulling Machine
Main Features
(1) The machine consists of trough for cooling and circulation of drawing emulsion, gearbox, lubrication system.
(2) Two clip-and-run switches for die stringing by clip-and-run operation. Device to prevent from back turn is offered.
(3) The drawing block and drawing die holder extend identical distance from the body of gearbox. This special construction results in good rigidity of spare parts significantly.
(4) Drawing blocks adopt steel wheels. Its surface is covered by tungsten carbide to prolong use life.
(5) The gearbox is lubricated by oil pump with a 2.2kw. motor. All the gears and bearings are lubricated by a heat exchange.
Technical Parameters
| Machine type | ZL250D | ||||||
| Max input diameter | 2.6 - 3.0 mm | ||||||
| Output diameter range | 0.4 - 1.2 mm | ||||||
| Max die number | 21 | ||||||
| Max line speed | 1800 m/min | ||||||
| Main motor power | 55 kw | ||||||
| Capstan motor power | 11 kw | ||||||
| Capstan structure | Casting + Steel plate welding and annealing | ||||||
| Capstan material | Ceramic tower | ||||||
| Elongation | 18.4% + 15% | ||||||
| Drive | Gear drive | ||||||
| Tension control | Air pressure adjustment type tension | ||||||
| Volume of lubricant | 40 L/min | ||||||
| Lubrication type | Lubrication by full immersion | ||||||
| Power supply | 380V, 50/60HZ | ||||||
| Machine dimension | L9000 x W4200 x H5000mm | ||||||
| Machine weight | 5000 kg | ||||||
| Brake method | Disc type brake | ||||||
Details Picture
Download Center
Intermediate Wire Drawing Machine with Single Spoo...
Note: Please click above link to download our detailed machine technical specifications.
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
