380V-480V Straight Wire Drawing Machine , Anticorrosive Cable Making Machine

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: ZL250K

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30 to 45 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50 Set/Month

Get Best Price
Product Details
High Light:

380V Straight Wire Drawing Machine

,

480V Straight Wire Drawing Machine

,

Anticorrosive Cable Making Machine

Inlet Wire Size:
2.6MM - 3.0MM
Outlet Wire Size:
0.4MM - 1.2MM
Die No.:
21-Set
Speed:
1800 M/MIN Max
Capstan:
250 MM
Inverter:
Yaskawa, Japan
Motor:
Siemens
Power Supply:
380V - 480V, 50/60Hz
Inlet Wire Size:
2.6MM - 3.0MM
Outlet Wire Size:
0.4MM - 1.2MM
Die No.:
21-Set
Speed:
1800 M/MIN Max
Capstan:
250 MM
Inverter:
Yaskawa, Japan
Motor:
Siemens
Power Supply:
380V - 480V, 50/60Hz
Product Description

Fast Speed Straight Wire Drawing Machine For Cable Manufacturing Industry



Main Features



Pay-off: for the whole wire drawing machine link, the control of wire pay off does not have too high precision requirements. For most wire drawing machines, the pay off operation is realized by driving the pay off frame by frequency converter, but there are also some wire drawing machines with double frequency conversion control, and even directly sent to the wire drawing machine through the wire tension drafting of the wire drawing link to realize free pay off.



Wire drawing: wire drawing is the most important work link of wire drawing machine. Different metal materials, different silk varieties and requirements, wire drawing links are very different. The specific operation process of water tank wire drawing machine and straight wire drawing machine will be described in detail later in the article;



Take-up: the working speed of the take-up link determines the production efficiency of the whole wire drawing machine, and it is also the most difficult part of the whole system to control. In the winding part, the common control technologies are synchronous control and tension control to realize the winding of metal products



Technical Parameters



Machine Specs ZL250K
Inlet wire range 2.6 - 3.0mm
Outlet wire range 0.4 - 1.2mm
Die number 21pcs
Line speed Max 1800m/min
Capstan size Φ 250mm
Take-up control Double frequency conversion tension control
Take up reel 500mm to 630mm
Elongation 18.4% + 15%
Take-up volume 200kg, max
Machine size L11000 x W5000 x H4000mm
Machine weight 5000kgs

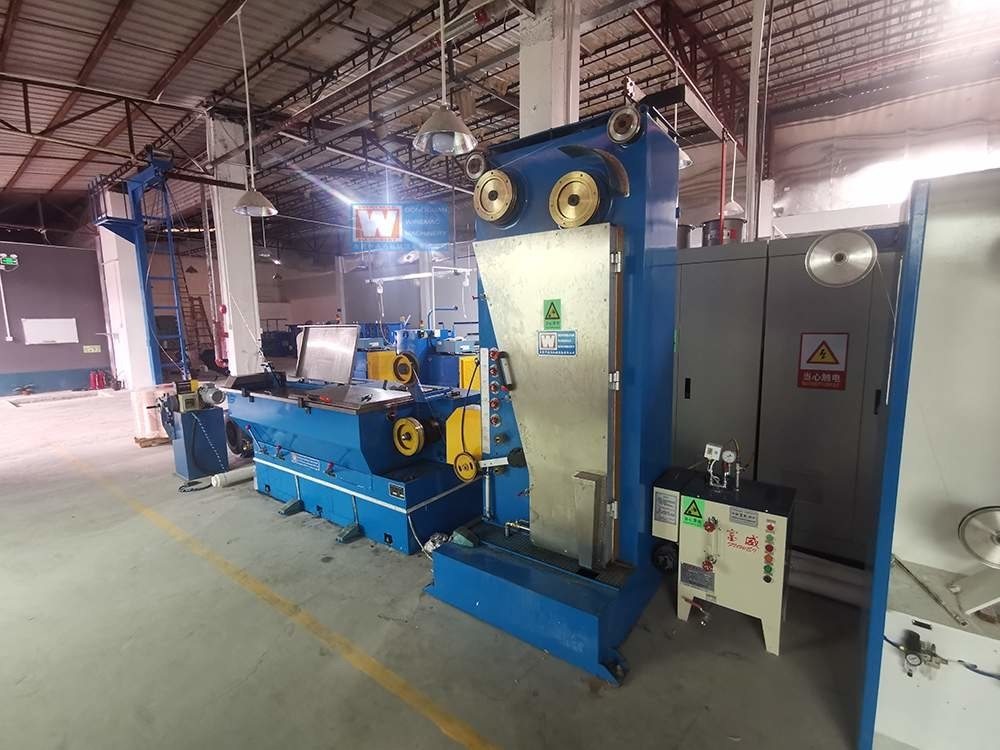

Details Picture



380V-480V Straight Wire Drawing Machine , Anticorrosive Cable Making Machine 0



Download Center

Intermediate Wire Drawing Machine with Single Spoo...

Note: Please click above link to download our detailed machine technical specifications.



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



380V-480V Straight Wire Drawing Machine , Anticorrosive Cable Making Machine 1



Our Workshop



380V-480V Straight Wire Drawing Machine , Anticorrosive Cable Making Machine 2380V-480V Straight Wire Drawing Machine , Anticorrosive Cable Making Machine 3380V-480V Straight Wire Drawing Machine , Anticorrosive Cable Making Machine 4



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
