Medium Copper Wire Drawing Machine With 630mm Single Spool Take Up

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: ZL250E

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30-45 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50 Set/Month

Get Best Price
Product Details
High Light:

Medium Steel Wire Drawing Machine

,

Single Spool Steel Wire Drawing Machine

,

5000KG Steel Drawing Machine

Inlet Diameter:
2.6 MM - 3.0 MM
Outlet Diameter Range:
0.4 MM - 1.2 MM
Max Dies:
21
Wire Speed:
Max 1800 M/MIN
Die Dimension:
25 X 8 - 12 MM (thickness)
Capstan:
250 MM
Main Motor:
55 KW - 4P
Required Voltage:
380V AC 50/60Hz
Spool Size:
500 MM, 630 MM
Weight:
5000 KG
Warranty:
1 Year
Quality:
Europe, US Standard
Color:
Blue Or Customized
Elongation Rate:
18.4% + 15%
Inlet Diameter:
2.6 MM - 3.0 MM
Outlet Diameter Range:
0.4 MM - 1.2 MM
Max Dies:
21
Wire Speed:
Max 1800 M/MIN
Die Dimension:
25 X 8 - 12 MM (thickness)
Capstan:
250 MM
Main Motor:
55 KW - 4P
Required Voltage:
380V AC 50/60Hz
Spool Size:
500 MM, 630 MM
Weight:
5000 KG
Warranty:
1 Year
Quality:
Europe, US Standard
Color:
Blue Or Customized
Elongation Rate:
18.4% + 15%
Product Description

Medium Copper Wire Drawing Machine With 630mm Single Spool Take Up



Main Features



♦ Famous brands are used: Schneider switches & circuit breakers, SKF bearings, Habbsit belts, Yaskawa inverters etc.



♦ Automatic single spool take up is adopted, with speed control and display, meter recorder and automatic stop.



♦ The transmission of wire drawing host machine adopts gear transmission, which has high transmission efficiency, low noise and long service life.



♦ All machines are well painted by the best paints, and it's optional if requested.



Technical Parameters



Machine type ZL250E
Inlet wire diameter 2.6 mm - 3.0 mm
Output wire diameter 0.4 mm - 1.2 mm
Die quantity 21
Max wire speed 1800 m/min
Main motor power 55 kw
Capstan motor power 11 kw
Capstan structure Casting + Steel plate welding and annealing
Capstan material Ceramic tower
Elongation 18.4% + 15%
Drive Gear drive
Take up Single spool
Spool size 500 mm, 630 mm
Lubrication type Lubrication by full immersion
Power supply 380V, 50/60HZ
Machine dimension L9000 x W4200 x H5000mm
Machine weight 5000 kg
Brake method Disc type brake



Details Picture

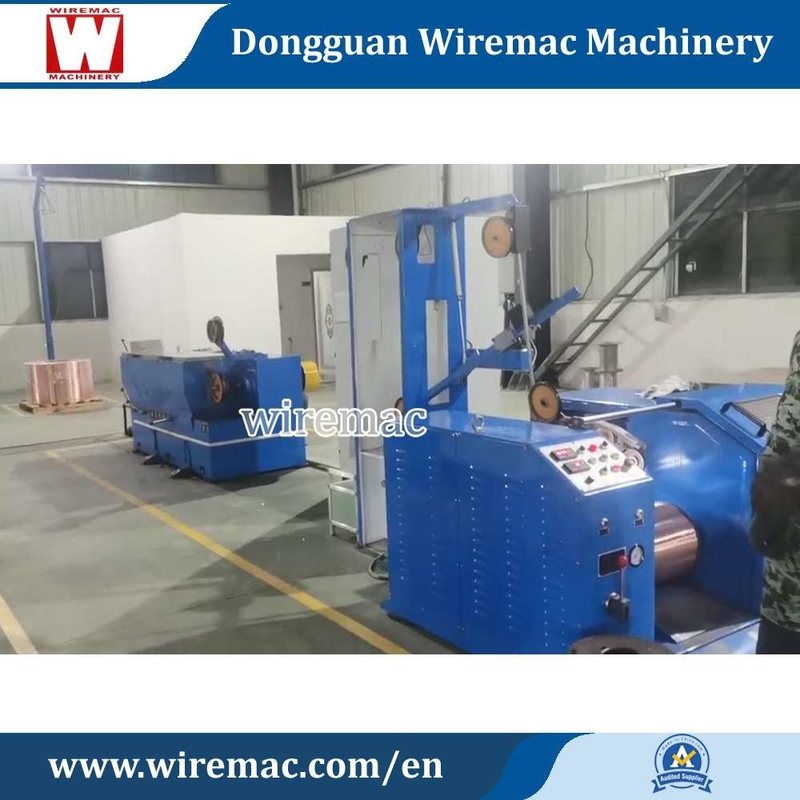

Medium Copper Wire Drawing Machine With 630mm Single Spool Take Up 0



Download Center

Intermediate Wire Drawing Machine with Single Spoo...

Note: Please click above link to download our detailed machine technical specifications.



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



Medium Copper Wire Drawing Machine With 630mm Single Spool Take Up 1



Our Workshop



Medium Copper Wire Drawing Machine With 630mm Single Spool Take Up 2Medium Copper Wire Drawing Machine With 630mm Single Spool Take Up 3Medium Copper Wire Drawing Machine With 630mm Single Spool Take Up 4



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
