Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: ZL250B
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Set/Month
Max Inlet Diameter: |
2.6 - 3.0 MM |
Outlet Diameter Range: |
0.4 - 1.2 MM |
Max Die Number: |
21 |
Line Speed: |
Max 1800 M/min |
Die Dimension: |
25 X 8 - 12 MM (thickness) |
Capstan: |
250 MM |
Main Motor: |
90 KW - 4P |
Required Voltage: |
380V AC 50/60Hz |
Take Up Capacity: |
Max 280 KG |
Weight: |
5000 Kg |
Warranty: |
1 Year |
Quality: |
Europe, US Standard |
Color: |
Blue |
Elongation Rate: |
18.4% + 15% |
Max Inlet Diameter: |
2.6 - 3.0 MM |
Outlet Diameter Range: |
0.4 - 1.2 MM |
Max Die Number: |
21 |
Line Speed: |
Max 1800 M/min |
Die Dimension: |
25 X 8 - 12 MM (thickness) |
Capstan: |
250 MM |
Main Motor: |
90 KW - 4P |
Required Voltage: |
380V AC 50/60Hz |
Take Up Capacity: |
Max 280 KG |
Weight: |
5000 Kg |
Warranty: |
1 Year |
Quality: |
Europe, US Standard |
Color: |
Blue |
Elongation Rate: |
18.4% + 15% |

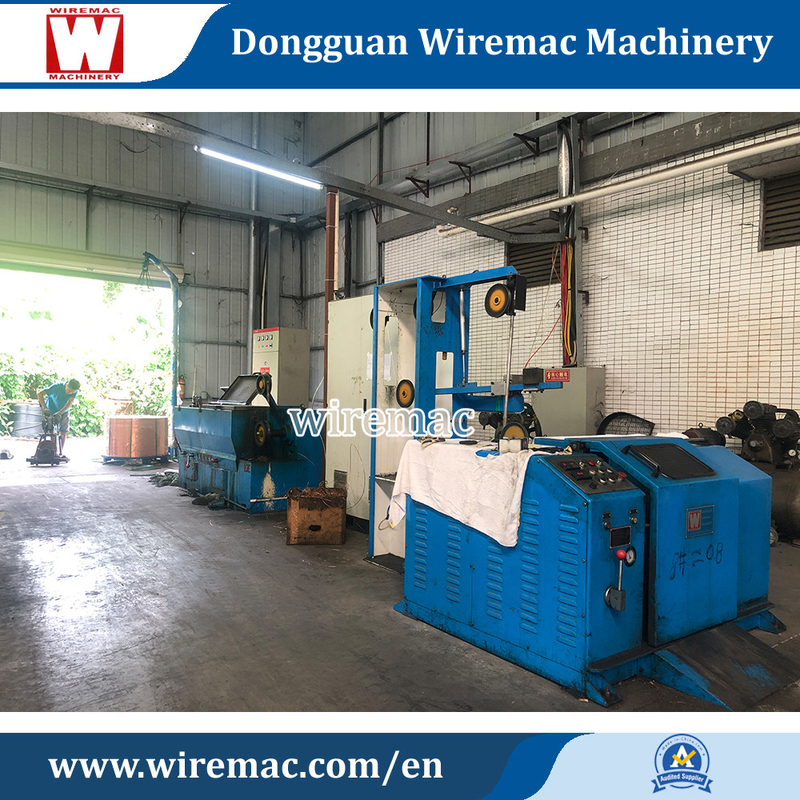

21 Dies Straight Line Intermediate Wire Drawing Machine With Single Spool
Performance characteristics
1. The main engine is made of gray cast iron 250, which is integrally cast and then refined. It has no vibration, good stability and is not easy to deform.
2. The whole machine adopts double frequency conversion tension automatic correction control system.
3. The surface of the wire drawing wheel is sprayed with high wear-resistant tungsten carbide, with high hardness, wear resistance and low noise.
4. It can be used with continuous annealing machine, shaftless single reel take-up machine and plum blossom thread dropping machine.
Technical Parameters
| Machine type | ZDL350 | ||||||
| Max input diameter | 2.6 - 3.0 mm | ||||||
| Output diameter range | 0.4 - 1.2 mm | ||||||
| Max die number | 21 | ||||||
| Max line speed | 1800 m/min | ||||||
| Main motor power | 90 kw | ||||||
| Capstan motor power | 11 kw | ||||||
| Capstan structure | Casting + Steel plate welding and annealing | ||||||
| Capstan material | Ceramic tower | ||||||
| Elongation | 18.4% + 15% | ||||||
| Drive | Gear drive | ||||||
| Tension control | Air pressure adjustment type tension | ||||||
| Volume of lubricant | 40 L/min | ||||||
| Lubrication type | Lubrication by full immersion | ||||||
| Power supply | 380V, 50/60HZ | ||||||
| Machine dimension | L9000 x W3000 x H3500mm | ||||||
| Machine weight | 5000 kg | ||||||
| Brake method | Disc type brake | ||||||
Details Picture
