Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: DL11B01
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 45-60 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Month
I/P Wire: |
8 Mm |
O/P Wire Range: |
1.6 Mm To 4.0 Mm |
Die No.: |
11 |
Machine Speed: |
Max 1200 M/min |
Die Size: |
55 X 35 |
Main Motor Power: |
132 KW + 45 KW |
Voltage Supply: |
380V To 480V, 3 Phase, 50/60Hz |
Warranty: |
One Year |
I/P Wire: |
8 Mm |
O/P Wire Range: |
1.6 Mm To 4.0 Mm |
Die No.: |
11 |
Machine Speed: |
Max 1200 M/min |
Die Size: |
55 X 35 |
Main Motor Power: |
132 KW + 45 KW |
Voltage Supply: |
380V To 480V, 3 Phase, 50/60Hz |
Warranty: |
One Year |

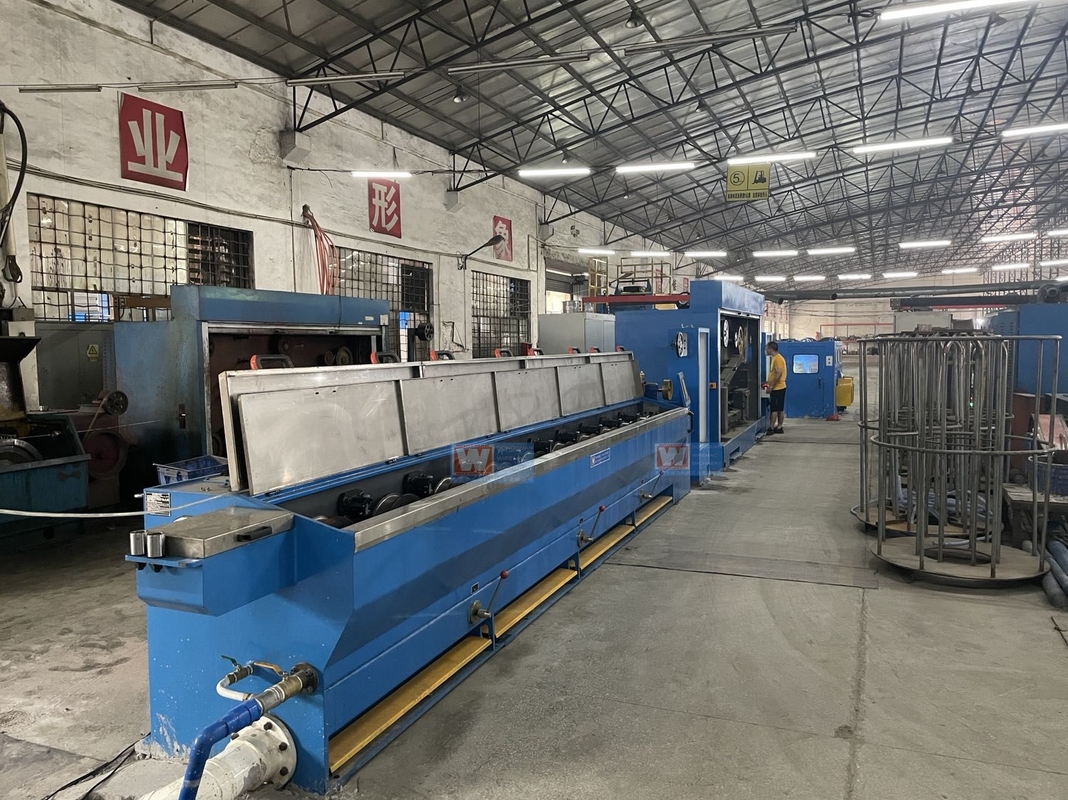

High Speed 11D Copper RBD Machine , 11 Dies Copper Rod Drawing Machine
Introduction
This machine is mainly used for drawing φ 1.6- φ 4.0mm copper wire and φ 2.0mm- φ 4.5mm aluminum wire. Copper wire can be annealed online, but aluminum wire cannot be annealed online. The wire drawing drum is arranged in-line, and the constant speed wheel and other ten wire drawing drums are driven by a motor, which greatly facilitates operation and enables rapid die change.
Technical Parameters
| Item | Specs | ||||||
| Input wire diameter | 8.0 mm | ||||||
| Output wire diameter | φ1.6mm to φ4.0mm | ||||||
| Max quanity of dies | 11 | ||||||
| Production speed | 1200 m/min | ||||||
| Main motor power | 132 kw (AC) | ||||||
| Capacity of the accumulator | 3 m | ||||||
| Constant speed wheel power |
45 KW (AC motor) |
||||||
| Drop coiler power |
φ800-15KW / φ680-11KW |
||||||
| Total power |
180 KW AC |
||||||
| Drop coiler wheel size | φ800mm or φ680mm | ||||||
Product Drawing
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
