Home > products > Rod Breakdown Machine > Antiwear Wet Wire Drawing Machine , Copper Wire RBD Machine

Antiwear Wet Wire Drawing Machine , Copper Wire RBD Machine

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: DL - 400/9C

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30-45 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10 Set/Month

Get Best Price
Product Details
High Light:

Antiwear Wet Wire Drawing Machine

,

50HZ Wet Wire Drawing Machine

,

60HZ Copper Wire Making Machine

Input Wire:
8.0 MM
Output Wire:
2.25 - 3.0 MM
Die Number:
9
Max Speed:
600 M/min
Die Dimension:
55 X 35
Drawing Block Size:
φ 400 MM
Required Voltage:
380 - 480V AC 50/60 Hz
Main Power:
132 KW (AC)
Weight:
7 MT
Warranty:
1 Year
Quality:
Europe, US Standard
Color:
Blue Or Customized
Input Wire:
8.0 MM
Output Wire:
2.25 - 3.0 MM
Die Number:
9
Max Speed:
600 M/min
Die Dimension:
55 X 35
Drawing Block Size:
φ 400 MM
Required Voltage:
380 - 480V AC 50/60 Hz
Main Power:
132 KW (AC)
Weight:
7 MT
Warranty:
1 Year
Quality:
Europe, US Standard
Color:
Blue Or Customized
Product Description

Antiwear Wet Wire Drawing Machine , Copper Wire RBD Machine



Technical Parameters



Item DL-400/9C
Input wire 8.0 mm
Output wire 2.25 - 3.0 mm
Max die passes 9
Max line speed 600 m/min
Main motor power 132 kw (AC)
Capacity of accumulator 7 m
Power of motor for Drop Coiler

φ 800 - 15 KW / φ 680 - 11 KW (AC motor)

Drop coiler spool size

φ 800 mm / φ 680 mm

Maximum drop coiler weight

φ 800 mm 2500 KG / φ 680 mm 2000 KG

Drawing die size

Φ 55 × 35

Power

400V AC 50/60HZ

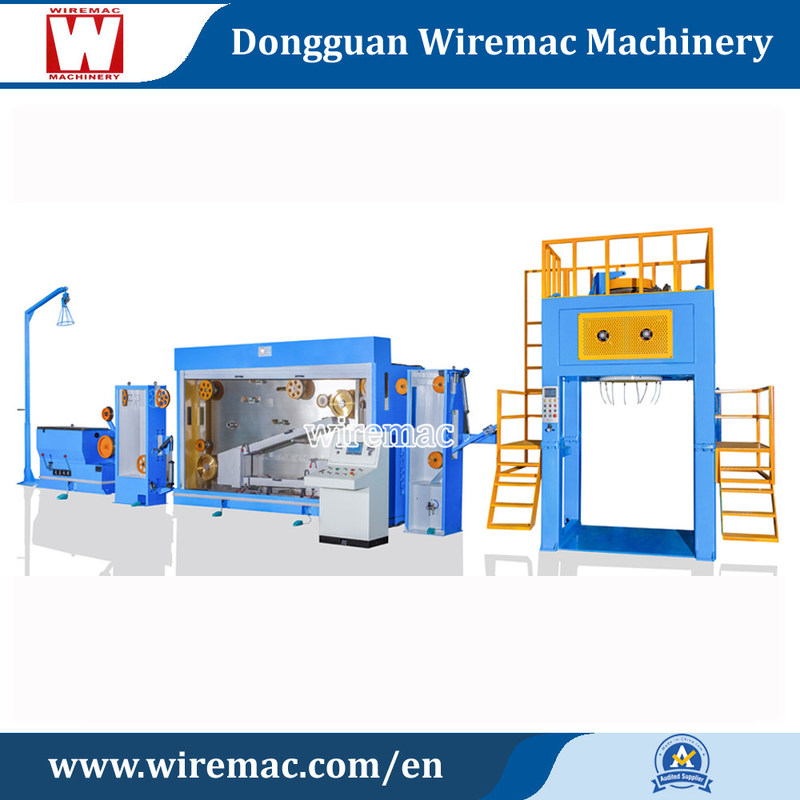

Product Photo



Antiwear Wet Wire Drawing Machine , Copper Wire RBD Machine 0



Machine Composition



Pay Off --> Main Machine --> Tension Device --> Annealing Equipment --> Tension Device --> Automatic Drop Coiler



Single Take Up, Automatic Double Take Up, Intense Take Up, are optional.



Note: Please contact us if you have other requirement.



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



Antiwear Wet Wire Drawing Machine , Copper Wire RBD Machine 1



Our Workshop



Antiwear Wet Wire Drawing Machine , Copper Wire RBD Machine 2Antiwear Wet Wire Drawing Machine , Copper Wire RBD Machine 3Antiwear Wet Wire Drawing Machine , Copper Wire RBD Machine 4



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
