Copper Drawing Rod Breakdown Machine 20m/S Inlet Wire 8mm 0.4MPa

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS

Model Number: DL11A

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30-60 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10 Set/Month

Get Best Price
Product Details
High Light:

Copper Rod Breakdown Machine

,

8Mm Rod Breakdown Machine

,

0.4MPa Copper Rod Drawing Machine

Inlet Wire:
8.0 Mm
Outlet Wire:
1.6 - 3.5 Mm
Die Number:
11
Max Speed:
20m/s
Die Dimension:
55 X 35
Main Power:
132 KW (AC)
Required Voltage:
380V To 480V, AC
Warranty:
1 Year
Inlet Wire:
8.0 Mm
Outlet Wire:
1.6 - 3.5 Mm
Die Number:
11
Max Speed:
20m/s
Die Dimension:
55 X 35
Main Power:
132 KW (AC)
Required Voltage:
380V To 480V, AC
Warranty:
1 Year
Product Description

8 Mm To 1.6 Mm Copper Rod Breakdown Drawing Machine



Introduction



Copper rod breakdown drawing machine



The equipment is mainly composed of swing arm paying off frame, large wire drawing machine, wire storage device, double disc automatic winding machine, continuous looping machine and pneumatic device, lubrication system, electrical control system, etc.



A. Swing arm paying off frame

The pay off frame is mainly composed of column, swing arm, steering roller, etc. The setting out rack is about 5000mm high and can place two copper coils.

Continuous pay off can be realized after the end-to-end connection between the two coils of copper bars.



B. Dala unit

The large drawing unit is a sliding type, equal diameter drawing drum and copper wire drawing equipment. The machine is mainly composed of drawing liquid cooling circulating tank, transmission gearbox, transmission lubrication system, constant speed wheel, main motor and constant speed wheel drive motor.



The main motor is directly connected through the transmission gearbox through the coupling. The transmission gearbox is a 6-SECTION independent box, which is connected through bolts and locating pins. In order to prevent the drum from reversing due to the pull wire stress during parking or inching, overrunning clutches are designed on the transmission chains of gearbox and constant speed wheel respectively to prevent reversing, so as to avoid the phenomenon of disconnection when driving again.



Note: the wire drawing unit must not be reversed, otherwise the mechanism will be damaged



Technical Parameters



Item Specs
Input wire range 8 mm (copper)
Output wire range φ1.6-φ3.5mm (copper)
Max dies 11
Max machine speed 20 m/s
Main motor power 132 kw (AC)
Capacity of the accumulator 7 m
Power of constant speed wheel

45 KW (AC motor)

Power of motor for Drop Coiler

φ800-15KW / φ680-11KW

Total equipment power

180 KW

Drop coiler wheel size φ800mm / φ680mm
System pressure 0.4 MPa
Oil supply temperature

40°C

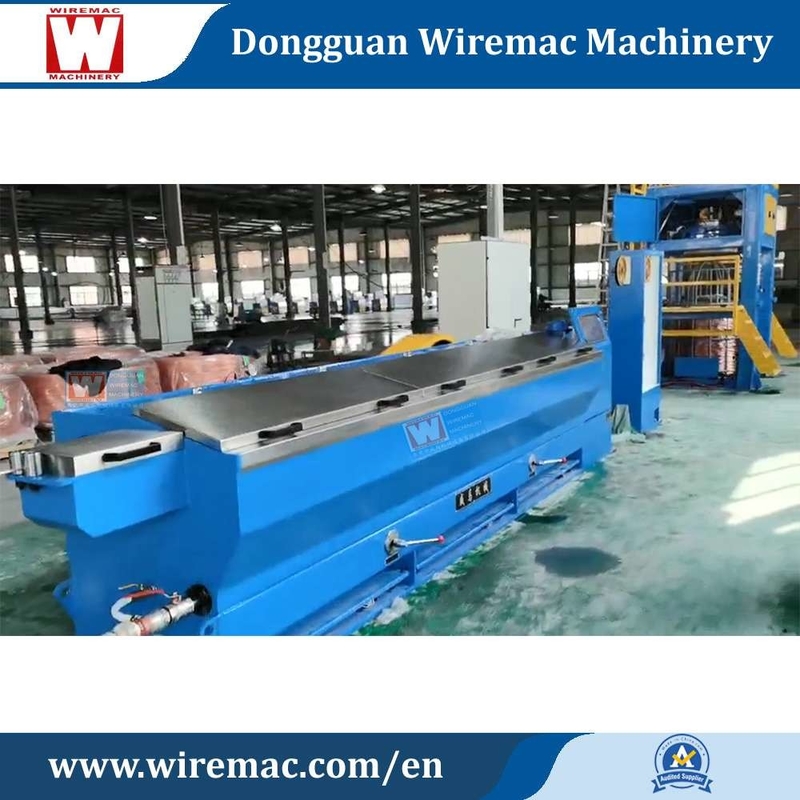

Product Drawing



Copper Drawing Rod Breakdown Machine 20m/S Inlet Wire 8mm 0.4MPa 0
