380V-480V Wire Drawing Equipment , Antiwear Electric Wire Making Machine

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: ZL250A08

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30 to 45 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50 Set/Month

Get Best Price
Product Details
High Light:

380V Wire Drawing Equipment

,

480V Wire Drawing Equipment

,

Antiwear Electric Wire Making Machine

Incoming Wire Diameter:
2.6 MM - 3.0 MM
Finished Wire Diameter:
0.4 MM - 1.2 MM
Block No.:
21 Blocks
Line Speed:
Max 1800 M/MIN
Take Up Motor:
11 KW
Take Up Capacity:
200 KGS
Voltage:
380V To 480V, 3 Phase
Frequency:
50Hz / 60Hz
Incoming Wire Diameter:
2.6 MM - 3.0 MM
Finished Wire Diameter:
0.4 MM - 1.2 MM
Block No.:
21 Blocks
Line Speed:
Max 1800 M/MIN
Take Up Motor:
11 KW
Take Up Capacity:
200 KGS
Voltage:
380V To 480V, 3 Phase
Frequency:
50Hz / 60Hz
Product Description

Power Supply Cord Wire Drawing Machine Automatic Drawing Equipment



Introduction



Precautions for production process of wire drawing machine



Due to the continuous production of copper wire drawing machine equipment, the wire drawing speed will gradually be out of sync with annealing, resulting in intermittent and irregular changes in wire diameter due to the fast and slow traction speed during wire drawing.



The reasons for this phenomenon are as follows:

1 • Wear caused by long-term use of main motor gearbox. This can make the constant speed wheel speed of wire drawing not match with the traction speed and take-up speed, so as to form the fine drawing of single wire.



2 • Instability of tension on the reel. There may be many places where air pressure is used in the production workshop, which will cause the air pressure of the air pump of the wire drawing machine to vary from time to time, which makes the tension of the wire accumulator not constant. However, due to the invariability of the take-up speed, the tension of the wire drawing is not constant, which can cause the single wire deviation to be unable to be accurately controlled.



3 • Chatter of copper wire on annealing wheel. This makes the copper wire anneal in the state of loose and tight "the current density of annealing is large and small", and the strength of the copper wire at higher speed is t imitation low. Therefore, it is easy to cause the copper wire to ignite on the annealing wheel, so that the wire diameter on the surface of the copper wire is uneven due to the action of sparks.



Technical Parameters



Name Specs
I/P wire range 2.6mm - 3.0mm
O/P wire range 0.4mm - 1.2mm
Drawing dies 21 dies
Final capstan Φ 250 mm
Drawing lubrication Lubrication by full immersion
Take up bobbin size 500mm - 630mm
Mechanical elongation 1st to 20th:18.4%,  21st: 15%
Power consumption 30 - 65 kW
Machine dimensions L11000 x W5000 x H4000 (mm)
Machine weight 5000 kg

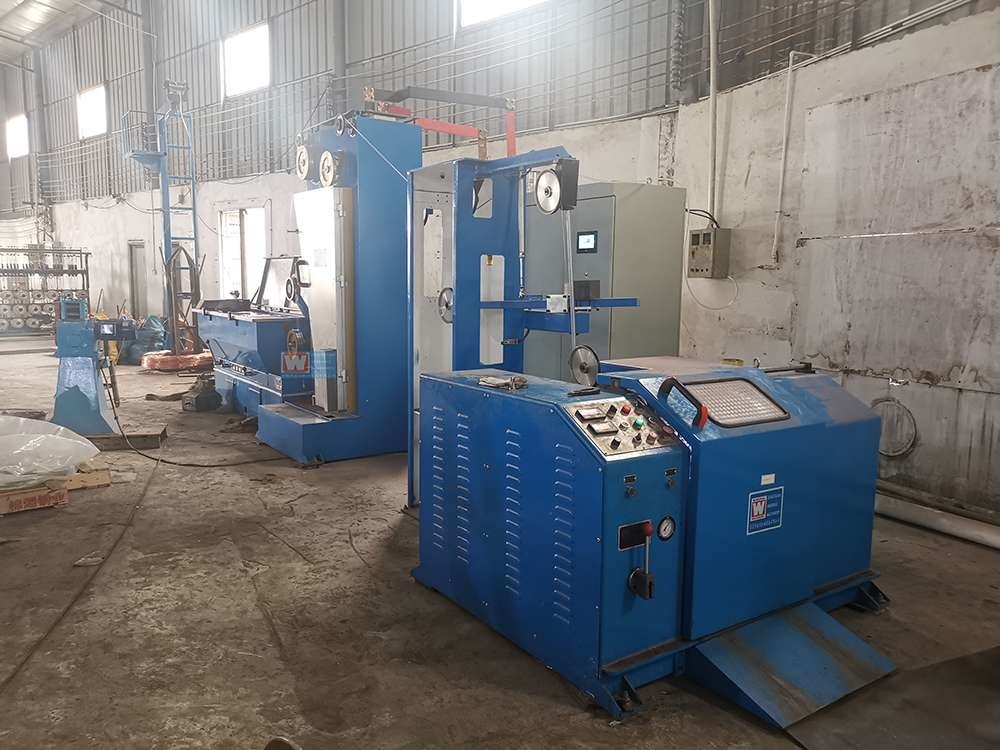

Details Picture



380V-480V Wire Drawing Equipment , Antiwear Electric Wire Making Machine 0



Download Center

Intermediate Wire Drawing Machine with Single Spoo...

Note: Please click above link to download our detailed machine technical specifications.



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



380V-480V Wire Drawing Equipment , Antiwear Electric Wire Making Machine 1



Our Workshop



380V-480V Wire Drawing Equipment , Antiwear Electric Wire Making Machine 2380V-480V Wire Drawing Equipment , Antiwear Electric Wire Making Machine 3380V-480V Wire Drawing Equipment , Antiwear Electric Wire Making Machine 4



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
