Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: ZL250A07
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 30 to 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Set/Month
I/P Wire Diameter: |
2.6 - 3.0 MM |
O/P Wire Diameter: |
0.4 - 1.2 MM |
Block No.: |
21 |
Main Speed: |
1800 M/MIN Max |
Capstan Diameter: |
250 MM |
Take Up Volume: |
200 KG Max |
Voltage: |
380V - 480V, 3 Phase |
Frequency: |
50/60 Hz |
I/P Wire Diameter: |
2.6 - 3.0 MM |
O/P Wire Diameter: |
0.4 - 1.2 MM |
Block No.: |
21 |
Main Speed: |
1800 M/MIN Max |
Capstan Diameter: |
250 MM |
Take Up Volume: |
200 KG Max |
Voltage: |
380V - 480V, 3 Phase |
Frequency: |
50/60 Hz |
Electrical Wire Drawing Machine For Different Gauges
Introduction
Safety operation specification for wire drawing machine
1. The working area of the wire drawing machine shall be kept clean and tidy within one meter without obstacles to prevent falling, falling and tripping on the machine.
2. Before the operation of the wire drawing machine, check whether the electrical equipment is normal, and repair and replace the fault in time. When starting the machine, pay attention to the operation to prevent knotting or pulling off and damaging the tooling equipment.
3. When welding copper and aluminum rods, they shall comply with the safety operation specifications of the welding machine, wear protective glasses, and stand on the wooden base plate and on the side of the welding machine to prevent electric shock and scald.
4. During the drawing process of the wire drawing machine, when the end or middle of one pole wire is broken, it is not allowed to connect the connector under the drum by hand, and it is not allowed to adjust the wire arrangement of the take-up reel on the front.
5. After the copper and aluminum rods pass through the mold, insert them into the snake kaiyaogan, and insert the pin tightly. Before driving, the snake tong head must be placed on the pull plate flatly, otherwise the equipment is not allowed to start.
6. The personnel who master the clutch and switch must listen to the password of the personnel who master the disc pulling before pushing on the clutch (must be pushed down at one time) to prevent the chain from hurting the human body.
7. When the machine is running, it is forbidden to do cleaning or adjustment and repair work on the machine.
8. Don't make trouble or leave the machine at will during working hours. When setting out and knotting, it is strictly prohibited to start the machine for "rescue" and stop the machine immediately for treatment.
Technical Parameters
| Name | Specs | ||||||
| Incoming wire range | 2.6mm to 3.0mm | ||||||
| Outgoing wire range | 0.4mm to 1.2mm | ||||||
| Die number | 21 dies | ||||||
| Die dimension | Φ25mm × 8 - 13mm (thickness) | ||||||
| Take-up control | Double frequency conversion tension control | ||||||
| Take up spool size | 500mm / 630mm | ||||||
| Elongation rate | 1st - 20th:18.4% + 21st: 15% | ||||||
| Main motor power | 55 kw AC motor | ||||||
| Machine dimension | L11000 x W5000 x H4000 mm | ||||||
| Equipment weight | 5000 kgs | ||||||

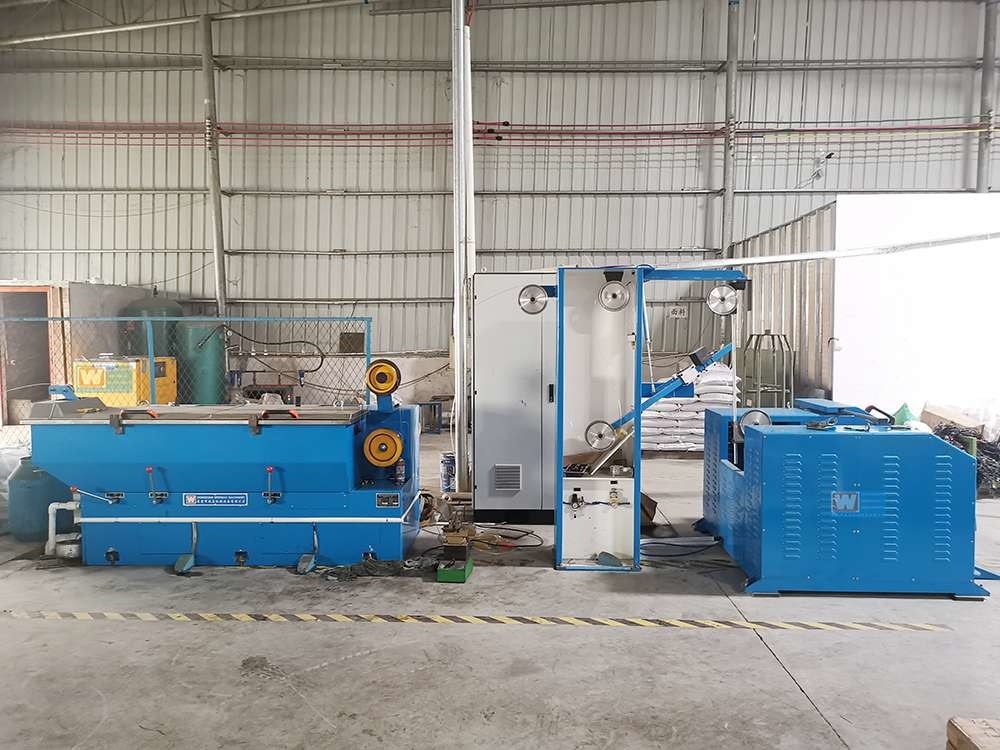

Details Picture
Download Center
Intermediate Wire Drawing Machine with Single Spoo...
Note: Please click above link to download our detailed machine technical specifications.
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
