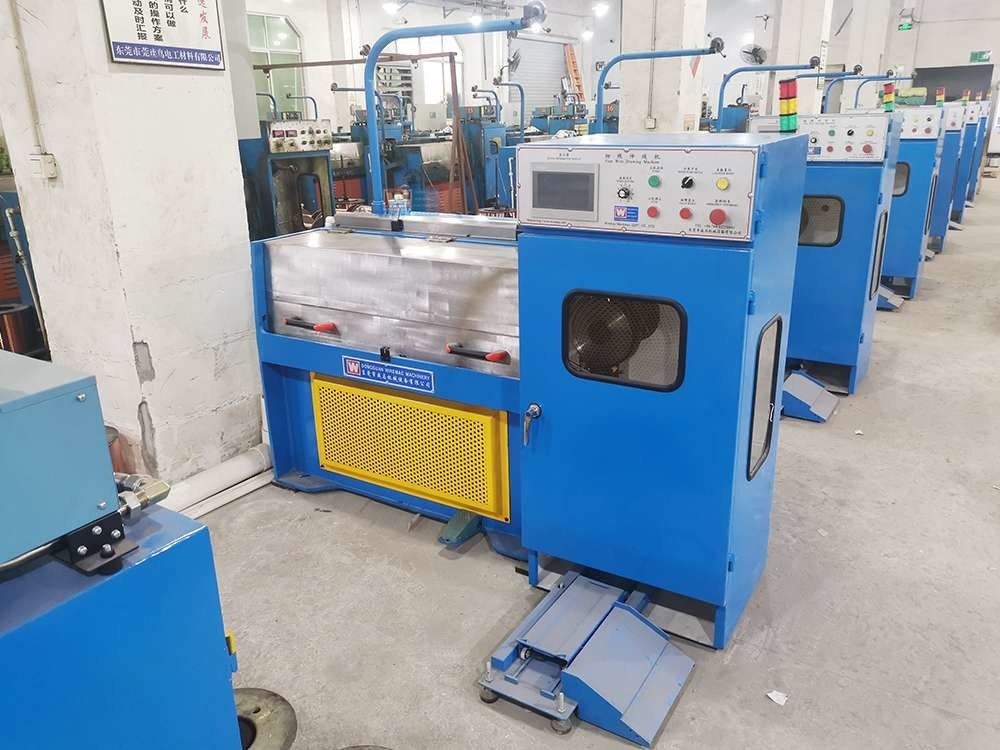

Durable Super Fine Wire Drawing Machine Anticorrosive Lubrication Type

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: 24DHA50

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Plywood Case

Delivery Time: 20-35 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Set/Month

Get Best Price
Product Details
High Light:

2800MM Copper Drawing Machine

,

Anticorrosive Copper Drawing Machine

,

1650MM Super Drawing Machine

I/P Diameter:
Φ0.80 - 1.20MM
O/P Diameter:
Φ0.08 - 0.32MM
Drawing Dies:
24
Line Speed:
2500 M/min Max
Main Components:
Imported Famous Brand
Machine Power:
8 KW To 18 KW
Machine Dimension:
L2800 X W1500 X H1650 MM
Machine Weight:
2200 KGS
I/P Diameter:
Φ0.80 - 1.20MM
O/P Diameter:
Φ0.08 - 0.32MM
Drawing Dies:
24
Line Speed:
2500 M/min Max
Main Components:
Imported Famous Brand
Machine Power:
8 KW To 18 KW
Machine Dimension:
L2800 X W1500 X H1650 MM
Machine Weight:
2200 KGS
Product Description

Durable Super Fine Wire Drawing Machine Anticorrosive Lubrication Type



Introduction



The utility model discloses a copper wire drawing machine, which comprises a wire drawing die box, the wire inlet of the wire drawing die box is correspondingly provided with a paying off device, the paying off device comprises a column fixed on the frame, the upper part of the column is bent into a horizontal section, the end of the horizontal section is fixed with a wire wheel, and the frame below the wire wheel is fixed with a wire disc support; The wire take-up device shall be set at the outlet of the wire drawing die box; The upper part of the ring and the lower part of the ring are connected with two fixed rings.



Compared with the prior art, the utility model adopts an external take-up device, eliminates the vertical box, makes the structure simple and compact, occupies small space, and is convenient for workers to operate and maintain. By adjusting the adjusting nut block at the top of the friction disc, the pressing force of the compression spring on the friction disc can be adjusted, and then the rotation flexibility of the drum can be adjusted to adjust the tightness of wire winding.



Technical Parameters



Item Specs
Die specification Φ25mm × 8 - 13mm (thickness)
Direction of Machine Right hand or left hand
Drawing lubrication type Spray type
Take up control

Double frequency conversion automatic tension control

Main motor power 15kW-4P AC motor
Take up spooling size Φ300mm
Elongation 13%(1st - 23rd) + 8.7%(24th)
Take-up motor 4kw-4P / 5.5kw AC motor
Power supply 380V to 480V, 50Hz / 60Hz, 3 Phase



Download Center



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



Durable Super Fine Wire Drawing Machine Anticorrosive Lubrication Type 0



Our Workshop



Durable Super Fine Wire Drawing Machine Anticorrosive Lubrication Type 1Durable Super Fine Wire Drawing Machine Anticorrosive Lubrication Type 2Durable Super Fine Wire Drawing Machine Anticorrosive Lubrication Type 3



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
