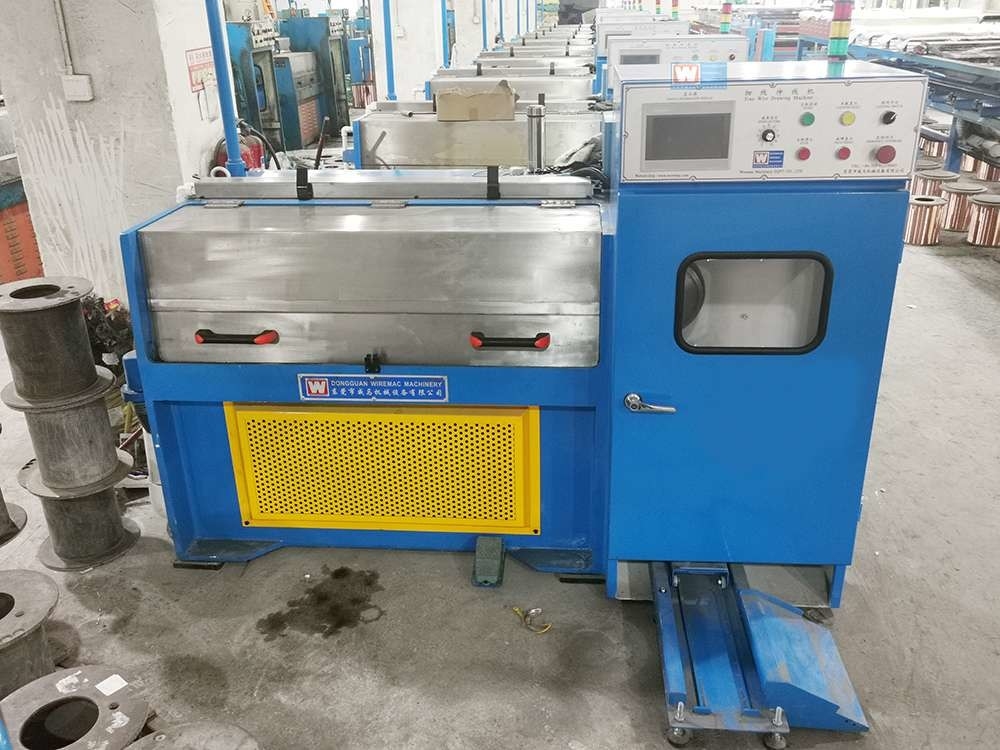

24 Dies High Speed Fine Wire Drawing Machine With PLC Control

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: 24DHA42

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Plywood Case

Delivery Time: 20-35 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Set/Month

Get Best Price
Product Details
High Light:

NSK Wire Drawing Machines

,

3Phase Wire Drawing Machines

,

Welding Electrode Making Machine

Incoming Wire:
0.80 To 1.20 MM
Outgoing Wire:
0.08 To 0.32 MM
Drawing Dies:
24 Pcs
Machine Speed:
2200 M/min, Max
Bearing:
NSK / SKF
Take Up Volume:
50 KG
Machine Size:
L2800 X W1500 X H1650 MM
Machine Weight:
2200 KGS
Incoming Wire:
0.80 To 1.20 MM
Outgoing Wire:
0.08 To 0.32 MM
Drawing Dies:
24 Pcs
Machine Speed:
2200 M/min, Max
Bearing:
NSK / SKF
Take Up Volume:
50 KG
Machine Size:
L2800 X W1500 X H1650 MM
Machine Weight:
2200 KGS
Product Description

24 Dies High Speed Fine Wire Drawing Machine With PLC Control



Introduction



The utility model discloses a small copper wire drawing machine, which comprises a clamping shell, a through hole is opened in the middle of the clamping shell, and a core shell is clamped in the through hole, a forming hole is opened on the inner side of the left part of the core shell, a cutting edge is integrally formed at the right end of the forming hole, a table hole is opened on the inner side of the right part of the core shell, a separation edge is clamped at the left end of the table hole, and a backup plate is integrally formed at the right end of the separation edge, The inner side of the backing plate is clamped with a moving blade; Through the separation edge, the original whole is stripped and separated, so as to reduce the resistance in wire drawing and reduce the probability of wire interruption in the drawing process. At the same time, through the activity characteristics of the moving edge, the micro adjustment can be made according to the change of the diameter of the copper wire in the drawing process, so as to reduce the occurrence of jamming.



Technical Parameters



Item Specs
Inlet wire diameter 0.80 - 1.20 mm
Output wire diameter 0.08 - 0.32 mm
Production speed 2200 m/min
Drawing passes 24
Transmission belt Habasit brand
Brake type Electromagnetic brake
Mechanical elongation 15%(1st - 23rd) + 8.7%(24th)
Take-up spool 300 mm
Power consumption 8 - 18 KW
Power supply 380V to 480V, 50Hz / 60Hz, 3 Phase
