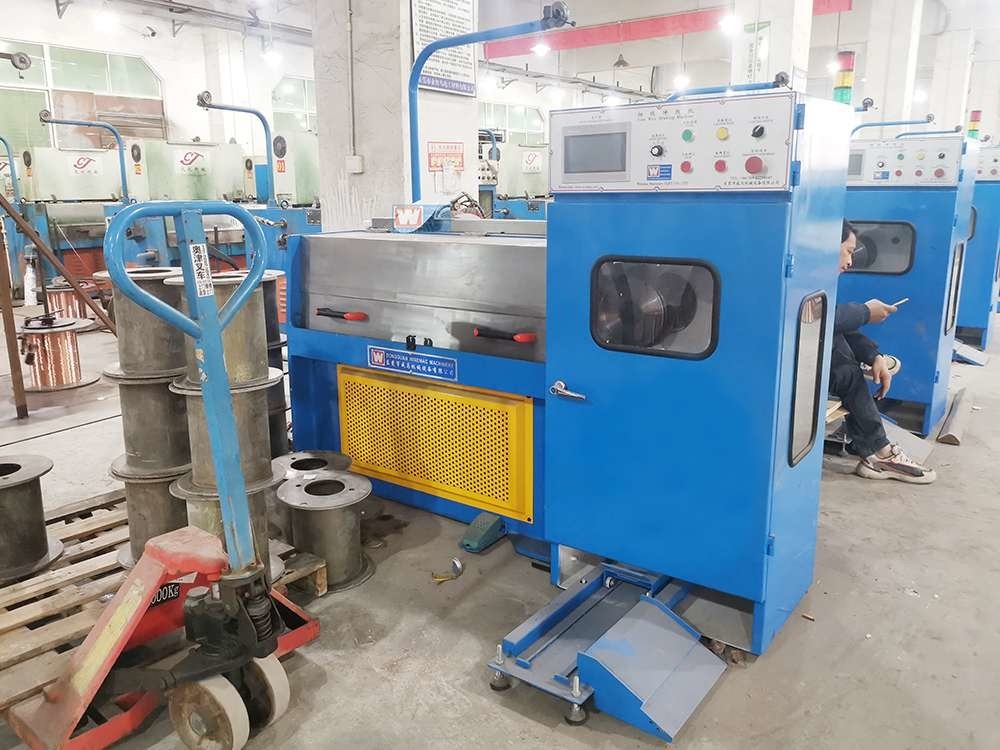

24D Bare Copper Wire Drawing Machine With Pneumatic Brake
Introduction
The utility model discloses a small high-speed copper wire drawing machine, which comprises a frame, an inlet, an outlet and a controller. The frame is provided with a guide wheel group, a mold frame and a tower wheel group, the frame between the inlet and the guide wheel group is provided with a conductor wheel, and the frame between the tower wheel group and the outlet is provided with a constant tension device, The positions of the inlet and outlet are respectively provided with inlet and outlet sensors.
The tower wheel group is connected with the driving motor through the coupling, the guide wheel group is connected with the tower wheel group through the chain drive, and the driving motor, inlet sensor and outlet sensor are respectively connected with the controller.
The beneficial effect of the utility model is that the structural design is reasonable, and the driving motor directly drives the tower wheel group, The transmission structure is simplified, the transmission is more stable, the drawing quality is improved and the power consumption is saved; The incoming sensor and outgoing sensor can effectively monitor the disconnection of incoming and outgoing lines in real time, so as to improve the intelligence of the machine; The structure is simplified, convenient for maintenance, and reduces the cost of production and maintenance.
Technical Parameters
| Item | Specs | ||||||
| Incoming wire diameter | 0.80 mm - 1.20 mm | ||||||
| Outgoing wire diameter | 0.08 mm - 0.32 mm | ||||||
| Running speed | Max. 2200 m/min | ||||||
| No. of drawing dies | 24 | ||||||
| Main motor power | 15 KW - 4P | ||||||
| Brake type | Pneumatic brake | ||||||
| Mechanical elongation rate | 15%(1st - 23rd) + 8.7%(24th) | ||||||
| Take-up reel | 300 mm | ||||||
| Power consumption | 8 - 18 KW | ||||||
| Power supply | 380V to 480V, 50Hz / 60Hz, 3 Phase | ||||||
