Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: 24DHACO15
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 20-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Month
Inlet Wire: |
0.8 To 1.2 MM |
Outlet Wire: |
0.08 To 0.32 MM |
Max Running Speed: |
2500 M/min |
Total Motor Power: |
18 KW (AC) |
Number Of Blocks: |
24 |
Main Parts: |
SKF, Schneider, Siemens |
Machine Dimension: |
L2800 X W1500 X H1650 MM |
Machine Weight: |
2250 KG |
Inlet Wire: |
0.8 To 1.2 MM |
Outlet Wire: |
0.08 To 0.32 MM |
Max Running Speed: |
2500 M/min |
Total Motor Power: |
18 KW (AC) |
Number Of Blocks: |
24 |
Main Parts: |
SKF, Schneider, Siemens |
Machine Dimension: |
L2800 X W1500 X H1650 MM |
Machine Weight: |
2250 KG |
Spray Type 300mm Automatic Coiler Copper Wire Drawing Machine
Introduction
Startup steps
1. Close the power switch.
2. The inching operation is adopted, and the threading die passes through the sizing in turn to the take-up reel.
3. start the equipment, slow up the speed, observe the synchronization of the main engine and the take-up line. If there is no synchronization, press (stop) key, after shutdown, adjust and restart.
4. Observe the wire arrangement and avoid wire stacking or wire collapse at both ends of the take-up reel. If necessary, adjust the limit switch of wire arrangement to make the wire arrangement uniform.
5. Annealing voltage adjustment: in the automatic tracking state, changing the "annealing coefficient" can change the annealing voltage online, increase the annealing coefficient, the annealing voltage increases, otherwise, the annealing voltage decreases. In the manual state, changing the "annealing voltage" can change the annealing voltage online.
6. Normal shutdown: press the < shutdown > key, or set the meter length to, and the host starts to slow down until shutdown.
7. Precautions after wire break: in case of wire break during operation, stop the machine first. After the wire drawing machine stops, check the wire break position. If it is in the annealing part, disconnect the annealing power supply first, and then open the annealing door for threading.
8. Emergency stop: an emergency stop button is installed on the take-up operation panel of the console. In case of emergency, press the emergency stop button and take-up brake. After returning to normal, turn the emergency stop button in reverse to make it pop up. Otherwise, the take-up is always in the holding brake state.
Technical Parameters
| Item | Specs | ||||||
| Inlet wire range | 0.8 mm to 1.2 mm | ||||||
| Outlet wire range | 0.08 mm to 0.32 mm | ||||||
| Production speed | Max 2500 m/min | ||||||
| Block No. | 24 | ||||||
| Dimension of blocks | Φ25mm x 8 - 13mm (thickness) | ||||||
| Wire drawing lubrication | Spray type | ||||||
| Take up capacity | Max 50 kg | ||||||
| Main motor power | 15kW-4P AC motor | ||||||
| Take-up motor power | 4kw-4P / 5.5kw AC motor | ||||||
| Take-up reel | 300 mm | ||||||
| Power supply | 380V to 480V, 50Hz or 60Hz | ||||||
| Machine size | L2800 x W1500 x H1650 mm | ||||||
| Machine weight | 2250 kgs | ||||||
Download Center
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.

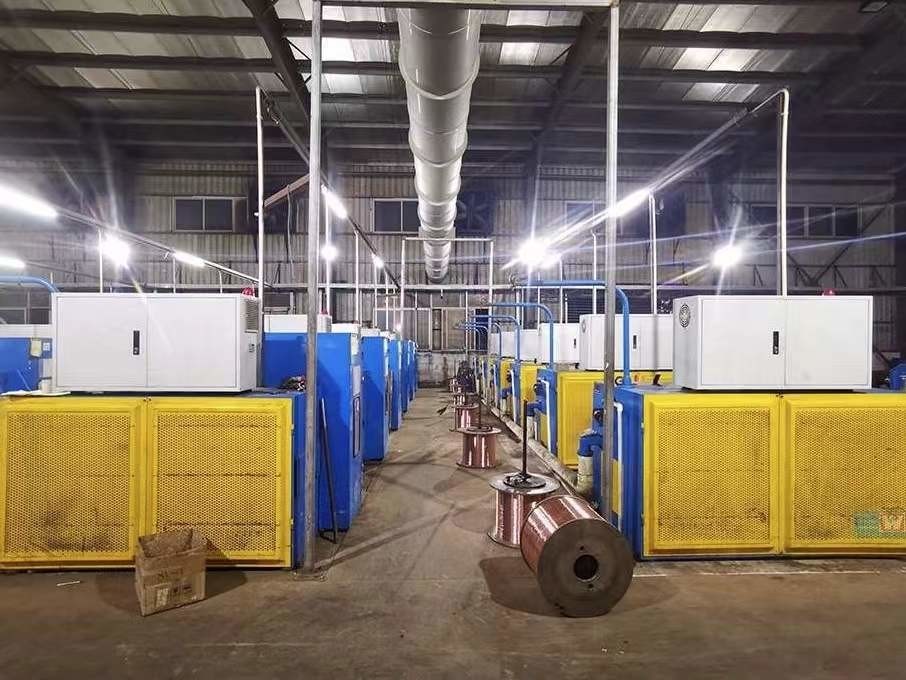

Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
