Second Hand Copper Wire Manufacturing Machine , 24 Block Cable Making Equipment

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: 24DHACO9

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 20-35 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Set/Month

Get Best Price
Product Details
High Light:

Enameled Copper Wire Manufacturing Machine

,

24Block Copper Wire Manufacturing Machine

,

2250kg Cable Making Equipment

Inlet Wire:
0.8 To 1.2 MM
Outlet Wire:
0.08 To 0.32 MM
Max Running Speed:
2500 M/min
Total Motor Power:
18 KW (AC)
Number Of Blocks:
24
Main Parts:
SKF, Schneider, Siemens
Machine Dimension:
L2800 X W1500 X H1650 MM
Machine Weight:
2250 KG
Inlet Wire:
0.8 To 1.2 MM
Outlet Wire:
0.08 To 0.32 MM
Max Running Speed:
2500 M/min
Total Motor Power:
18 KW (AC)
Number Of Blocks:
24
Main Parts:
SKF, Schneider, Siemens
Machine Dimension:
L2800 X W1500 X H1650 MM
Machine Weight:
2250 KG
Product Description

Second Hand Copper Wire Manufacturing Machine , 24 Block Cable Making Equipment


Introduction



Solution to surface oxidation of single wire pulled out by wire drawing machine:



Regularly check whether the equipment for cooling circulating water operates normally and whether the cooling effect is normal; Add substances that can increase the concentration of saponification solution in the sealing chamber at a certain time, so as to change the content of saponification solution in cooling water and ensure the normal operation of monofilament on the guide wheel; Regularly check whether the water pressure of circulating water is normal, and constantly change the pressure and amount of cooling water entering the sealing chamber according to the change of water pressure during production.


Technical Parameters



Item Specs
Inlet wire range 0.8 mm to 1.2 mm
Outlet wire range 0.08 mm to 0.32 mm
Production speed Max 2500 m/min
Block No. 24
Dimension of blocks Φ25mm x 8 - 13mm (thickness)
Wire drawing lubrication Spray type
Take up capacity Max 50 kg
Main motor power 15kW-4P AC motor
Take-up motor power 4kw-4P / 5.5kw AC motor
Take-up reel 300 mm
Power supply 380V to 480V, 50Hz or 60Hz
Machine size L2800 x W1500 x H1650 mm
Machine weight 2250 kgs



Download Center



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



Second Hand Copper Wire Manufacturing Machine , 24 Block Cable Making Equipment 0

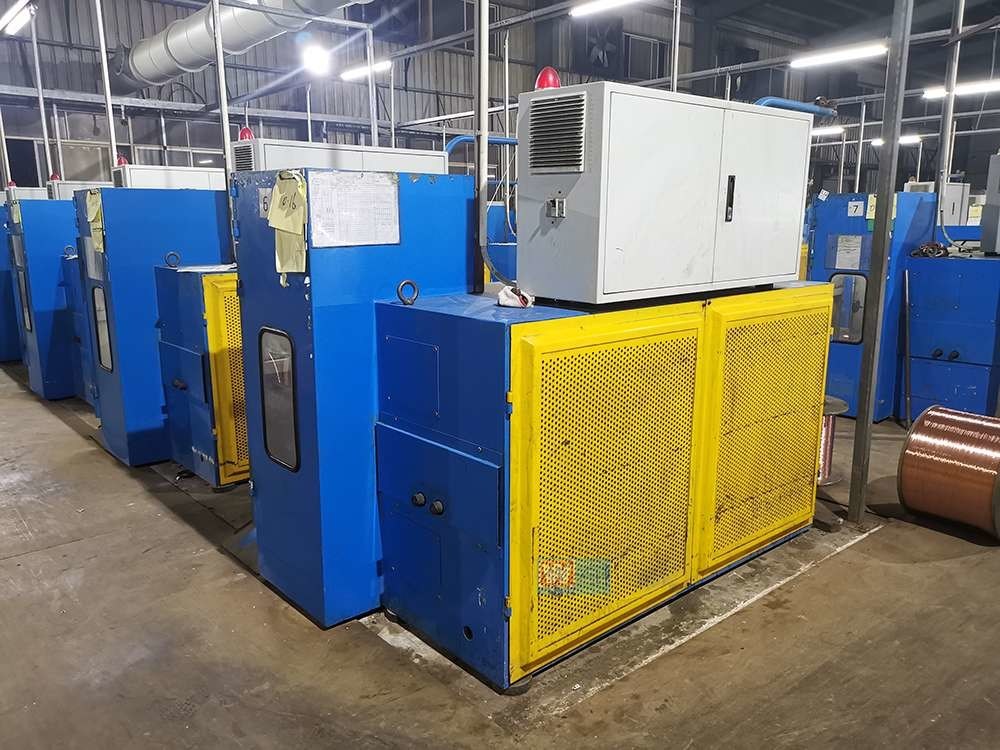

Our Workshop



Second Hand Copper Wire Manufacturing Machine , 24 Block Cable Making Equipment 1Second Hand Copper Wire Manufacturing Machine , 24 Block Cable Making Equipment 2Second Hand Copper Wire Manufacturing Machine , 24 Block Cable Making Equipment 3



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
