DONGGUAN WIREMAC MACHINERY EQPT. CO., LTD. andy@wiremac.com 86-0769-82706004
Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: 24DHACO2
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 20-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Month
Inlet Wire: |
0.8 To 1.2 MM |
Outlet Wire: |
0.08 To 0.32 MM |
Max Running Speed: |
2500 M/min |
Total Motor Power: |
18 KW (AC) |
Number Of Blocks: |
24 |
Main Parts: |
SKF, Schneider, Siemens |
Machine Dimension: |
L2800 X W1500 X H1650 MM |
Machine Weight: |
2250 KG |
Inlet Wire: |
0.8 To 1.2 MM |
Outlet Wire: |
0.08 To 0.32 MM |
Max Running Speed: |
2500 M/min |
Total Motor Power: |
18 KW (AC) |
Number Of Blocks: |
24 |
Main Parts: |
SKF, Schneider, Siemens |
Machine Dimension: |
L2800 X W1500 X H1650 MM |
Machine Weight: |
2250 KG |
Horizontal Type Copper Wire Drawing Equipment With High Output
Introduction
(1) For filaments with different wire diameters, there are different speed proportional relationships due to different friction. The speed ratio K value can be set and displayed through the parameter setting switch and button on the operation panel.
(2) Generally, the wire breaking judgment of wire drawing machine is determined according to the potential value of wire hanging copper rod. Because the grounding resistance of fine wire is large and easy to be affected by air flow, resulting in poor contact with copper rod, this method is very unreliable for the identification of broken wire of fine wire. The system designs the broken wire discrimination program, compares the speed signal of the wire guide wheel with the set value of the broken wire, judges according to the comparison results, and cooperates with the frequency converter to realize the rapid shutdown of the broken wire.
The system adopts PI regulation control mode and is realized by programmable controller, which improves the control accuracy of the system, meets the speed regulation requirements of different products, and greatly facilitates the equipment debugging. The control system has been running in the factory for more than a year and the effect is good. The application of PLC improves the automation degree and operation reliability of the system. The new generation of programmable controller can not only meet the conventional requirements of the control system, but also meet some special requirements (such as numerical operation, speed detection, pulse output, PWM control, numerical display, etc.), which will be more and more widely used in industrial production.
Technical Parameters
| Item | Specs | ||||||
| Inlet wire range | 0.8 mm to 1.2 mm | ||||||
| Outlet wire range | 0.08 mm to 0.32 mm | ||||||
| Production speed | Max 2500 m/min | ||||||
| Block No. | 24 | ||||||
| Dimension of blocks | Φ25mm x 8 - 13mm (thickness) | ||||||
| Wire drawing lubrication | Spray type | ||||||
| Take up capacity | Max 50 kg | ||||||
| Main motor power | 15kW-4P AC motor | ||||||
| Take-up motor power | 4kw-4P / 5.5kw AC motor | ||||||
| Take-up reel | 300 mm | ||||||
| Power supply | 380V to 480V, 50Hz or 60Hz | ||||||
| Machine size | L2800 x W1500 x H1650 mm | ||||||
| Machine weight | 2250 kgs | ||||||
Download Center
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.

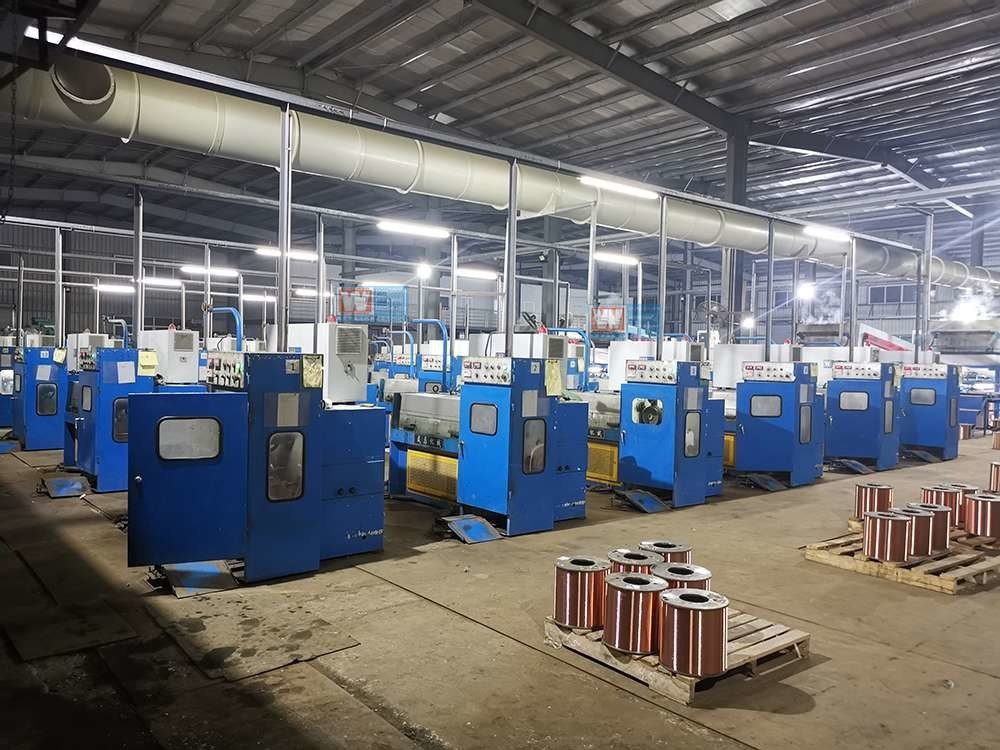

Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
