15 KW Wet Wire Drawing Machine For Fine Copper Wire
Introduction
Structural dimension of wire drawing dies
The die hole of the wire drawing die is composed of four parts:
(1) Inlet lubrication area: with circular arc, it is convenient for the wire to enter the working area.
(2) Working area: plastic deformation occurs during metal stretching, and the compression of wire section decreases.
(3) Sizing area: ensure the accuracy and uniformity of wire size and shape, and prolong the service life of the die.
(4) Exit area: at the outlet end, prevent the scratch of bamboo knots and the crack at the exit of sizing area during parking.
Requirements of wire drawing on die
(1) Each area of the die hole shall be smooth without cracks and pits.
(2) The center line of the die hole shall be perpendicular to the end face of the die.
(3) The working area and sizing area must be polished after grinding.
Technical Parameters
Machine Specs | 24DHA32 | ||||||
Inlet wire | 0.80 to 1.20 mm | ||||||
Outlet wire | 0.08 to 0.32 mm | ||||||
Speed | Max. 2200 m/min | ||||||
No. of dies | 24 | ||||||
Main motor power | 15 KW - 4P | ||||||
Brake | Pneumatic brake | ||||||
Mechanical elongation | 15%(1st - 23rd) + 8.7%(24th) | ||||||
Take-up reel | 300 mm / 400 mm | ||||||
Power consumption | 12 - 30 KW | ||||||
Power supply | 380V to 480V, 50Hz / 60Hz, 3 Phase |

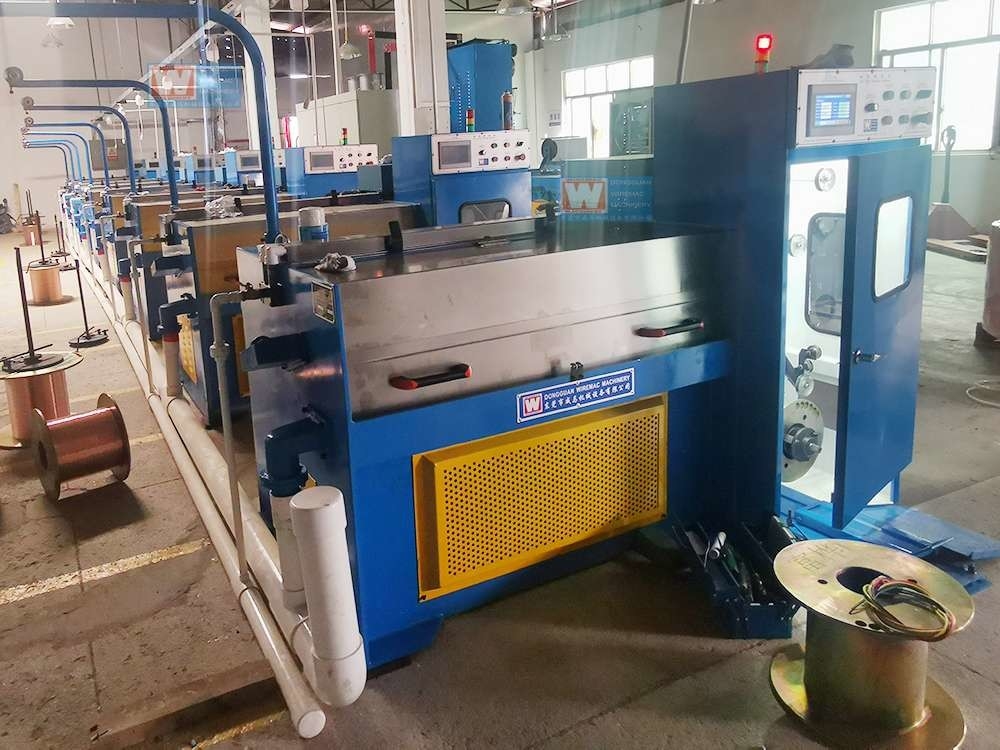

Machine Photo
