Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: 24DHA30
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Plywood Case
Delivery Time: 20-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Month
Inlet Diameter: |
0.80 To 1.20 MM |
Outlet Diameter: |
0.08 To 0.32 MM |
Dies: |
24 |
Max. Speed: |
2200 M/min |
Final Capstan: |
206 MM |
Take Up Capacity: |
60 KG Max |
Machined Imension: |
L3100 X W1200 X H2000 MM |
Machine Weight: |
3000 KGS |
Inlet Diameter: |
0.80 To 1.20 MM |
Outlet Diameter: |
0.08 To 0.32 MM |
Dies: |
24 |
Max. Speed: |
2200 M/min |
Final Capstan: |
206 MM |
Take Up Capacity: |
60 KG Max |
Machined Imension: |
L3100 X W1200 X H2000 MM |
Machine Weight: |
3000 KGS |
Automatic CCA Wire Drawing Machine , Good Quality Copper Wire Manufacturing Machine
Introduction
Basic requirements for lubricants
(1) Good adhesion, the lubricant can effectively adhere to the surface of the drawn wire.
(2) It can bear the high pressure between wire rod and die, and has good thermal stability.
(3) No corrosion.
(4) Good cooling effect.
(5) No pungent smell.
(6) Easy to remove after drawing.
Lubrication type
(1) Dispersed lubrication of single die groove
It is mainly used for one-time wire drawing machine or non sliding accumulation multi-mode wire drawing machine. It has no limit on the form of lubricant. The circulating water in the mold groove plays the role of cooling. Since the die groove is open, the lubricant condition can be directly observed for easy adjustment. However, it is easy to dirty the equipment and site.
(2) Immersion lubrication
It is suitable for sliding continuous drawing machine by using emulsion strong and liquid oil like lubricant. The lubricant is contained in the special groove of the wire drawing machine, and the drum, line segment and die are immersed in the lubricant. The structure is simple and can ensure the continuous lubrication and cooling of the die, drum and wire rod.
Its disadvantage is that the metal chips produced in the wire drawing process are not likely to precipitate, and are constantly brought into the die hole and drum, affecting the service life of the die and drum, as well as the quality of the wire surface. The lubricating groove needs a cooling device to prevent the temperature of the lubricating fluid from being too high.
(3) Circulating lubrication system
On the sliding continuous wire drawing machine, ensure that the lubricating fluid has a fixed composition and a certain temperature, which can be used alone or several wire drawing machines. Its advantage is that the metal chips in the lubricating fluid can be fully precipitated and cleaned regularly, which can ensure the cleanliness of the lubricating fluid. Its disadvantage is to analyze the lubricating fluid irregularly and supplement the lubricant in time.
Technical Parameters
Machine Specs | 24DHA30 | ||||||
Inlet wire | 0.80 to 1.20 mm | ||||||
Outlet wire | 0.08 to 0.32 mm | ||||||
Speed | Max. 2200 m/min | ||||||
No. of dies | 24 | ||||||
Main motor power | 15 KW - 4P | ||||||
Brake | Pneumatic brake | ||||||
Mechanical elongation | 15%(1st - 23rd) + 8.7%(24th) | ||||||
Take-up reel | 300 mm / 400 mm | ||||||
Annealing voltage | 70V DC | ||||||
Power consumption | 12 - 30 KW | ||||||
Power supply | 380V to 480V, 50Hz / 60Hz, 3 Phase |

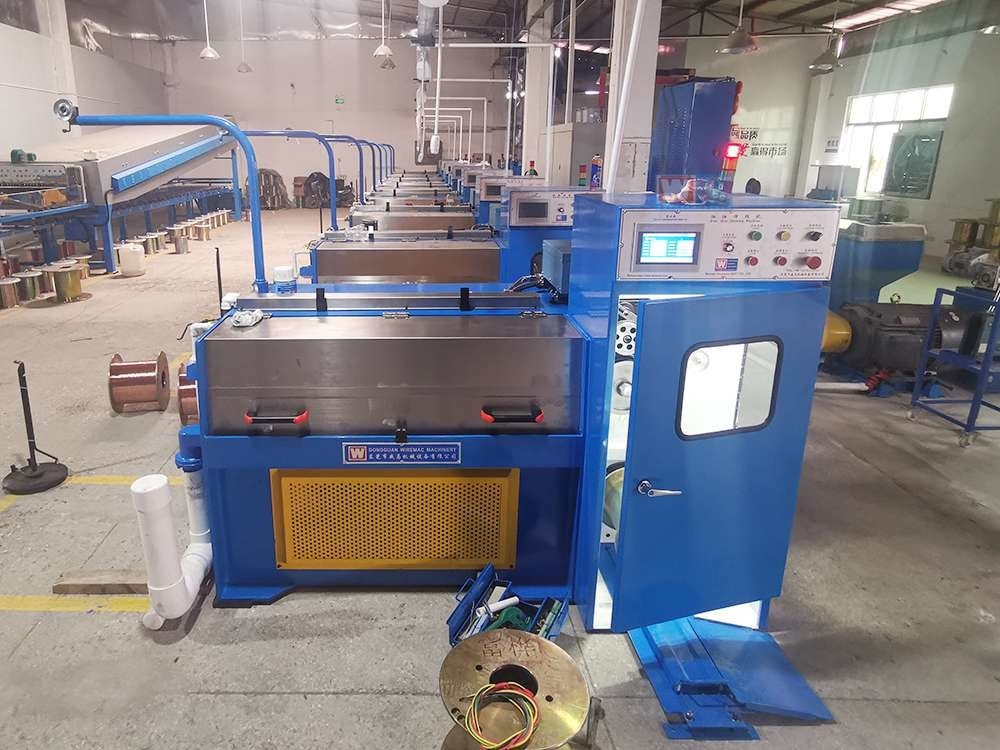

Machine Photo
Download Center
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
