Quality Certified CCA Wire Drawing Machine 0.08 MM to 0.32 MM

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: 24DHA29

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Plywood Case

Delivery Time: 20-35 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Set/Month

Get Best Price
Product Details
High Light:
Inlet Diameter:
0.80 To 1.20 MM
Outlet Diameter:
0.08 To 0.32 MM
Dies:
24
Max. Speed:
2200 M/min
Final Capstan:
206 MM
Take Up Capacity:
60 KG Max
Machined Imension:
L3100 X W1200 X H2000 MM
Machine Weight:
3000 KGS
Inlet Diameter:
0.80 To 1.20 MM
Outlet Diameter:
0.08 To 0.32 MM
Dies:
24
Max. Speed:
2200 M/min
Final Capstan:
206 MM
Take Up Capacity:
60 KG Max
Machined Imension:
L3100 X W1200 X H2000 MM
Machine Weight:
3000 KGS
Product Description

Quality Certified CCA Wire Drawing Machine 0.08 MM to 0.32 MM



Introduction



Influence factors of lubricant on wire drawing



(1) Concentration. The high concentration of lubricant improves its lubrication. The friction coefficient between metal wire and die hole wall is small, the corresponding friction force is also reduced, and the tensile force is reduced. However, if the concentration is too high, the viscosity of the lubricant also increases, and its flushing effect decreases.



The metal chips in the die hole are not easy to take away, resulting in poor surface quality of the wire rod. If the concentration is too high, the metal chips will not precipitate and suspend in the lubricant, but affect the lubrication effect.



(2) Temperature. The temperature of the lubricating fluid is too high and loses its cooling effect, which increases the temperature of the metal wire rod and die, oxidizes and discolors the wire rod, reduces the service life of the die, and also affects the strength of the grease lubricating film and reduces the lubrication effect. If the temperature is too high, the lubricant viscosity increases, which is not conducive to stretching.



(3) Cleanliness. Mixing acids into the lubricant will cause the lubricant to layer and lose the lubricating effect. The increase of alkali content in lubricant will cause corrosion hazard to the metal wire after drawing. Solid impurities in the lubricant affect the lubrication system of the equipment, resulting in insufficient supply of lubricating fluid and reducing the role of the lubricant.



Technical Parameters



Machine Specs 24DHA29
Inlet wire 0.80 to 1.20 mm
Outlet wire 0.08 to 0.32 mm
Speed Max. 2200 m/min
No. of dies 24
Main motor power 15 KW - 4P
Brake Pneumatic brake
Mechanical elongation 15%(1st - 23rd) + 8.7%(24th)
Take-up reel 300 mm / 400 mm
Annealing voltage 70V DC
Power consumption 12 - 30 KW
Power supply 380V to 480V, 50Hz / 60Hz, 3 Phase

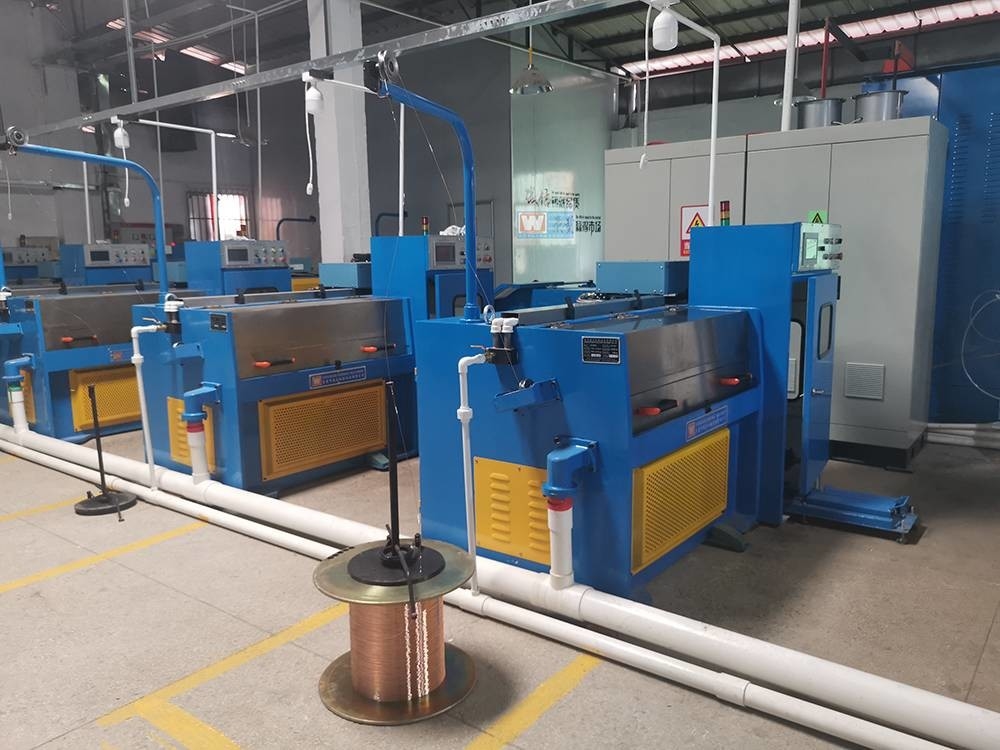

Machine Photo



Quality Certified CCA Wire Drawing Machine 0.08 MM to 0.32 MM 0



Download Center



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



Quality Certified CCA Wire Drawing Machine 0.08 MM to 0.32 MM 1



Our Workshop



Quality Certified CCA Wire Drawing Machine 0.08 MM to 0.32 MM 2Quality Certified CCA Wire Drawing Machine 0.08 MM to 0.32 MM 3Quality Certified CCA Wire Drawing Machine 0.08 MM to 0.32 MM 4



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
