Standard Model Fine Wire Drawing Machine At Low Price

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: 24DHA16

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Plywood Case

Delivery Time: 20-35 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Set/Month

Get Best Price
Product Details
High Light:
Inlet Diameter:
0.80 To 1.20 MM
Outlet Diameter:
0.08 To 0.32 MM
Dies:
24
Max. Speed:
2200 M/min
Final Capstan:
206 MM
Take Up Capacity:
60 KG Max
Machined Imension:
L3100 X W1200 X H2000 MM
Machine Weight:
3000 KGS
Inlet Diameter:
0.80 To 1.20 MM
Outlet Diameter:
0.08 To 0.32 MM
Dies:
24
Max. Speed:
2200 M/min
Final Capstan:
206 MM
Take Up Capacity:
60 KG Max
Machined Imension:
L3100 X W1200 X H2000 MM
Machine Weight:
3000 KGS
Product Description

Standard Model Fine Wire Drawing Machine At Low Price



Introduction



1. Wire drawing system



1.1 Rolling mill:

Use the opposite rotating cam group to thin the copper wire for threading.



1.2 Wire drawing box:



1.2.1 Wire drawing mould:



The wire drawing mold is cylindrical and placed on the side in the mold seat. The mold is composed of four areas:



Inlet area: introduce copper wire and lubricating fluid.



Working area: the area where the copper wire is deformed by tension.



Sizing area: the area where the size of copper wire is maintained.



Exit area: copper wire stress release area, i.e. wire diameter rebound area.



Wire drawing unit:

The molds in the pull box are arranged in series according to the routing direction and line passing position. The molds in each mold seat and the rear adjacent traction wheel (tower wheel) form a pull unit to realize the drawing process.



1.3 Lubrication system:



Function of wire drawing lubricant:

Lubrication: reduce the friction between the copper wire in the working area of the die and the contact surface of the die.

Cooling effect: take away the heat generated by friction and reduce the temperature of die and copper wire.

Cleaning function: wash off the copper chips falling during the deformation of copper wire.



Technical Parameters



Machine Specs 24DHA16
Inlet wire 0.80 to 1.20 mm
Outlet wire 0.08 to 0.32 mm
Speed Max. 2200 m/min
No. of dies 24
Main motor power 15 KW - 4P
Brake Pneumatic brake
Mechanical elongation 15%(1st - 23rd) + 8.7%(24th)
Take-up reel 300 mm / 400 mm
Annealing voltage 70V DC
Power consumption 12 - 30 KW
Power supply 380V to 480V, 50Hz / 60Hz, 3 Phase



Machine Photo

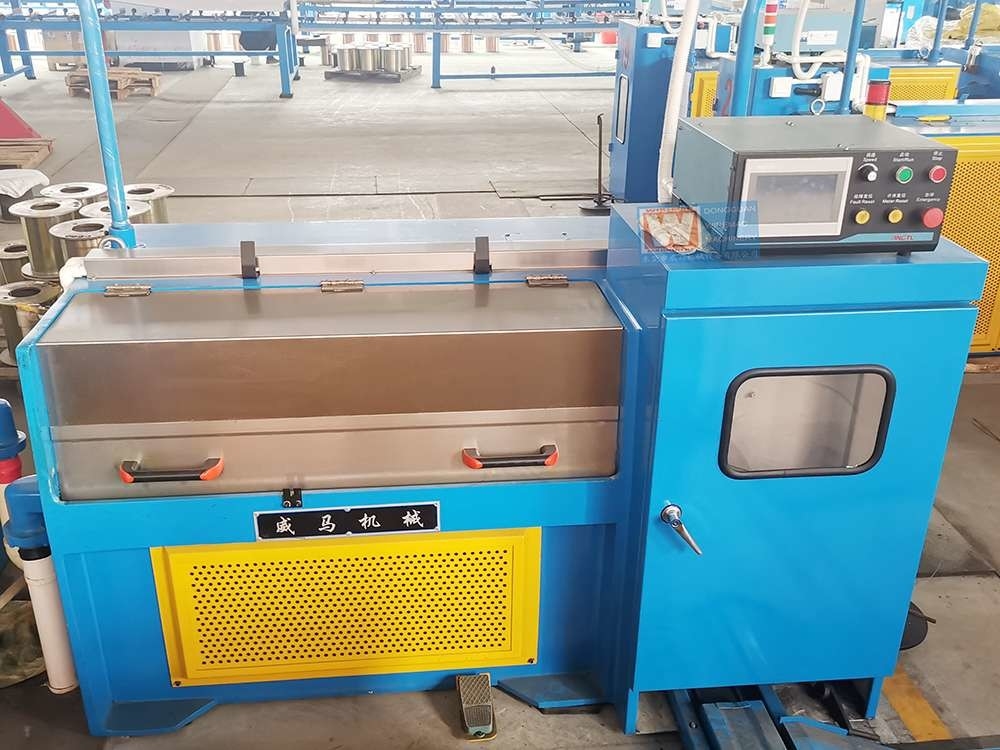

Standard Model Fine Wire Drawing Machine At Low Price 0
