DONGGUAN WIREMAC MACHINERY EQPT. CO., LTD. andy@wiremac.com 86-0769-82706004
Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: 24DHA14
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Plywood Case
Delivery Time: 20-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Month
Inlet Wire Range: |
0.8 MM To 1.2 MM |
Outlet Wire Range: |
0.08 MM To 0.32 MM |
Block Number: |
24 |
Max Speed: |
2200 M/min |
Inverter: |
Yaskawa, Japan |
Take Up Capacity: |
60 KG Max |
Machined Imension: |
L3100 X W1200 X H2000 MM |
Machine Weight: |
3000 KGS |
Inlet Wire Range: |
0.8 MM To 1.2 MM |
Outlet Wire Range: |
0.08 MM To 0.32 MM |
Block Number: |
24 |
Max Speed: |
2200 M/min |
Inverter: |
Yaskawa, Japan |
Take Up Capacity: |
60 KG Max |
Machined Imension: |
L3100 X W1200 X H2000 MM |
Machine Weight: |
3000 KGS |
Easy To Operate Tiny Wire Drawing Machine With PLC Control
Introduction
1. Working principle
The precursor is formed into finished products through the constant speed wheel group and the drawing die, and is transported to the take-up wheel through the wire guide wheel at a certain speed through the last constant speed wheel.
The wire drawing machine is to ensure that there is a certain tension between the constant speed wheel and the take-up wheel to complete the wire drawing process. The constant speed wheel set is driven by the main motor.
The speed depends on the product specification and the linear speed is also certain. The linear speed of the take-up reel increases with the increase of the diameter of the take-up reel.
In order to ensure a certain tension, that is, to maintain the same linear speed of wire feeding and winding, it is necessary to continuously reduce the speed of the winding wheel to ensure that the winding speed of the winding wheel is constant. The speed regulation of the take-up wheel is realized by the speed regulation motor.
2. Control requirements
(1) Tension control of filament: too fast and too high tension can easily lead to wire breakage; The winding speed is too slow and the tension is too small, which affects the production efficiency. High speed regulation accuracy is required.
(2) System adaptability: a wire drawing machine needs to process 10-70um filaments of different specifications, and different products have different tension control requirements.
Technical Parameters
| Machine Specs | 24DHA14 | ||||||
| Inlet wire diameter | 0.80 mm - 1.20 mm | ||||||
| Outlet wire diameter | 0.08 mm - 0.32 mm | ||||||
| Running speed | 2200 m/min | ||||||
| Number of blocks | 24 pcs | ||||||
| Take up power | 5.5kW-4P X 2 AC motor | ||||||
| Brake | Pneumatic | ||||||
| Mechanical elongation | 15%(1st - 23rd) + 8.7%(24th) | ||||||
| Take-up spool | 300 mm - 400 mm | ||||||
| Transmission shaft | made of 42CrMo | ||||||
| Power consumption | 12 - 30 KW | ||||||
| Power supply | 380V - 480V, 50Hz / 60Hz, 3 Phase | ||||||

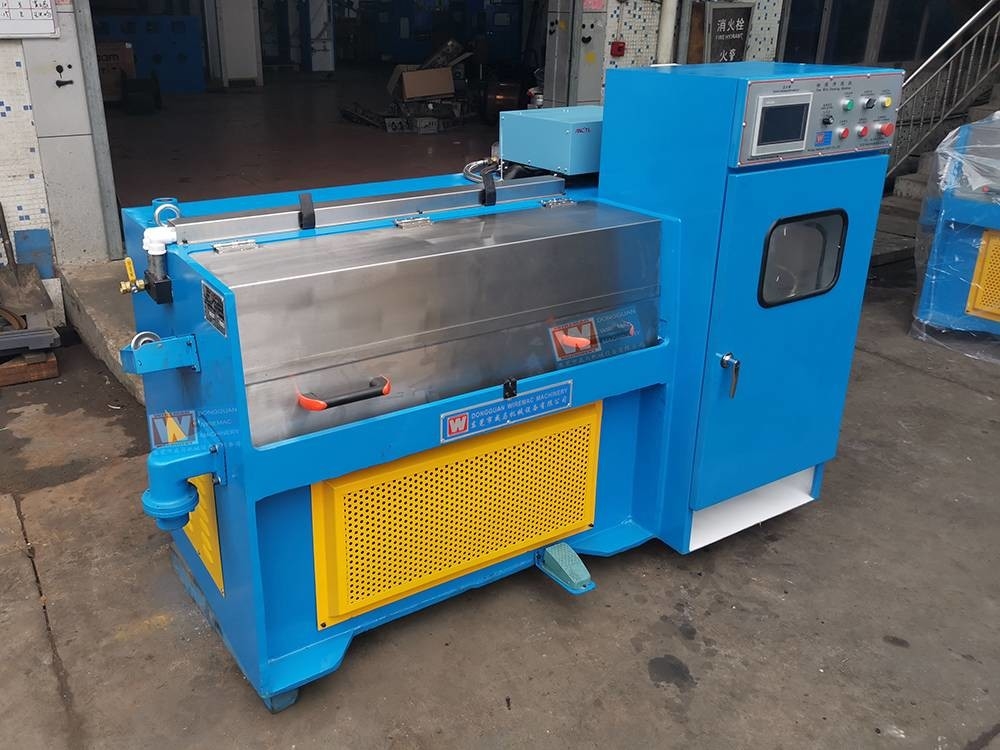

Machine Photo
