Most Advanced Multi Wire Drawing Machine With Competitive Price

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: 24DHA13

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Plywood Case

Delivery Time: 20-35 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Set/Month

Get Best Price
Product Details
High Light:
Inlet Wire:
0.8 - 1.2 MM
Outlet Wire:
0.08 - 0.32 MM
Die Number:
24
Machine Speed:
Max 2200 M/min
Final Capstan:
206 MM
Take Up Capacity:
60 KG Max
Machined Imension:
L3100 X W1200 X H2000 MM
Machine Weight:
3000 KGS
Inlet Wire:
0.8 - 1.2 MM
Outlet Wire:
0.08 - 0.32 MM
Die Number:
24
Machine Speed:
Max 2200 M/min
Final Capstan:
206 MM
Take Up Capacity:
60 KG Max
Machined Imension:
L3100 X W1200 X H2000 MM
Machine Weight:
3000 KGS
Product Description

Most Advanced Multi Wire Drawing Machine With Competitive Price



Introduction



Maintenance and precautions



1. Maintain the cleaning of all lubricating parts and fill lubricating oil regularly as required.



2. During the sanitation cleaning every Wednesday, all the tower wheels and mold bases in the machine shall be cleaned.



3. Clean the machine surface and around the machine body.



4. Every day, the staff on duty shall clean the start-up machine, maintenance machine and ground half an hour before work.



Safety knowledge



1. In case of emergency, turn off the main power supply first.



2. The protective door must be closed before operating the equipment.



3. Do not touch or enter the area of rotating and running parts.



4. Before any maintenance, ensure that all units have been disconnected from the power supply and the steam and gas supply pipelines are in good condition pressure state.



5. Disconnect the power switch before opening any control cabinet, control desk or other electrical connection box.



6. Do not press the electrical button with wet gloves to avoid electric shock. Do not press the button too hard to avoid damage.



Technical Parameters



Machine Specs 24DHA13
Inlet wire range 0.80 to 1.20 mm
Outlet wire range 0.08 to 0.32 mm
Equipment speed Max. 2200 m/min
Number of dies 24 pcs
Main power 15 KW
Brake Pneumatic
Mechanical elongation 15%(1st - 23rd) + 8.7%(24th)
Take-up bobbin 300 mm - 400 mm
Annealing voltage 70V DC
Power consumption 12 to 30 KW
Power supply 380V - 480V, 50Hz / 60Hz, 3 Phase

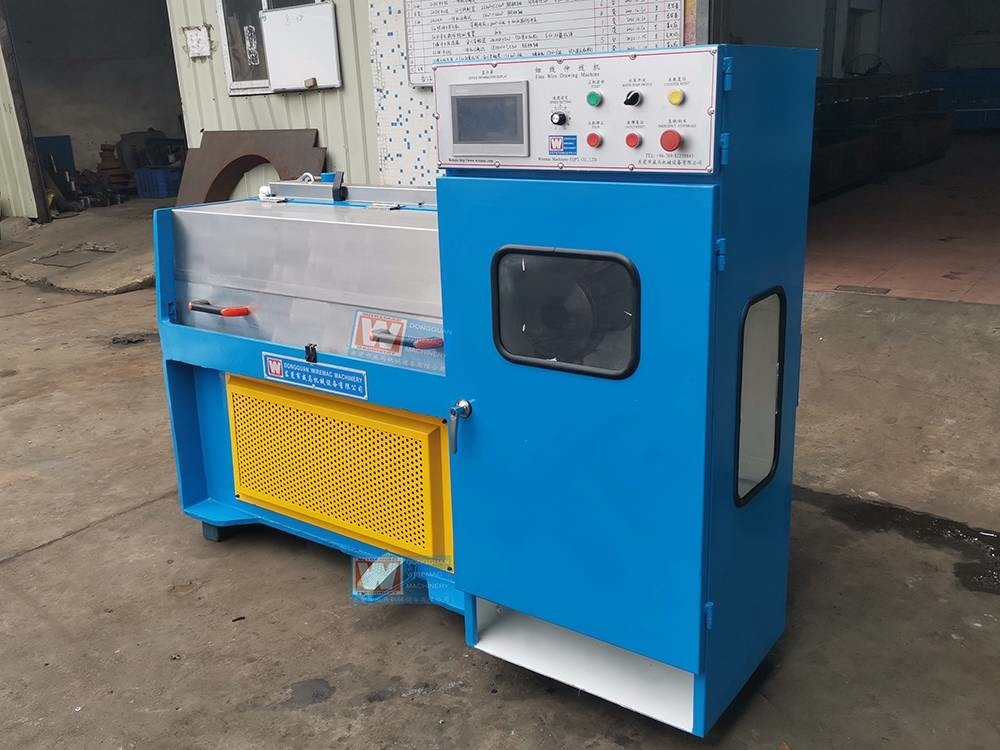

Machine Photo



Most Advanced Multi Wire Drawing Machine With Competitive Price 0



Download Center



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



Most Advanced Multi Wire Drawing Machine With Competitive Price 1



Our Workshop



Most Advanced Multi Wire Drawing Machine With Competitive Price 2Most Advanced Multi Wire Drawing Machine With Competitive Price 3Most Advanced Multi Wire Drawing Machine With Competitive Price 4



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
