0.4 To 1.6 Mm Durable Intermediate Wire Drawing Machine Heavy Duty 1800M/Min

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: ZL250A04

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30 to 50 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Month

Get Best Price
Product Details
High Light:

Carbon Steel Intermediate Wire Drawing Machine

,

Heavy Duty Intermediate Wire Drawing Machine

,

Durable Carbon Steel Wire Drawing Machine

Inlet Wire Range:
3.0 Or 2.60 MM
Outlet Wire Range:
0.40 To 1.60 MM
Drawing Die:
21
Drawing Block Size:
250 MM
Max Speed:
1800 M/MIN
Bobbin Size:
500 - 600 MM
Machine Dimension:
L28000 X W4200 X H5000 MM
Power Supply:
380V AC, 50Hz
Inlet Wire Range:
3.0 Or 2.60 MM
Outlet Wire Range:
0.40 To 1.60 MM
Drawing Die:
21
Drawing Block Size:
250 MM
Max Speed:
1800 M/MIN
Bobbin Size:
500 - 600 MM
Machine Dimension:
L28000 X W4200 X H5000 MM
Power Supply:
380V AC, 50Hz
Product Description

0.4 To 1.6 Mm Durable Intermediate Wire Drawing Machine Heavy Duty 1800M/Min

Introduction

There are many reasons for copper wire blackening and oxidation:

(1) The area of wire drawing emulsion oil pool is small, the return pipeline is short and sealed, resulting in slow heat dissipation and high emulsion oil temperature.

(2) It is caused by copper wire annealing. First, the cooling water for continuous pulling and retreating is generally tap water and groundwater. Because the water quality is different from place to place, the pH value of water quality in some areas is low, only 5.5 ~ 5.0 (normally 7.0 ~ 7.5). The antioxidant oil film in the original emulsion is cleaned, and the annealed copper wire is easy to oxidize and blacken; Second, the finished copper wire pulled by an ordinary wire drawing machine is annealed on another annealing line, and the cooling water does not use antioxidants. The anti-oxidation time is short, and oxidation blackening will soon occur.

(3) Some old factories still use the annealing cylinder for annealing, which will also cause oxidation and blackening for the following reasons: first, the nuts of the annealing cylinder are not tightened, and there is air leakage after flushing carbon dioxide or high-purity nitrogen; Second, the temperature of the copper wire out of the cylinder is too high, exceeding 30 ℃; Third, the maintenance of wire drawing emulsion is not enough and the pH value is too low; These conditions are common in summer when the temperature is high. The emulsion will be lost if it is used continuously. When the temperature is high, the loss will be faster. If new crude oil is not supplemented in time, the fat content is very small. In addition, the temperature of the emulsion may exceed 45 ℃, which is easy to cause oxidation and blackening.

(4) another case is that because of the widespread use of high speed wire drawing at present, the speed is increased, the relative heat dissipation time is reduced, and the oxidation brings some space and time. Therefore, it is suggested that manufacturers pay more attention to the fat content of the emulsion, the proper use of temperature, pH value, etc. in the spring, the bacteria in the Yellow mildew season are fast propagating, and they can use bactericidal and mildew proof agents. Antioxidants can be used in summer to solve the problems of oxidation and blackening.

Technical Parameters

Machine Specs ZL250A04
Input wire range 2.60 mm - 3.00 mm
Output wire 0.40 mm - 1.60 mm
Drawing dies 21 pcs
Linear speed 1800 m/min
Machine direction Right hand operation or left hand
Main motor 55kW (AC)
Inverter Yaskawa, Japan
Pump power 2.2 kw
Size L2800 × W420 × H500 cm
Weight 8500 kgs

Note: For more details, please contact us. Thank you.


Details Picture



0.4 To 1.6 Mm Durable Intermediate Wire Drawing Machine Heavy Duty 1800M/Min 0



Download Center



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



0.4 To 1.6 Mm Durable Intermediate Wire Drawing Machine Heavy Duty 1800M/Min 1

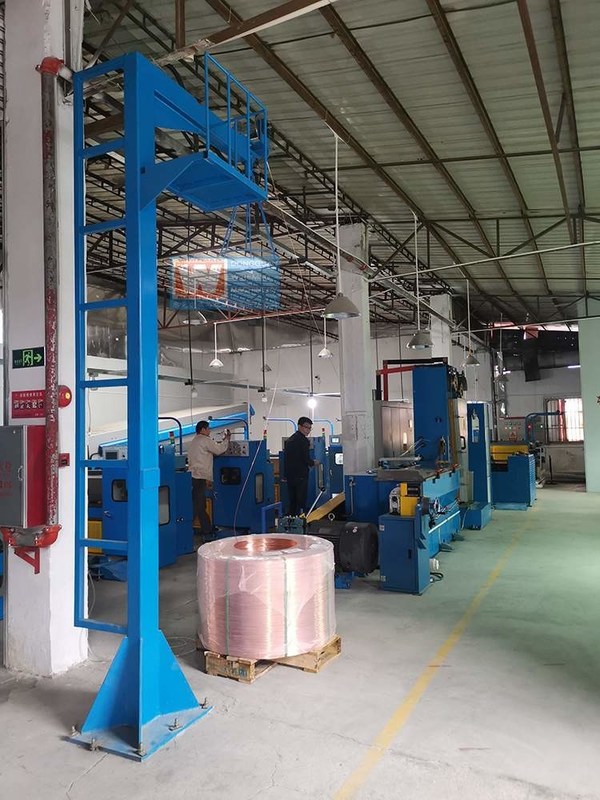

Our Workshop



0.4 To 1.6 Mm Durable Intermediate Wire Drawing Machine Heavy Duty 1800M/Min 20.4 To 1.6 Mm Durable Intermediate Wire Drawing Machine Heavy Duty 1800M/Min 30.4 To 1.6 Mm Durable Intermediate Wire Drawing Machine Heavy Duty 1800M/Min 4



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
