Copper Rod RBD Wire Drawing Machine Automatic 380V-480V AC Power

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: ZL250A03

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30 to 45 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50 Set/Month

Get Best Price
Product Details
High Light:

Copper RBD Wire Drawing Machine


Automatic RBD Wire Drawing Machine


480V Copper Rod Drawing Machine

Inlet Size:
3.0 Or 2.6 MM
Outlet Size:
0.4 To 1.6 MM
Die No.:
Die Size:
25 X 15 MM
Line Speed:
1800 M/MIN
Air Pressure:
0.6 Mpa
Air Volume:
1.0 M3/min
Power Supply:
380V-480V AC, 50/60Hz
Inlet Size:
3.0 Or 2.6 MM
Outlet Size:
0.4 To 1.6 MM
Die No.:
Die Size:
25 X 15 MM
Line Speed:
1800 M/MIN
Air Pressure:
0.6 Mpa
Air Volume:
1.0 M3/min
Power Supply:
380V-480V AC, 50/60Hz
Product Description

Reliable Supplier Intermediate RBD Wire Drawing Machine For CCA Wire




Wire drawing oil annealing is to heat the cold deformed metal to enhance the atomic activity force, promote the growth of crystal nucleus and form grains, so as to change its microstructure and properties. This change process has the following three stages:


1. Recover phase

When the heating temperature is not high (lower than the minimum recrystallization temperature), the atomic activity is still low. Although there is small movement, it can not cause obvious changes in the structure.


Because the atoms can move for a short distance, the lattice distortion is greatly reduced, and the internal stress is greatly reduced. However, the metal structure has no obvious change, so the mechanical properties have little change. This stage is called recovery stage, also known as internal stress relief annealing.


2. Recrystallization

When the cold deformed metal is heated to a higher temperature, due to the enhancement of atomic activity, some equiaxed small grains with different lattice orientation and less internal defects (the diameter in each direction is roughly the same) are formed.


These small grains continue to expand and grow into the surrounding deformation structure until the cold deformation structure of the metal disappears, re deforms into equiaxed crystallization, and reduces its stress at the same time. This process is called metal recrystallization.

After recrystallization, the lattice distortion and other defects and internal stress caused by cold deformation are completely eliminated, so the strength and hardness are reduced, the conductivity is increased, the plasticity and toughness are greatly improved, and the cold work hardening state is completely eliminated.


3. Aggregation recrystallization

When the recrystallization process of cold deformed metals is just completed, fine and uniform new equiaxed grains can be obtained. With the excessive increase of heating degree or the excessive extension of holding time, the recrystallized grains will swallow each other and grow up, making the grains coarsen and the mechanical properties deteriorate accordingly. This process is called aggregation recrystallization.


The mechanical properties of this coarse-grained metal also deteriorate accordingly. Therefore, too high heating temperature or too long holding time can cause metal "overburning" or "overheating". It leads to the reduction of strength, especially plasticity and impact toughness, and brittle fracture.


Technical Parameters


Machine Specs ZL250A03
Input wire size 2.6 mm - 3.0 mm
Output wire range 0.4 mm - 1.6 mm
Drawing dies 21 sets
Speed Max 1800 m/min
Machine direction Requested by customer
Take-up motor 15kW (two, AC)
Bearing NSK / SKF
Noise Less than 80db
Dimension L28000 × W4200 × H5000 mm
Weight 8500 kgs

Note: For more details, please contact us. Thank you.


Download Center


Manual of Machine Purchase


Packing, Shipping, Quality & Service, FAQ etc.pdf


Our Company


Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.


The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.


Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.


Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.


Copper Rod RBD Wire Drawing Machine Automatic 380V-480V AC Power 0

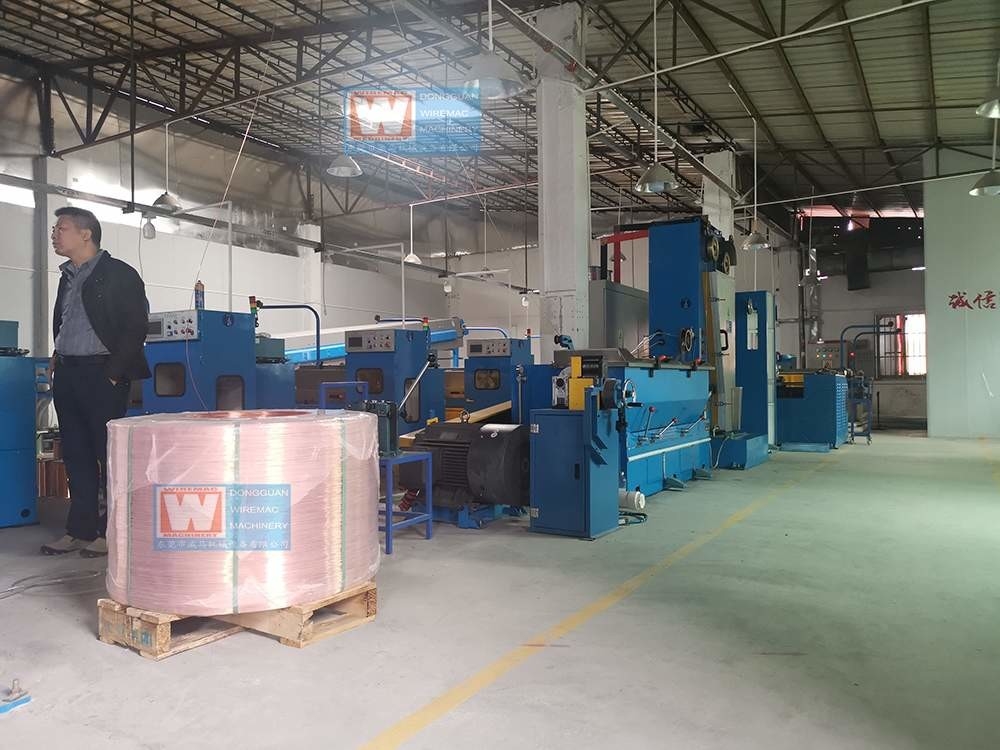

Our Workshop


Copper Rod RBD Wire Drawing Machine Automatic 380V-480V AC Power 1Copper Rod RBD Wire Drawing Machine Automatic 380V-480V AC Power 2Copper Rod RBD Wire Drawing Machine Automatic 380V-480V AC Power 3




1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.


2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.


4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.


5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.


12. Q: Can I use my own logo?
A: No problem, please inform us.
