Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: /
Model Number: 1860
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 20000-40000 Unit Price
Packaging Details: Machine dimension : L4383*W2056*H2181mm
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Dimension: |
L4383*W2056*H2181mm |
Traverse Height: |
80-150mm |
Coiler Max.OD: |
Φ600mm |
Arm Holding Way: |
By Servo |
Film Material: |
PVC/PE |
Dimension: |
L4383*W2056*H2181mm |
Traverse Height: |
80-150mm |
Coiler Max.OD: |
Φ600mm |
Arm Holding Way: |
By Servo |
Film Material: |
PVC/PE |

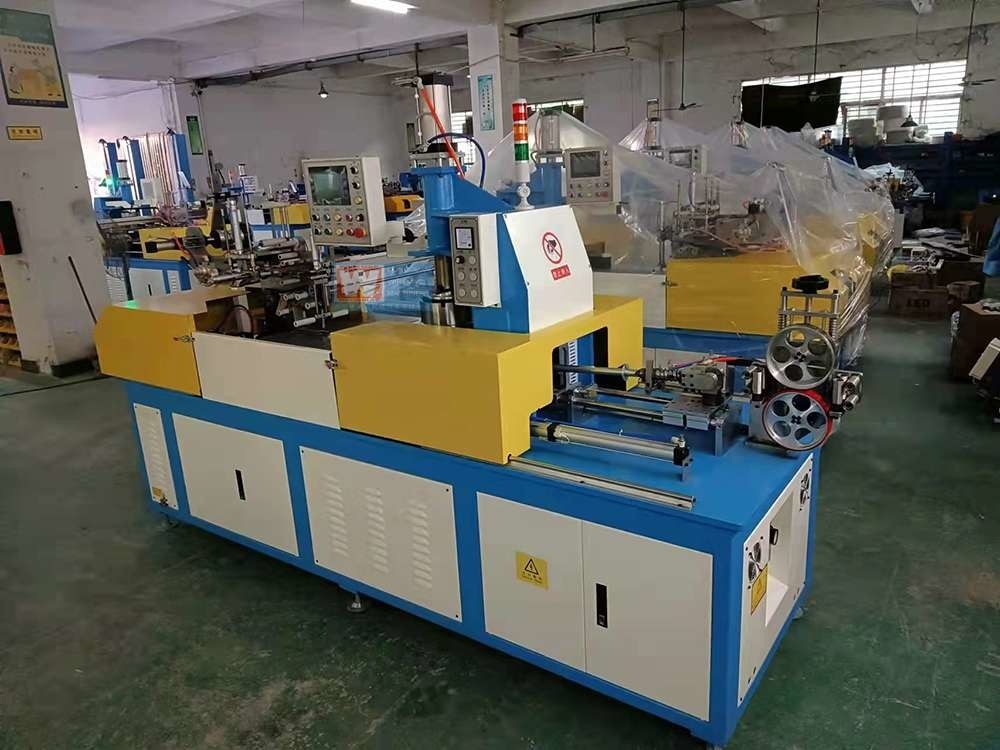

Efficiency Automatic Wire Winding Coiling Machine For Wires And Cables,Wire Wrapping Machine
Application:
It is suitable for coiling,packaging and labeling of wires
specification:
1.Traverse high:80-150mm
2.Coiler Max.OD:Φ600mm
3.Film loading way:Pneumatic champing
4.Film material:PVC/PE
5.Film thickness:0.04mm-0.07mm
6.Film size:width60-75mm
7.Lable size:Width 50-70mm Length90-180mm
Feature:
1.High efficency,combined coiling&film wrapping,save labor cost.
2.The finished product are packed neatly,helping saves of BV wire.
3.The utilization of equipment is increased and the rewinding and package machines can be saved.
4.It can be aligned with the whole extrusion line or rewinding independently according to user's real situation.
Pls feel free to contact us for more details,pics and videos.
