Applicable Cable Diameter: |
3 - 8 MM |
Machine Speed: |
Max 260 M/min |
Outer Diameter Of Coiling: |
400 Mm X Height 50 -100 Mm |
Operation Direction: |
Right / Left |
Control Mode: |
PLC Control |
Motor: |
7.5HP × 4P AC Siemens Brand |
Air Pressure: |
5 - 7 Kg/cm³ |
Power Supply: |
AC 380V, 3-phase, 50Hz |
Applicable Cable Diameter: |
3 - 8 MM |
Machine Speed: |
Max 260 M/min |
Outer Diameter Of Coiling: |
400 Mm X Height 50 -100 Mm |
Operation Direction: |
Right / Left |
Control Mode: |
PLC Control |
Motor: |
7.5HP × 4P AC Siemens Brand |
Air Pressure: |
5 - 7 Kg/cm³ |
Power Supply: |
AC 380V, 3-phase, 50Hz |

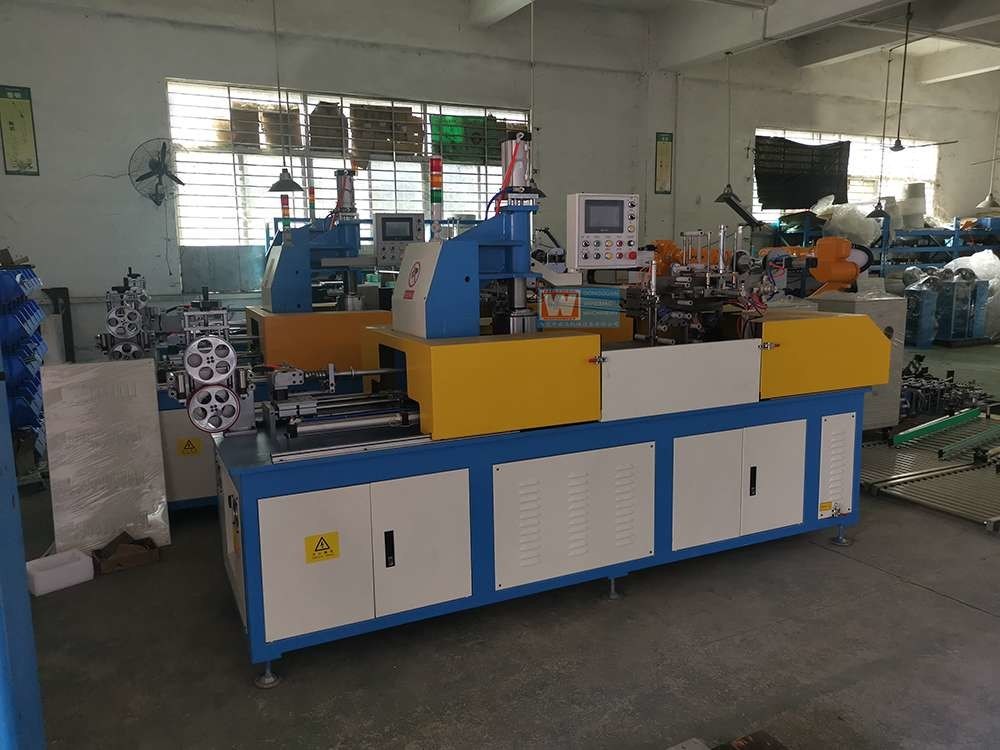

High Speed Automatic Cable Coiling Machine From China Supplier
Introduction
Mechanical composition details
1. Meter counting:
The tension of the upper and lower wheels is pressed, and the line length is calculated by using a precision encoder. The upper wheel of the meter wheel is sprayed with ceramic hardening treatment, and the lower wheel is coated with superior glue, and a one-way bearing is installed to prevent the reverse pumping of the cable.
2. Wire feeding part:
Conduit feeding, three groups of pneumatic continuous action, pneumatic clamping and wire feeding.
3. Door cutter:
Double cutter pneumatic automatic tangent, when the set line length is winded, the automatic tangent is completed.
4. Pan head and winding reel:
The horizontal winding is automatically opened and closed under the control of the air pressure propeller. When the set wire length winding is completed, the pan head will automatically stop winding and vertically retract and rise. There is no wire clamping head or sticking wire, and the coil is easy to demould.
5. Cabling system:
The flat cable system is completely controlled by the computer, driven by the servo motor, driven by the ball guide screw, and receives the dynamic signal of the main motor through the precision coder, so that the servo motor and the main horse can run at the same time, the action of the flat cable is more coordinated and the coil is more beautiful.
6. Wire holding transmission mechanism:
Servo torque holding arm, when the wire is wound, the wire holding mechanism will automatically hold the wire and transfer it to the packaging platform.
Technical Parameters
Item | Specifications | ||||||
Outer diameter of wrapping | 220mm~460mm | ||||||
Internal diameter of wrapping | 140mm (minimum) | ||||||
Height of wrapping | 50mm ~ 100mm | ||||||
Weight of each packaged coil/roll | maximum 35kg | ||||||
Size of PVC / PE / PP adhesive film | 0.03mm ~ 0.07mm thick x Width: 40mm ~ 60mm. | ||||||
Loading method of film roll | pneumatic clamping | ||||||
Operation panel | graphic operator interface | ||||||
Coiling meters | can be set |
For more specifications, please contact us, thank you.
