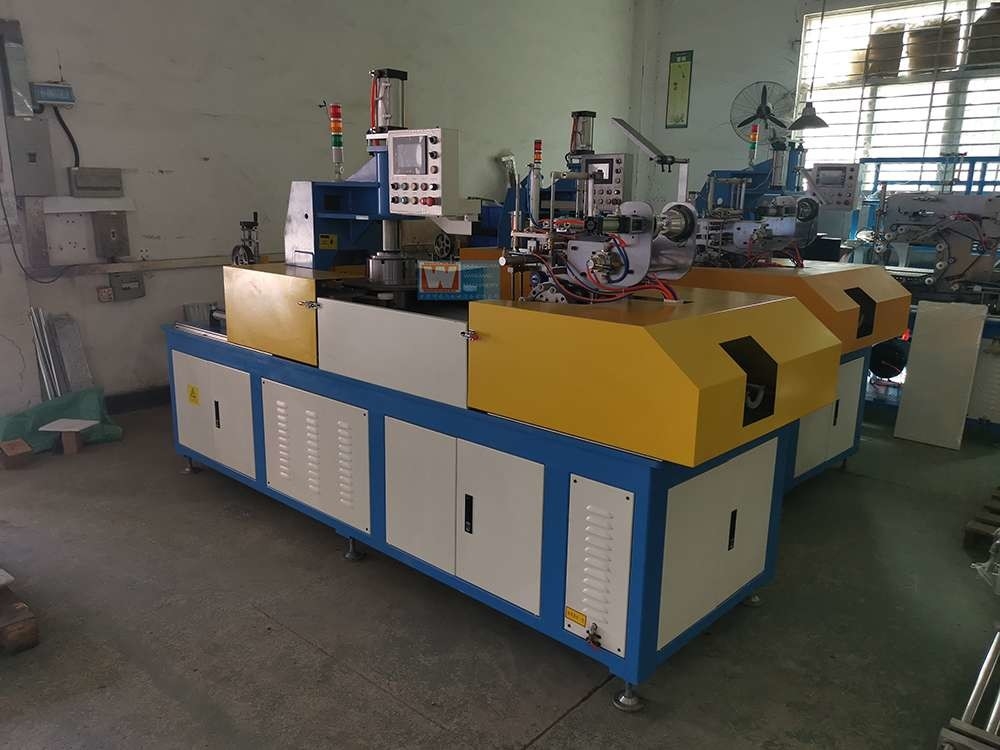

CE PLC Control Cable Coiling Machine Winder AC 380V Power Supply

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: WIREMC02

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Plywood Case

Delivery Time: 20-35 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Month

Get Best Price
Product Details
High Light:

CE Cable Coiling Machine

,

PLC Cable Coiling Machine

,

380V Cable Winder Machine

Applicable Cable Diameter:
3 - 8 MM
Machine Speed:
Max 260 M/min
Outer Diameter Of Coiling:
400 Mm X Height 50 -100 Mm
Operation Direction:
Right / Left
Control Mode:
PLC Control
Motor:
7.5HP × 4P AC Siemens Brand
Air Pressure:
5 - 7 Kg/cm³
Power Supply:
AC 380V, 3-phase, 50Hz
Applicable Cable Diameter:
3 - 8 MM
Machine Speed:
Max 260 M/min
Outer Diameter Of Coiling:
400 Mm X Height 50 -100 Mm
Operation Direction:
Right / Left
Control Mode:
PLC Control
Motor:
7.5HP × 4P AC Siemens Brand
Air Pressure:
5 - 7 Kg/cm³
Power Supply:
AC 380V, 3-phase, 50Hz
Product Description

Cable Wire Winding And Wrapping Packing Integrated Machine



Features



1. It can be supplied by the paying off machine or directly connected to the ejector.



2. The production volume of coil is about 5 times that of manual winding (taking 200m long coil as an example).



3. After winding, the automatic glue film winding machine can automatically label and package the coil.



4. After automatic coating, it is automatically sent to the conveyor belt by the wire pushing mechanism without manual operation.



5. The machine adopts servo motor alignment system, and the coil is neat and beautiful.



6. The panel is operated by screen touch man-machine interface, which is easy to operate.



7. The microcomputer memory can store 99 different coil specifications. When you need to change the product specifications, just read the stored specification data, and you can produce immediately without re entering.



8. This machine has the function of automatic error detection. When there is a problem, it will send an alarm to remind the operator.



Technical Parameters



Item Specifications
Outer diameter of wrapping  220mm~460mm
Internal diameter of wrapping 140mm (minimum)
Height of wrapping 50mm ~ 100mm
Weight of each packaged coil/roll maximum 35kg
Size of PVC / PE / PP adhesive film 0.03mm ~ 0.07mm thick x Width: 40mm ~ 60mm.
Loading method of film roll pneumatic clamping
Operation panel graphic operator interface
Coiling meters can be set



For more specifications, please contact us, thank you.



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



CE PLC Control Cable Coiling Machine Winder AC 380V Power Supply 0



Our Workshop



CE PLC Control Cable Coiling Machine Winder AC 380V Power Supply 1CE PLC Control Cable Coiling Machine Winder AC 380V Power Supply 2CE PLC Control Cable Coiling Machine Winder AC 380V Power Supply 3



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
