PLC Intermediate Wire Drawing Machine

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: ZL250A05

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30 - 50 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Month

Get Best Price
Product Details
High Light:

PLC Intermediate Wire Drawing Machine

,

2.6mm Intermediate Wire Drawing Machine

,

3.0mm Aluminum Wire Drawing Machine

Inlet Wire Diameter:
3.00 / 2.60 MM
Outlet Wire Diameter:
0.40 - 1.60 MM
Drawing Dies:
21 Dies
Capstan Size:
250 MM
Line Speed:
1800 M/MIN
Spool Size:
500 / 600 MM
Equipment Size:
L2800 X W420 X H500 CM
Power Supply:
410V AC, 50Hz
Inlet Wire Diameter:
3.00 / 2.60 MM
Outlet Wire Diameter:
0.40 - 1.60 MM
Drawing Dies:
21 Dies
Capstan Size:
250 MM
Line Speed:
1800 M/MIN
Spool Size:
500 / 600 MM
Equipment Size:
L2800 X W420 X H500 CM
Power Supply:
410V AC, 50Hz
Product Description

PLC Control Intermediate Wire Drawing Machine With Real Time Display

Introduction


A metal heat treatment process in which metal is slowly heated to a certain temperature, maintained for a sufficient time, and then cooled at an appropriate rate (usually slow cooling, sometimes controlled cooling). The purpose is to soften the materials or workpieces processed by casting, forging, rolling, welding or cutting, improve the plasticity and toughness, homogenize the chemical composition, remove the residual stress, or obtain the expected physical properties. There are many annealing processes with different purposes, such as recrystallization annealing, isothermal annealing, homogenization annealing, spheroidization annealing, stress removal annealing, recrystallization annealing, stabilization annealing, magnetic field annealing and so on.



One of the most important process parameters of annealing is the maximum heating temperature (annealing temperature). The selection of annealing heating temperature of most alloys is based on the phase diagram of the alloy system. For example, carbon steel is based on the iron carbon balance diagram. The annealing temperature of various steels (including carbon steel and alloy steel) is at a temperature above AC3, above AC1 or below of each steel according to the specific annealing purpose. The annealing temperature of various non-ferrous alloys is below the solidus temperature and above or below the solidus temperature of each alloy.


Technical Parameters



Machine Specs ZL250A05
Input wire range 2.60 mm - 3.00 mm
Output wire 0.40 mm - 1.60 mm
Drawing dies 21 pcs
Operation speed Max 1800 m/min
Machine direction Right hand or left hand
Material Cast iron & stainless steel
Electrical switches Schneider, France
Capacity of accumulator 3 m
Equipment dimension L28 × W4.2 × H5 M
Equipment weight 8500 kgs

Note: For more details, please contact us. Thank you.


Details Picture

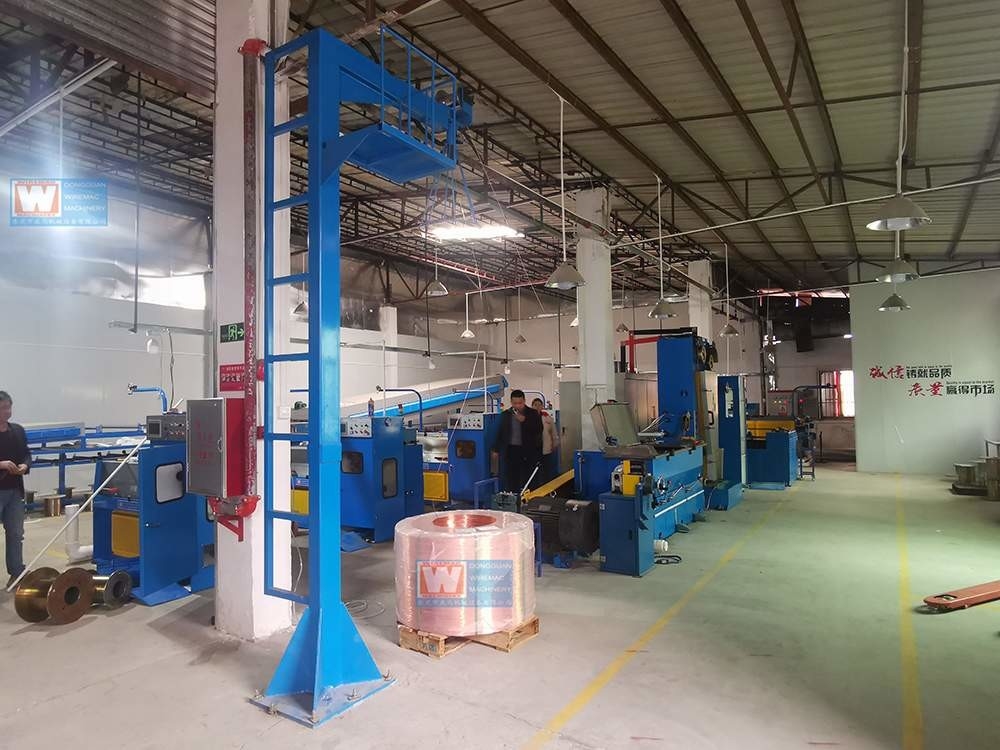

PLC Intermediate Wire Drawing Machine 0



Download Center



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



PLC Intermediate Wire Drawing Machine 1



Our Workshop



PLC Intermediate Wire Drawing Machine 2PLC Intermediate Wire Drawing Machine 3PLC Intermediate Wire Drawing Machine 4



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
