Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: /
Model Number: PY-Φ630mm
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD23000-30000 Unit Price
Packaging Details: Machine dimension:L3300mm*W1570mm*H1530mm
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Inlet Wire Dia: |
Φ0.16mm-Φ1.05mm |
Bunched Wire Size: |
Max 6.0mm2 |
Lay Length: |
11.46mm-62.67mm |
Operation Directions: |
“S” Or “Z” |
Take Up Bobbin Size: |
Φ630mm |
Max.rotating Speed: |
1800RPM |
Motor: |
10 HP |
Inlet Wire Dia: |
Φ0.16mm-Φ1.05mm |
Bunched Wire Size: |
Max 6.0mm2 |
Lay Length: |
11.46mm-62.67mm |
Operation Directions: |
“S” Or “Z” |
Take Up Bobbin Size: |
Φ630mm |
Max.rotating Speed: |
1800RPM |
Motor: |
10 HP |

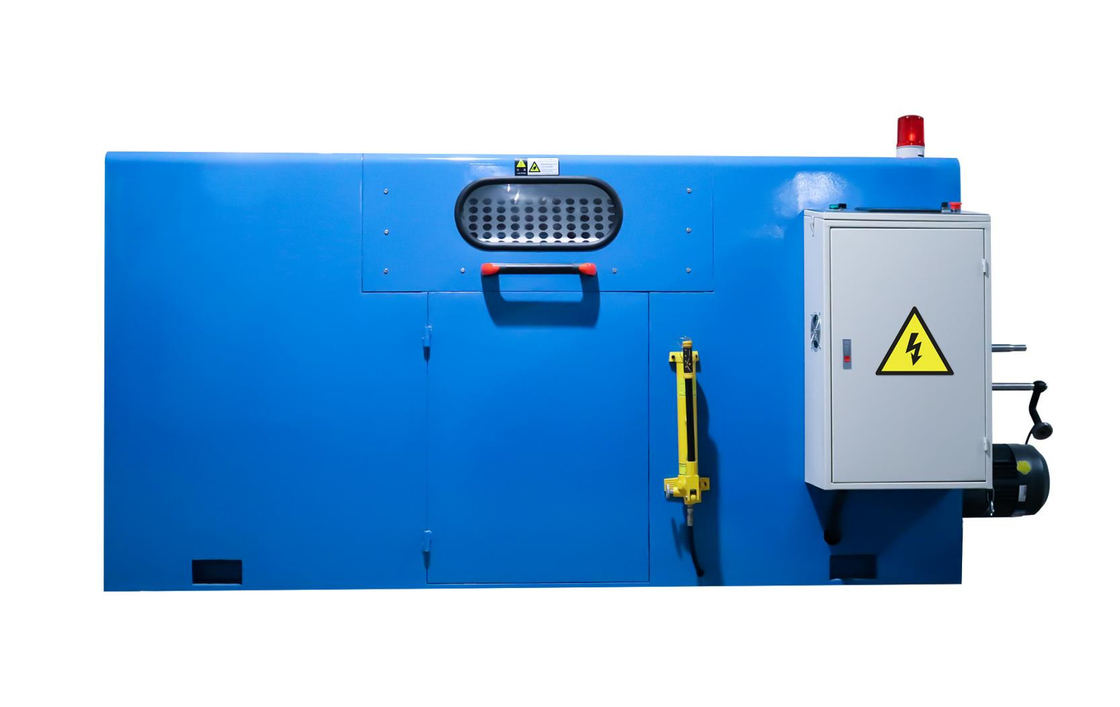

630mm High Speed Wire Twisting Bunching Machine For Copper Tinned Enameled And Nickel-Coated Wire
Application
Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Φ630mm PLC High speed bunching machine for copper wire core wire bunched cable making machine
Specification
1.Inlet wire dia:Φ0.16-Φ1.05mm
2.Bunched wire size:Max 6mm2
3.Lay length: 11.46mm-62.67mm(adjustable according to customer requirement)
4.Operation directions:“S” or “Z”
5.Take up spool size:Φ630mm
6.Max.rotating speed:Max.1800RPM
7.Motor:10HP
8.Tension control:take up tension is controlled by magnetic powder clutch,PLC follows up and regulates tension, constant tension
9.Operation way:push button
10.Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin
Pls feel free to contact us for more details,pics and videos.
