Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: B400PLC1
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 25-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 Set/Month
Single Wire Diameter: |
0.08 - 0.45 MM |
Stranding Section Area: |
0.05 - 1.5 MM2 |
Take Up Bobbin: |
400 MM |
Lay Of Length: |
4.08 - 31.50 MM |
Machine Speed: |
2500 RPM |
Main Motor: |
5.5 HP |
Machine Weight: |
1600 KG |
Machine Dimension: |
L2325 X W1200 X H1200 MM |
Single Wire Diameter: |
0.08 - 0.45 MM |
Stranding Section Area: |
0.05 - 1.5 MM2 |
Take Up Bobbin: |
400 MM |
Lay Of Length: |
4.08 - 31.50 MM |
Machine Speed: |
2500 RPM |
Main Motor: |
5.5 HP |
Machine Weight: |
1600 KG |
Machine Dimension: |
L2325 X W1200 X H1200 MM |

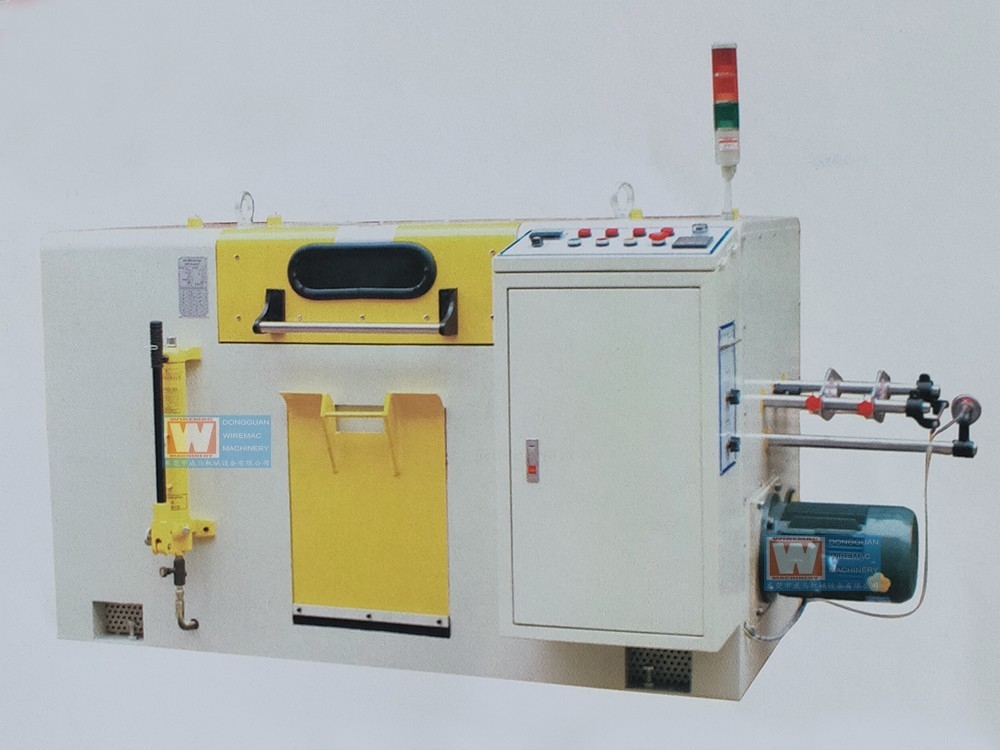

High Speed Enameled Wire Twisting Cable Stranding Machine
Introduction
The utility model discloses a high-speed stranding machine in the technical field of stranding machine, which comprises a base and a shell. The shell is arranged on the top of the base, a paying off cavity is arranged at the bottom of the front side of the shell, and a safety protection device matched with the paying off cavity is arranged at the front side of the shell. The safety protection device arranged by the utility model drives the driving sprocket through a micro servo motor, Drive the chain through the driving sprocket to make the driven sprocket rotate.
When it is necessary to go online and change the line, drive the installation barrel mechanism through the screw to make the installation frame up to the main body of the stranding machine. During operation, drive the installation barrel mechanism through the screw to make the installation frame down to the paying off cavity, and isolate the paying off cavity from the external area through the installation frame and glass door, so as to prevent the high-speed stranding machine from damaging the operator, Through the self-locking of the screw and the thread of the mounting barrel mechanism, the high fixing force is improved for the mounting frame, so that it will not move, and the safety of use is further improved
Technical Parameters
Item | Specification | ||||||
Traversing |
Light rod traverse |
||||||
Twist direction | S / Z | ||||||
Take up reel up & down | Electric hydraulic | ||||||
Brake system | Electromagnetic brake | ||||||
Tension control | Machinery friction or Magnetic power clutch | ||||||
Noise level | Below 75 d.b | ||||||
Application | Suitable for twisting multi-strand copper wire, cca wire, tin-plated wire etc. |
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
