Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: B1000PLC1
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 25-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 Set/Month
Single Wire Diameter: |
0.32 - 4.0 MM |
Stranding Section Area: |
Max 12 MM2 |
Take Up Bobbin: |
1000 MM |
Lay Of Length: |
48.10 - 155.90 MM |
Machine Speed: |
500 RPM |
Driving Motor: |
20HP AC |
Machine Weight: |
8000 KG |
Machine Dimension: |
L4473 X W2200 X H2600 MM |
Single Wire Diameter: |
0.32 - 4.0 MM |
Stranding Section Area: |
Max 12 MM2 |
Take Up Bobbin: |
1000 MM |
Lay Of Length: |
48.10 - 155.90 MM |
Machine Speed: |
500 RPM |
Driving Motor: |
20HP AC |
Machine Weight: |
8000 KG |
Machine Dimension: |
L4473 X W2200 X H2600 MM |

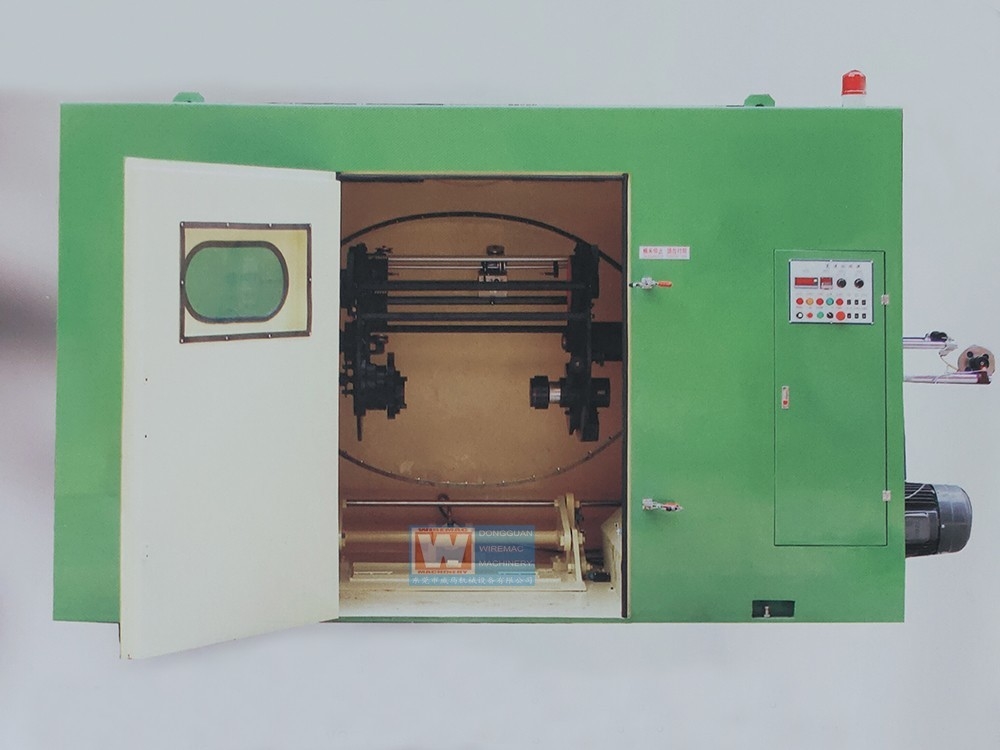

Hard Soft Conductor Wire Stranding Machine For PVC Cable
Introduction
Classification
According to the stranding mode, the stranding machine can generally be divided into single stranding machine, pair stranding machine, high-speed stranding machine, untwisting machine, cage stranding machine, frame stranding machine, tubular stranding machine and disc stranding machine.
Single stranding
There are three kinds of vertical single stranding, horizontal cantilever single winch and hanging frame single winch. It is mainly used in HDMI, DP, USB, CAT-7 and other high-frequency wires, electronic wires, data wires, electronic core wire pair stranding and multi strand stranding.
Counter stranding
Used for stranding high-frequency data cable, telephone line 5#, core wire pairing, etc
High speed stranding machine
It can be divided into automatic tension high-speed stranding machine and manual tension high-speed stranding machine. It is mainly used for stranding copper wires such as computer cable, earphone cable, electronic cable, power cable, telephone cable, automobile cable, network cable and PVC cable.
Untwister
It is applied to the untwisting (anti combustion) of the total payment of high-frequency digital cables to promote the staggered and balanced position of insulated core wires during the total payment, so as to overcome the uneven torsional stress during pairing, so that the high-speed pairing can still have uniform quality and accurate pitch. The four combustion untwisting is adopted, and the maximum speed can reach 600r P. M, good anti torsion effect and excellent performance.
High speed cantilever
It is applicable to the stranding of PE or PVC coated core wires such as control cable, communication cable, data cable and coaxial cable, and the central wrapping tape or side laying wrapping tape can be completed at one time. It is mainly used for stranding wire cores with high precision requirements.
High speed suspension frame stranding
It is applicable to the stranding of PE or PVC coated core wires such as control cables, communication cables and power lines, and the central wrapping tape or side laying wrapping tape can be completed at one time.
Technical Parameters
| Item | Specification | ||||||
| Spindle height |
900 mm |
||||||
| Stranding direction | Right or Left | ||||||
| Traverse unit | Rolling ring drive unit, winding pitch and breadth are adjustable | ||||||
| Braking system | Auto braking using the internal & external short line of the braker | ||||||
| Reel elevator | Manual | ||||||
| Coating | According to customer's requirement | ||||||
| Noise level | Below 80 d.b | ||||||
| Application | Suitable for twisting multi-strand copper wire, cca wire, tin-plated wire etc. | ||||||
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
