Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: B300PLC1
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 25-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 Set/Month
Single Wire Diameter: |
0.05 - 0.28 MM |
Stranding Section Area: |
0.137 - 0.45 MM2 |
Take Up Bobbin: |
300 MM |
Lay Of Length: |
1.34 - 12.5 MM |
Speed: |
3000 RPM |
Bearing: |
NSK, FAG, SKF |
Machine Weight: |
930 KG |
Machine Dimension: |
L2060 X W1090 X H1250 MM |
Single Wire Diameter: |
0.05 - 0.28 MM |
Stranding Section Area: |
0.137 - 0.45 MM2 |
Take Up Bobbin: |
300 MM |
Lay Of Length: |
1.34 - 12.5 MM |
Speed: |
3000 RPM |
Bearing: |
NSK, FAG, SKF |
Machine Weight: |
930 KG |
Machine Dimension: |
L2060 X W1090 X H1250 MM |

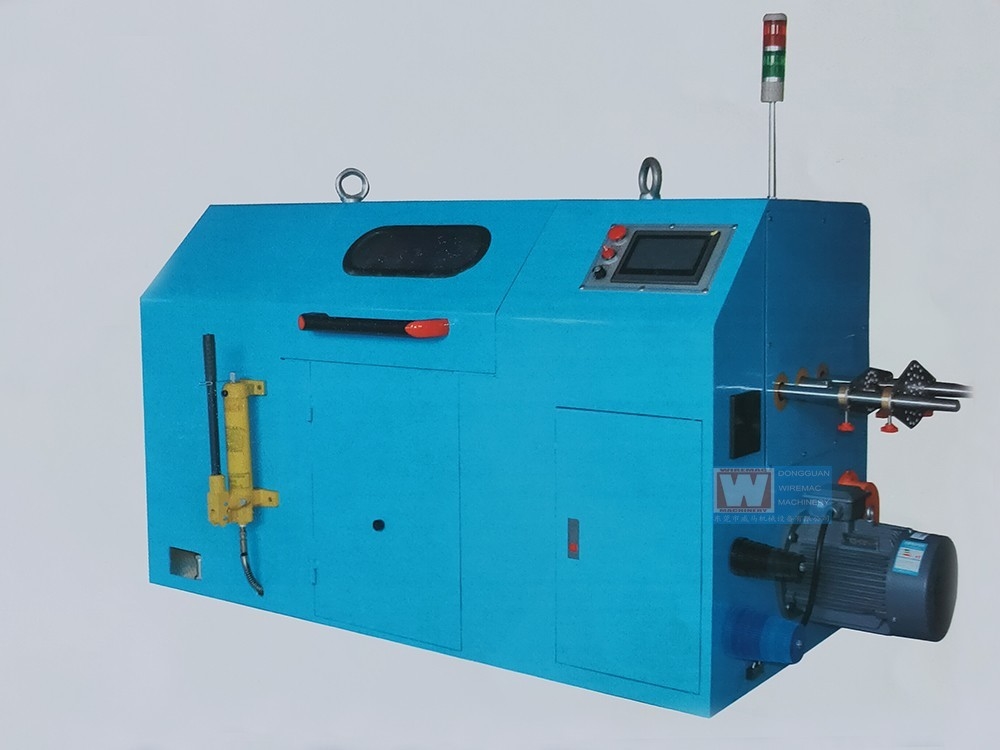

300 Double Twist Bunching Machine Wire Stranding Machine
Introduction
High speed stranding machine is a kind of stranding mechanical equipment which can be widely used in all kinds of soft / hard conductor wires. It can twist multiple single conductors into one strand to meet the process requirements of wire rod. According to the stranding mode, the stranding machine can generally be divided into single stranding machine, pair stranding machine, high-speed stranding machine, untwisting machine, cage stranding machine, frame stranding machine, tubular stranding machine and disc stranding machine.
Single Twist
There are three kinds of vertical single winch, horizontal cantilever single winch and hanging frame single winch. It is mainly used in HDMI, DP, USB, CAT-7 and other high-frequency wires, electronic wires, data wires, electronic core wire pair stranding and multi strand stranding.
Double Twist
Used for stranding high-frequency data cable, telephone line 5#, core wire pairing, etc
Technical Parameters
| Item | Specification | ||||||
| Main power |
3 HP |
||||||
| Twist direction | S / Z | ||||||
| Cable arrangement device | Light rod traverse | ||||||
| Brake system | Electromagnetic brake | ||||||
| Tension control | Magnetic power clutch | ||||||
| Noise level | Below 75 db | ||||||
| Take up bobbin lifting | Manual hydraulic | ||||||
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
