Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: /
Model Number: PY-Φ800mm
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD30000-43000 Unit Price
Packaging Details: Machine dimension:L3650mm*W1780mm*H1880mm
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Inlet Wire Dia: |
Φ0.29-Φ1.0mm |
Bunched Wire Size.: |
Max 2.5-16.0mm2 |
Pitch: |
22.51-152.32mm |
Max.rotating Speed: |
Max.1200RPM/min |
Motor: |
15HP |
Inlet Wire Dia: |
Φ0.29-Φ1.0mm |
Bunched Wire Size.: |
Max 2.5-16.0mm2 |
Pitch: |
22.51-152.32mm |
Max.rotating Speed: |
Max.1200RPM/min |
Motor: |
15HP |

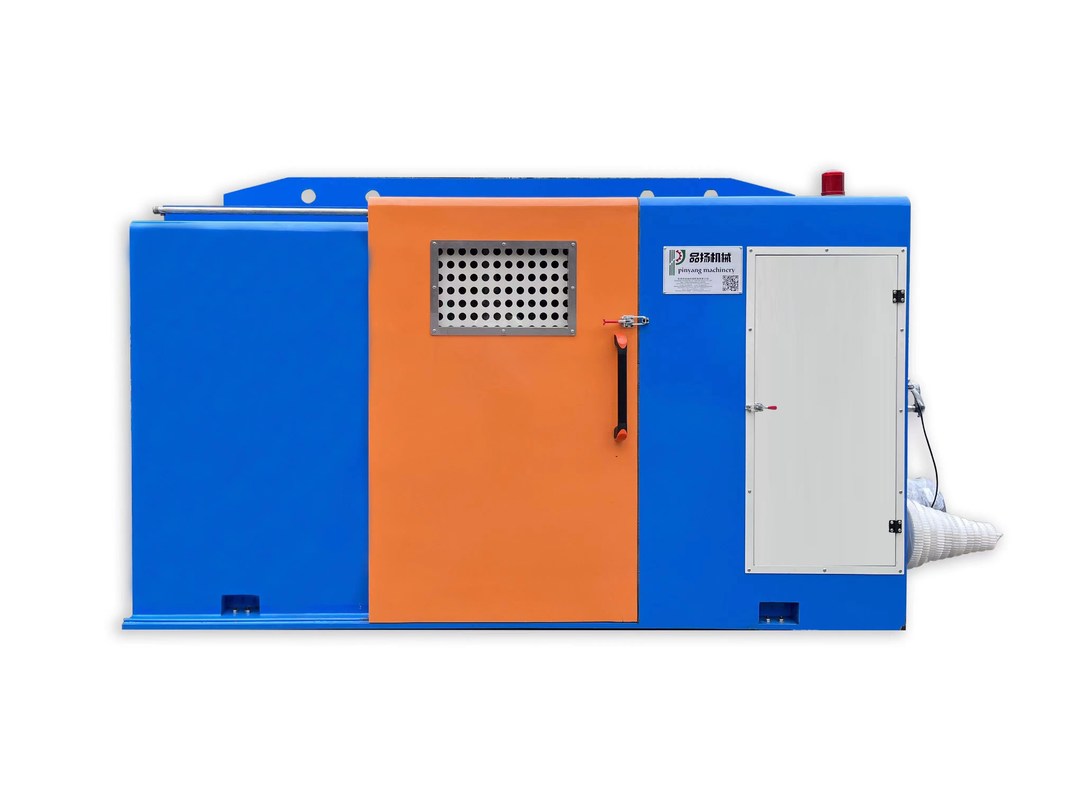

800mm High Speed Cable Bunching Machine With PLC System
Application
Apply for the twisting of above seven pcs of bare wires,tinned wires,sliver jacket wires and enameled wires etc.
Specification
1. Inlet wire dia:Φ0.29-Φ1.0mm
2. Bunched wire size:Max 2.5-16.0mm2
3. Lay length: 22.51-152.32mm(adjustable according to customer requirement)
4. Operation direction:“S” or “Z”
5. Take up spool size:Φ800mm
6. Max.rotating speed:Max.1200RPM/min(2400t/min)
7. Motor:15HP AC motor+frequency converter
8. Bobbin shifting:Manual hydraulic lifting
9. Traversing method:Rolling wire with ring drive units, row pitch and breadth are adjustable
10. Protection:Automatically brake/stop
1) Wire inside and outside is broken
2) The preset length is arrived
11. Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin
