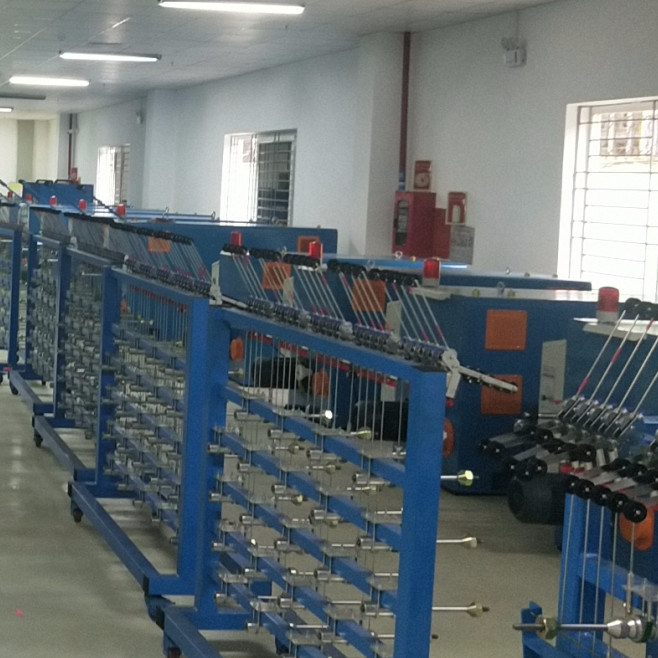

Circle Coil Bunched Twisting Mini Conductor Cable Stranding Machine 300mm PLC

Product Details

Place of Origin: /

Brand Name: Wiremac

Certification: /

Model Number: Φ300

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD5000-10000

Packaging Details: //

Delivery Time: 45 working days

Payment Terms: T/T

Supply Ability: 45 sets per month

Get Best Price
Product Details
High Light:

1.27mm Cable Stranding Machine

,

Circle Coil Cable Stranding Machine

,

300mm Cable Bunching Machine

Inlet Wire Dia:
Φ0.03mm-Φ0.10mm
Bunched Wire Size:
0.035-0.45mm²
Take Up Spool Size:
Φ300mm
Lay Length:
1.27mm-12.55mm
Speed:
Max.3000RPM/min
Inlet Wire Dia:
Φ0.03mm-Φ0.10mm
Bunched Wire Size:
0.035-0.45mm²
Take Up Spool Size:
Φ300mm
Lay Length:
1.27mm-12.55mm
Speed:
Max.3000RPM/min
Product Description

It is suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Apply for the twisting of above seven pcs of bare wires,tinned wires,sliver jacket wires and enameled wires...



Specifications

1. Inlet wire dia:Φ0.03mm-Φ0.10mm

2. Bunched wire size:0.035-0.45mm²

3. Lay length: 1.27mm-12.55mm(adjustable according to customer requirement)

4. Operation direction:“S” or “Z”

5. Take up spool size:Φ300mm

6. Max.rotating speed:Max.3000RPM/min

7. Motor:3HP AC motor+frequency converter

8. Tension control:Taking up tension is controlled by magnetic powder clutch,PLC follows up and regulates tension, constant tension

9. Protection:Automatically brake/stop

1)Wire inside and outside is broken

2) The preset length is arrived

10. Brake mode:Electromagnetic brake

11. Traversing method:Rolling wire with ring drive units, row pitch and breadth are adjustable

12.Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin
