Product Details
Place of Origin: Dongguan,China
Brand Name: Wiremac
Certification: /
Model Number: Φ300
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD5000-10000 Unit Price
Packaging Details: /
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 40 sets per month
Inlet Wire Dia: |
Φ0.03mm-Φ0.10mm |
Bunched Wire Size: |
0.035-0.45mm² |
Pitch.: |
1.27mm-12.55mm |
Rotating Speed: |
Max.3000RPM/min |
Factory Location: |
Dongguan,China |
Inlet Wire Dia: |
Φ0.03mm-Φ0.10mm |
Bunched Wire Size: |
0.035-0.45mm² |
Pitch.: |
1.27mm-12.55mm |
Rotating Speed: |
Max.3000RPM/min |
Factory Location: |
Dongguan,China |

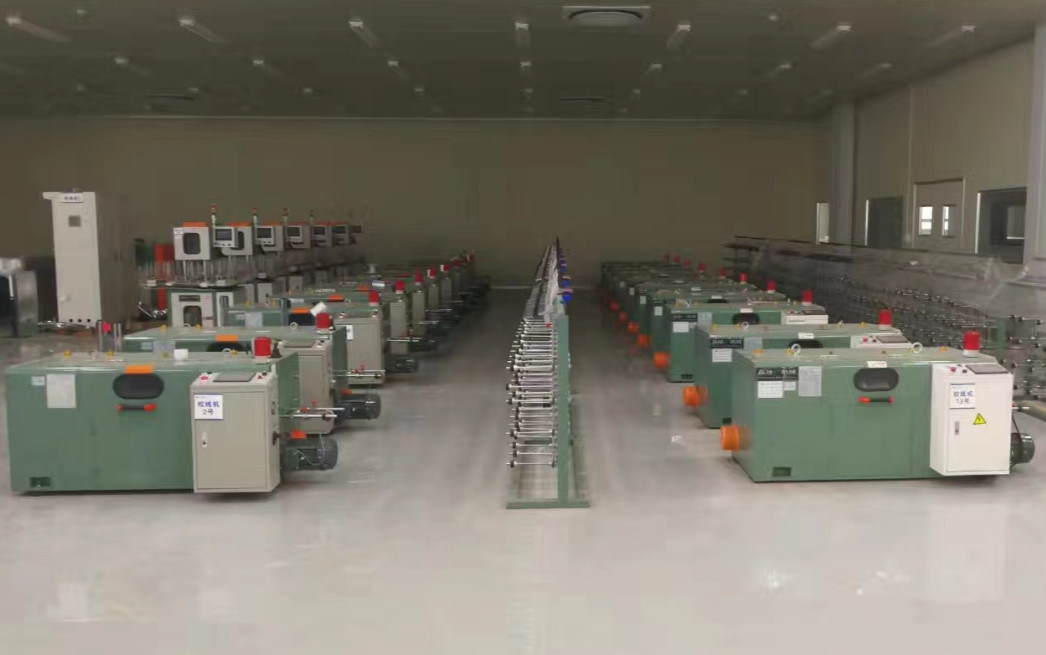

300mm PLC High Speed Buncher
Application
Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Apply for the twisting of above seven pcs of bare wires,tinned wires,sliver jacket wires and enameled wires...
Specification
1. Inlet wire dia:Φ0.03mm-Φ0.10mm
2. Bunched wire size:0.035-0.45mm²
3. Lay length: 1.27mm-12.55mm(adjustable according to customer requirement)
4. Operation direction:“S” or “Z”
5. Take up spool size:Φ300mm
6. Max.rotating speed:Max.3000RPM/min
7. Motor:3HP AC motor+frequency converter
8. Tension control:Taking up tension is controlled by magnetic powder clutch,PLC follows up and regulates tension, constant tension
9. Protection:Automatically brake/stop
1) Wire inside and outside is broken
2) The preset length is arrived
10. Brake mode:Electromagnetic brake
11. Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin
