Home > products > Cable Stranding Machine > Φ800mm High speed bunching machine high quality flyer bow stranding machines steel bobbin building wire making equipment

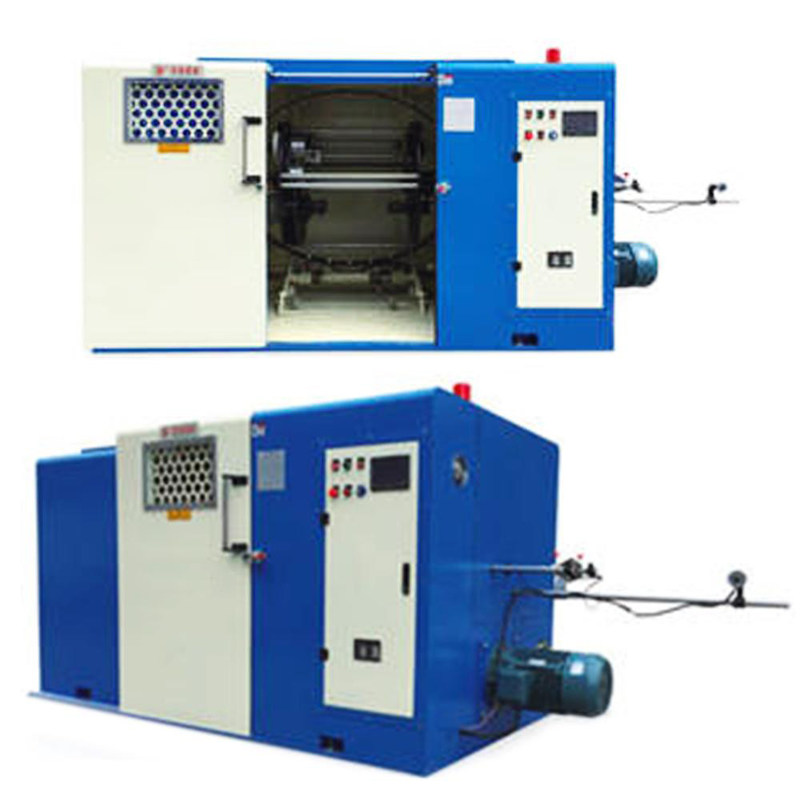

Φ800mm High speed bunching machine high quality flyer bow stranding machines steel bobbin building wire making equipment

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: /

Model Number: PY-Φ800mm

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD27000-40000 Unit Price

Packaging Details: Machine dimension:L3650mm*W1780mm*H1880mm

Delivery Time: 45 working days

Payment Terms: T/T

Supply Ability: 30 sets per month

Get Best Price
Product Details
High Light:
Inlet Cable Diameter:
Φ0.29-Φ1.0mm
Twisted Wire Size:
Max 2.5-16.0mm2
Pitch.:
22.51-152.32mm
Operation Direction:
“S”/“Z”
Take Up Spool Size:
Φ800mm
Max.rotating Speed:
Max.1200RPM/min
Motor.:
15HP
Warranty:
One Year
Inlet Cable Diameter:
Φ0.29-Φ1.0mm
Twisted Wire Size:
Max 2.5-16.0mm2
Pitch.:
22.51-152.32mm
Operation Direction:
“S”/“Z”
Take Up Spool Size:
Φ800mm
Max.rotating Speed:
Max.1200RPM/min
Motor.:
15HP
Warranty:
One Year
Product Description

Φ800mm High speed bunching machine high quality flyer bow stranding machines steel bobbin building wire making equipment

Application

Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.



Φ800mm High speed bunching machine high quality flyer bow stranding machines steel bobbin building wire making equipment

Specification

1.Inlet wire dia:Φ0.29-Φ1.0mm

2. Bunched wire size:Max 2.5-16.0mm2

3. Lay length: 22.51-152.32mm(adjustable according to customer requirement)

4.Operation direction:“S” or “Z”

5. Take up spool size:Φ800mm

Φ800mm High speed bunching machine high quality flyer bow stranding machines steel bobbin building wire making equipment

6. Max.rotating speed:Max.1200RPM/min(2400t/min)

7.Motor:15HP AC motor+frequency converter

8. Tension control:Mechanism friction

9. Brake mode:Electromagnetic brake

10. Operation type:push button

Φ800mm High speed bunching machine high quality flyer bow stranding machines steel bobbin building wire making equipment

11. Bobbin shifting:Manual hydraulic lifting

12. Traversing method:Rolling wire with ring drive units, row pitch and breadth are adjustable

13. Protection:Automatically brake/stop

1) Wire inside and outside is broken

2) The preset length is arrived

Φ800mm High speed bunching machine high quality flyer bow stranding machines steel bobbin building wire making equipment
