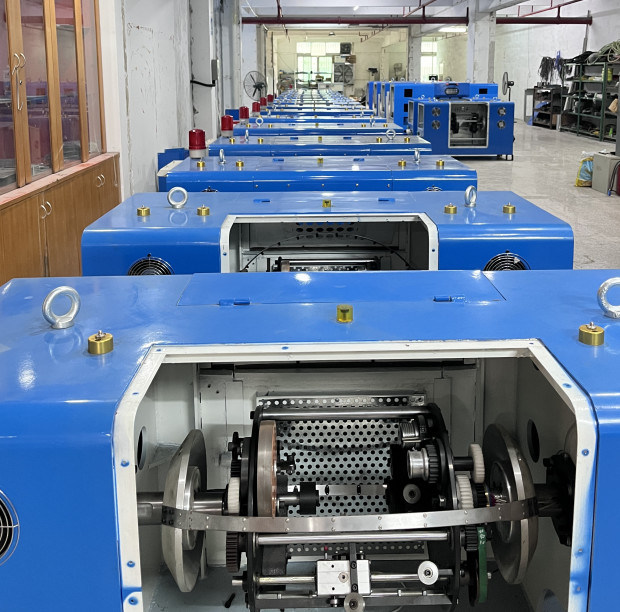

Φ300mm PLC high speed bunching machine copper wire twisting stranding for data cable making twisting equipement twister

Φ300mm PLC high speed bunching machine copper wire twisting stranding for data cable making twisting equipement twister

Application

Suitable for copper wire stranding of Power cable,Network cable,Automatic cable,Electric wire,Date cable,Earphone cords...

Φ300mm PLC high speed bunching machine copper wire twisting stranding for data cable making twisting equipement twister

Specification

1.Inlet wire diameter:Φ0.03mm-Φ0.10mm

2.Bunched kablo size:0.035-0.45mm²

3.Lay length: 1.27mm-12.55mm(adjustable according to customer requirement)

4.Operation direction:“S” or “Z”

5.Take up spool size:Φ300mm

Φ300mm PLC high speed bunching machine copper wire twisting stranding for data cable making twisting equipement twister

6.Max.rotating speed:Max.3000RPM/min

7.Motor:3HP AC motor+frequency converter

8.Tension control:Taking up tension is controlled by magnetic powder clutch,PLC follow up and regulate tension, constant tension

Φ300mm PLC high speed bunching machine copper wire twisting stranding for data cable making twisting equipement twister

9.Protection:Automatically brake/stop

1)Wire inside and outside are broken

2) The preset meter length is arrived

10.Brake mode:Electromagnetic brake

11.Traversing method:Rolling cable with ring drive units, row pitch and breadth are adjustable

12.Operation type:push button

13.Bobbin shifting:Use manual hydraulic lifting

14.Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin

Contact us for more machine details,pics and videos if you are interested in.
