Φ500mm PLC high speed bunching machine factory direct sell high quality double twisting cable manufactuering supplier

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: /

Model Number: PY-Φ500mm

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD10000-20000 Unit Price

Packaging Details: Machine dimension:L2600mm*W1300mm*H1480mm

Delivery Time: 45 working days

Payment Terms: T/T

Supply Ability: 50 sets per month

Get Best Price
Product Details
High Light:
Inlet Wire Dia.:
Φ0.08-Φ0.45
Bunched Wire Size:
Max. 2.5mm2
Take Up Spool Size:
Φ500
Max.rotating Speed:
2200RPM/minute
Motor:
5HP
Factory Location:
Dongguan City,China
Inlet Wire Dia.:
Φ0.08-Φ0.45
Bunched Wire Size:
Max. 2.5mm2
Take Up Spool Size:
Φ500
Max.rotating Speed:
2200RPM/minute
Motor:
5HP
Factory Location:
Dongguan City,China
Product Description

Φ500mm PLC high speed bunching machine factory direct sell high quality double twisting cable manufactuering supplier

Application

Suitable for the twisting of above seven pcs of bare wires,tinned wires,sliver jacket wires and enameled wires etc

Specification

1.Inlet wire dia:Φ0.08-Φ0.45mm

2.Bunched wire size:Max 2.5mm2

3.Lay length: 4.24-46(adjustable according to customer requirement)

4.Operation direction:“S” or “Z”

5.Take up spool size:Φ500mm

6.Max.rotating speed:Max.2200RPM/minute

7.Motor:5HP AC motor+frequency converter

8.Tension control:take up tension is controlled by magnetic powder clutch,PLC follows up and regulates tension, constant tension

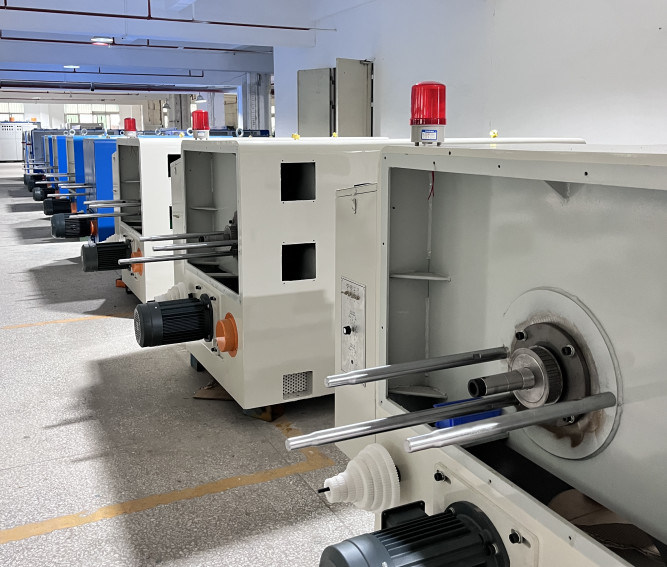

Φ500mm PLC high speed bunching machine factory direct sell high quality double twisting cable manufactuering suppliers

9.Brake mode:Electromagnetic brake

10.Operation type:push button

11.Bobbin shifting:Manual hydraulic lifting

12.Traversing method:Rolling wire with ring drive units, row pitch and breadth are adjustable

13.Protection:Automatically brakes and stops

1) Wire inside and outside is broken

2) The preset length is arrived

Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, to ensure constant tension from empty to full bobbin



Contact us for more machine details,pics and videos if you are interested in.
