Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: /
Model Number: PY-Φ800mm
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD27000-40000 Unit Price
Packaging Details: Machine dimension:L3650mm*W1780mm*H1880mm
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Inlet Wire Dia.: |
Φ0.29-Φ1.0mm. |
Bunched Wire Size.: |
Max 2.5-16.0mm2. |
Lay Length.: |
22.51-152.32mm. |
Operation Direction.: |
“S” Or “Z”. |
Take Up Spool Size.: |
Φ800mm. |
Max.rotating Speed.: |
Max.1200RPM/min. |
Motor.: |
15HP. |
Inlet Wire Dia.: |
Φ0.29-Φ1.0mm. |
Bunched Wire Size.: |
Max 2.5-16.0mm2. |
Lay Length.: |
22.51-152.32mm. |
Operation Direction.: |
“S” Or “Z”. |
Take Up Spool Size.: |
Φ800mm. |
Max.rotating Speed.: |
Max.1200RPM/min. |
Motor.: |
15HP. |
Application
Apply for the twisting of above seven pcs of bare wires,tinned wires,sliver jacket wires and enameled wires etc.Φ800mm High speed bunching machine double-twist flyer bow stranding machinery power cable core wire twisting equipment
Specification
1.Inlet wire dia:Φ0.29-Φ1.0
2. Bunched wire size:Max 2.5-16.0
3. Lay length: 22.51-152.32(adjustable according to customer requirement)
4.Operation direction:“S” or “Z”
5. Take up spool size:Φ800

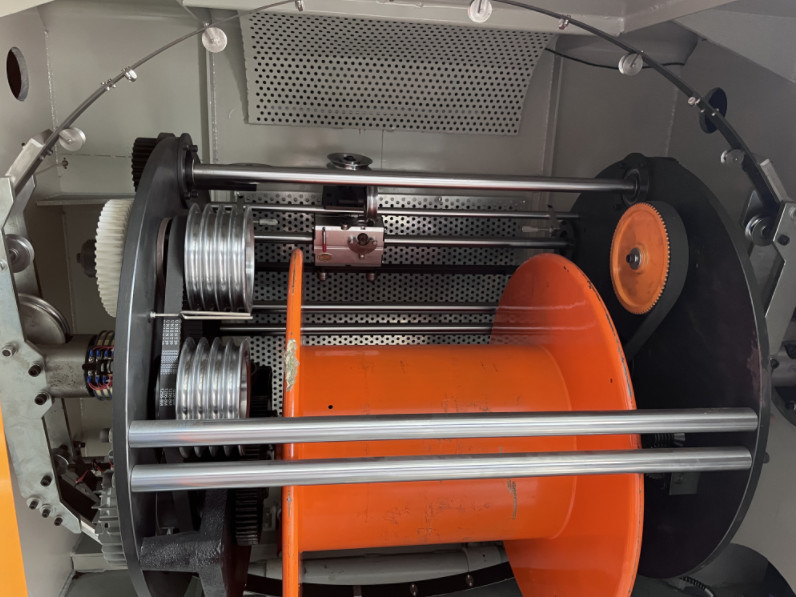

Φ800mm High speed bunching machine double-twist flyer bow bunching machinery power cable core wire twisting equipment
6. Max.rotating speed:Max.1200RPM/min(2400t/minute)
7.Motor:15HP AC motor+frequency converter
8. Tension control:Mechanism friction
Φ800mm High speeds bunching machines double-twist flyer bow stranding machinery power cable core wire twisting equipment
9. Brake mode:Electromagnetic brake
10. Operation type:push button
11. Bobbin shifting:By Manual hydraulic lifting
12. Traversing method:Rolling wire with ring drive units, row pitch & breadth are adjustable
