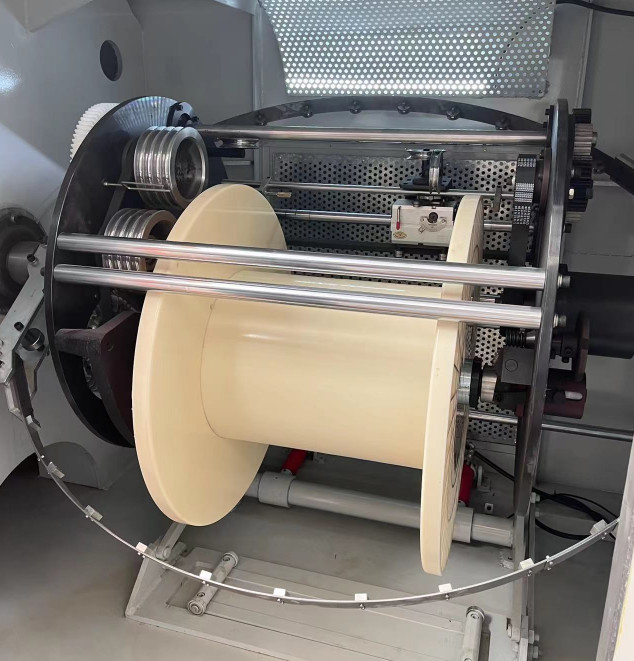

Φ800mm High speed bunching machine copper wire buncher double twist buncher pair twisting buncher core wire strander

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: /

Model Number: PY-Φ800mm

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD27000-40000 Unit Price

Packaging Details: Machine dimension:L3650mm*W1780mm*H1880mm

Delivery Time: 45 working days

Payment Terms: T/T

Supply Ability: 30 sets per month

Get Best Price
Product Details
High Light:
Inlet Wire Diameter.:
Φ0.29-Φ1.0mm.
After Bunched Wire Size:
Max 2.5-16.0mm2.
Pitch.:
22.51-152.32mm.
Operation Directions.:
“S”/“Z”.
Take Up Spool Size.:
Φ800mm..
Max.rotating Speed.:
1200RPM/minute.
Main Motor.:
15HP.
Warranty.:
One Year.
Inlet Wire Diameter.:
Φ0.29-Φ1.0mm.
After Bunched Wire Size:
Max 2.5-16.0mm2.
Pitch.:
22.51-152.32mm.
Operation Directions.:
“S”/“Z”.
Take Up Spool Size.:
Φ800mm..
Max.rotating Speed.:
1200RPM/minute.
Main Motor.:
15HP.
Warranty.:
One Year.
Product Description

Application

Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Φ800mm High speed bunching machine copper wire buncher double twist buncher pair twisting buncher core wire strander



Specification

1.Inlet wire diamteter:Φ0.29-Φ1.0mm

2. Bunched wire size:Max. 2.5-16.0mm2

3. Lay length: 22.51-152.32mm

Φ800mm High speed bunching machine copper wire buncher double twist buncher pair twisting buncher core wire strander

5. Take up spool diameter:Φ800mm

6. Rotating speed:Max.1200RPM/min(2400t/minute)

7.Motor:15HP AC motor+inverter

8. Tension control:By mechanism friction

9. Brake mode:Electromagnetic brake

10. Operation type:push button

11. Bobbin shifting:Manual hydraulic lift

12. Traversing method:Rolling wire with ring drive units, row pitch and breadth are adjustable

13. Protection:Automatically brake/stop

1) Wire inside and outside is broken

2) The preset length is arrived
