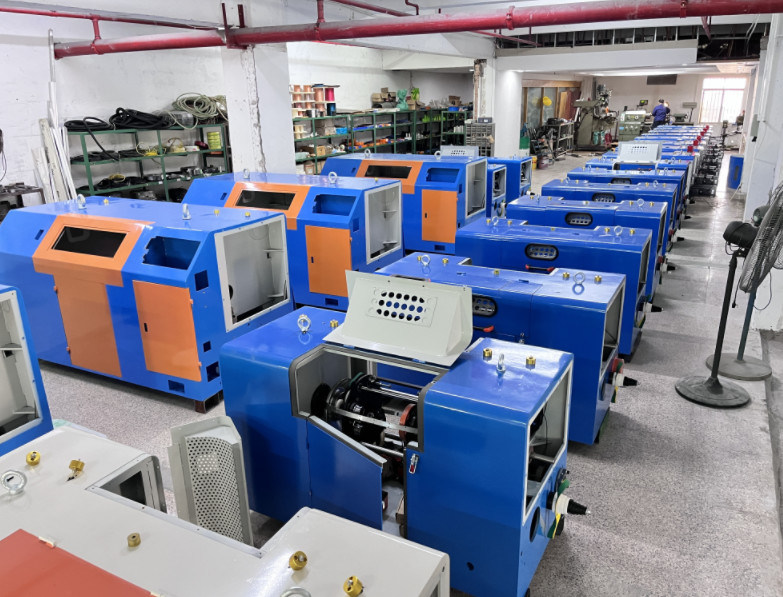

Φ300mm PLC high speed buncher of copper wire cable super fine wire stranding machine micro fine cable twister machinery

Application

Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Φ300mm PLC high speed buncher of copper wire cable super fine wire stranding machine micro fine cable twister machinery

Specification

1.Inlet wire dia:Φ0.03mm-Φ0.10mm

2.Bunched wire size:0.035-0.45mm²

3.Lay length: 1.27mm-12.55mm(adjustable according to customer requirement)

4.Operation direction:“S” or “Z”

5.Take up spool size:Φ300mm

6.Max.rotating speed:Max.3000RPM/min

7.Motor:3HP AC motor+frequency converter

8.Tension control:Taking up tension is controlled by magnetic powder clutch,PLC follows up and regulates tension, constant tension

9.Protection:Automatically brake/stop

1)Wire inside and outside is broken

2) The preset length is arrived

10.Brake mode:Electromagnetic brake

11.Traversing method:Rolling wire with ring drive units, row pitch and breadth are adjustable

12.Operation type:push button

13.Bobbin shifting:Manual hydraulic lifting

14.Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin

Contact us for more machine details,pics and videos if you are interested in.
