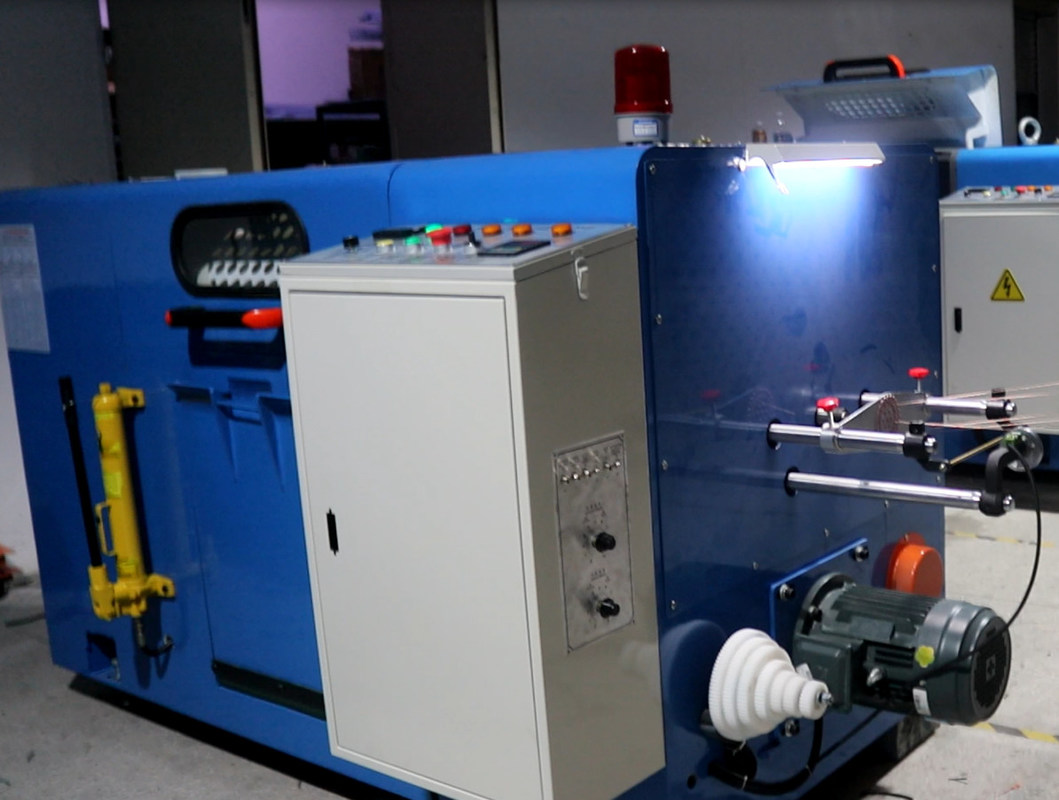

Φ500mm PLC high speed buncher wire double twist for electrical cable manufacturing twisting buncher equipment

Application

Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Φ500mm PLC high speed buncher wire double twist for electrical cable manufacturing twisting buncher equipment

Specification

1.Inlet wire dia:Φ0.08-Φ0.45mm

2.Bunched wire size:Max 2.5mm²

3.Pitch: 4.24mm-46mm(adjustable according to customer requirement)

4.Operation directions:“S” /“Z”

5.Take up spool size:Φ500mm

6.Max.rotating speed:Max.2200RPM per minute

7.Motor:5HP AC motor+frequency converter

8.Tension control:take up tension is controlled by magnetic powder clutch,PLC follows up and regulates tension, constant tension

9.Brake mode:Electromagnetic brake

10.Operation type:push button type

11.Bobbin shifting:Manual hydraulic lifting

12.Traverse method:Rolling wire with ring drive units, row pitch and breadth are adjustable

13.Protection method:Automatically brake/stop

1) Wire inside and outside is broken

2) The preset length is arrived

Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin

Contact us for more machine details,pics and videos if you are interested in.
