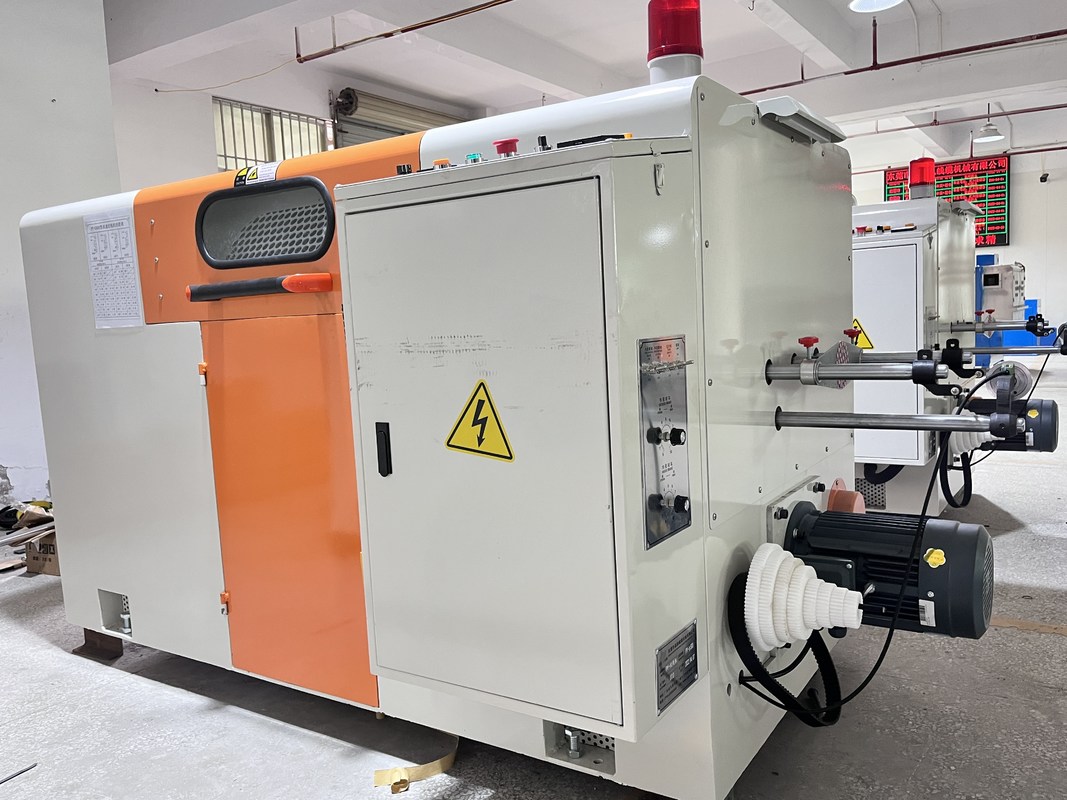

Φ500mm PLC high speed bunching machine factory direct seller automatic double wires stranding cable twisting machinery

Application

Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Φ500mm PLC high speed bunching machine factory direct seller automatic double wires stranding cable twisting machinery

Specification

1.Inlet wire dia:Φ0.08-Φ0.45mm

2.Bunched wire size:Max 2.5mm²

3.Lay length: 4.24-46mm(adjustable according to customer requirement)

4.Operation direction:“S” or “Z”

5.Take up spool size:Φ500mm

6.Max.rotating speed:Max.2200RPM/minute

7.Motor:5HP AC motor+frequency inverter

8.Tension control:take up tension is controlled by magnetic powder clutch,PLC follows up and regulates tension, constant tension

9.Brake mode:Electromagnetic brakes

10.Operation type:push button

11.Bobbin shifting:Manual hydraulic lifting

12.Traverse method:Rolling wire with ring drive units, row pitch and breadth are adjustable

13.Protection:Automatically brake and stop

1) Wire inside and outside is broken

2) The preset length is arrived

Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin

Contact us for more machine details,pics and videos if you are interested in.
