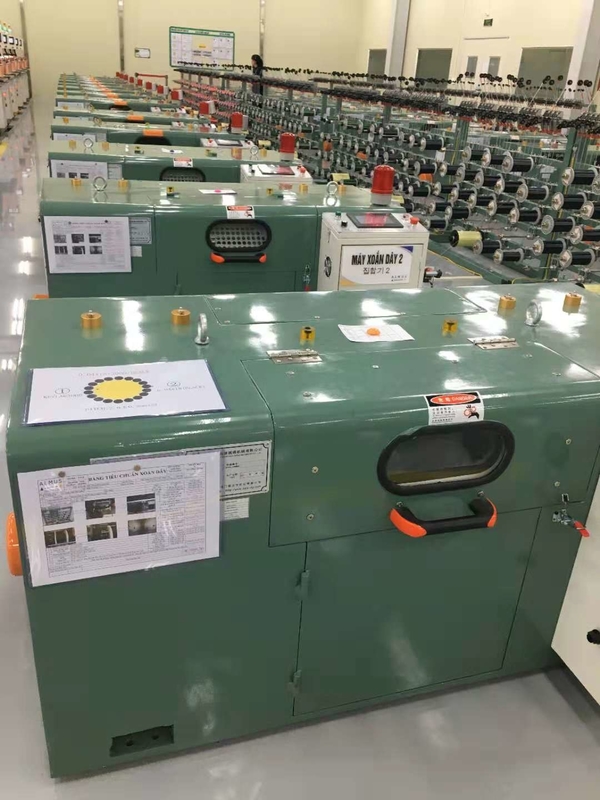

Φ300mm PLC high speed bunching machine for copper wire cable conductor making machine wire buncher

Application

Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Φ300mm PLC high speed bunching machine for copper wire cable conductor making machine wire buncher

Specification

1.Single copper wire diameter:Φ0.04mm-Φ0.28mm

2.After bunched wire size:0.035-1.0mm²

3.Lay length: 2.95-58.50mm(adjustable according to customer requirement)

4.Operation direction:“S” or “Z”

5.Take up spool sizes:Φ300mm

6.Max.rotating speed:Max.3000RPM

7.Motor:5HP AC motor+frequency inverter

8.Tension control:Taking up tension is controlled by magnetic powder clutch,PLC follows up and regulates tension, constant tension

9.Protection:Automatically brake/stop

1)Wire inside and outside is broken

2) When the preset meter length is arrived

10.Brake mode:Electromagnetic brake

11.Traversing method:Rolling wire with ring drive units, row pitch and breadth are adjustable

12.Operation type:push button

13.Bobbin shifting:Manual hydraulic lifting

14.Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin

Pls feel free to contact us for more details,pics and videos.
