Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: /
Model Number: PY-Φ500mm
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD10000-20000 Unit Price
Packaging Details: Machine dimension:L2600mm*W1300mm*H1480mm
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Inlet Wire Dia.: |
Φ0.08mm-Φ0.45mm |
Bunched Wire Size: |
Max 2.50mm2 |
Take Up Spool Size..: |
Φ500mm |
Rotating Speed.: |
Max.2200RPM/min |
Main Motor: |
5HP |
Color: |
Can Be Customized. |
Inlet Wire Dia.: |
Φ0.08mm-Φ0.45mm |
Bunched Wire Size: |
Max 2.50mm2 |
Take Up Spool Size..: |
Φ500mm |
Rotating Speed.: |
Max.2200RPM/min |
Main Motor: |
5HP |
Color: |
Can Be Customized. |
Application

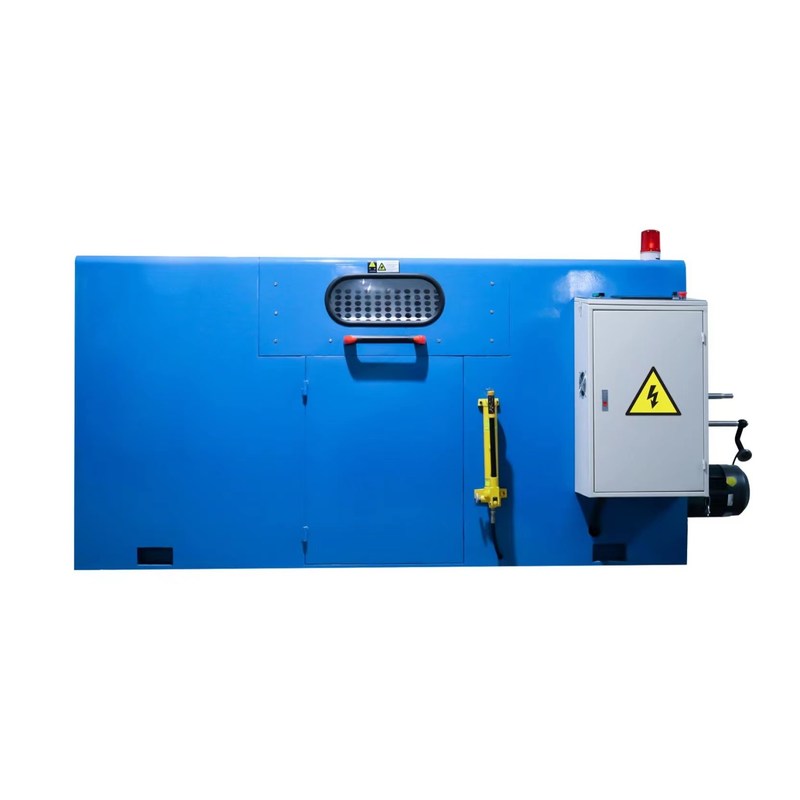

Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Φ500mm high speed bunching machine for copper wire with PLC system bunched cable conductor making machine
Specification
1.Inlet wire dia:Φ0.08-Φ0.45mm
2.Bunched wire size:Max 2.5mm2
3.Lay length: 4.24-46mm(adjustable according to customer requirement)
4.Operation direction:“S” or “Z”
5.Take up spool size:Φ500mm
6.Max.rotating speed:2200RPM/minute
7.Motor:5HP AC motor+frequency inverter
8.Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin
Pls feel free to contact us for more details,pics and videos.
